The Profibus–Interface has two Jumpers X3 and X4, as shown in Figure 8-9.
Jumpers X3 and X4 are set at the factory so that the terminating resistors are
switched-out.
Both jumpers must always be set for the same position.

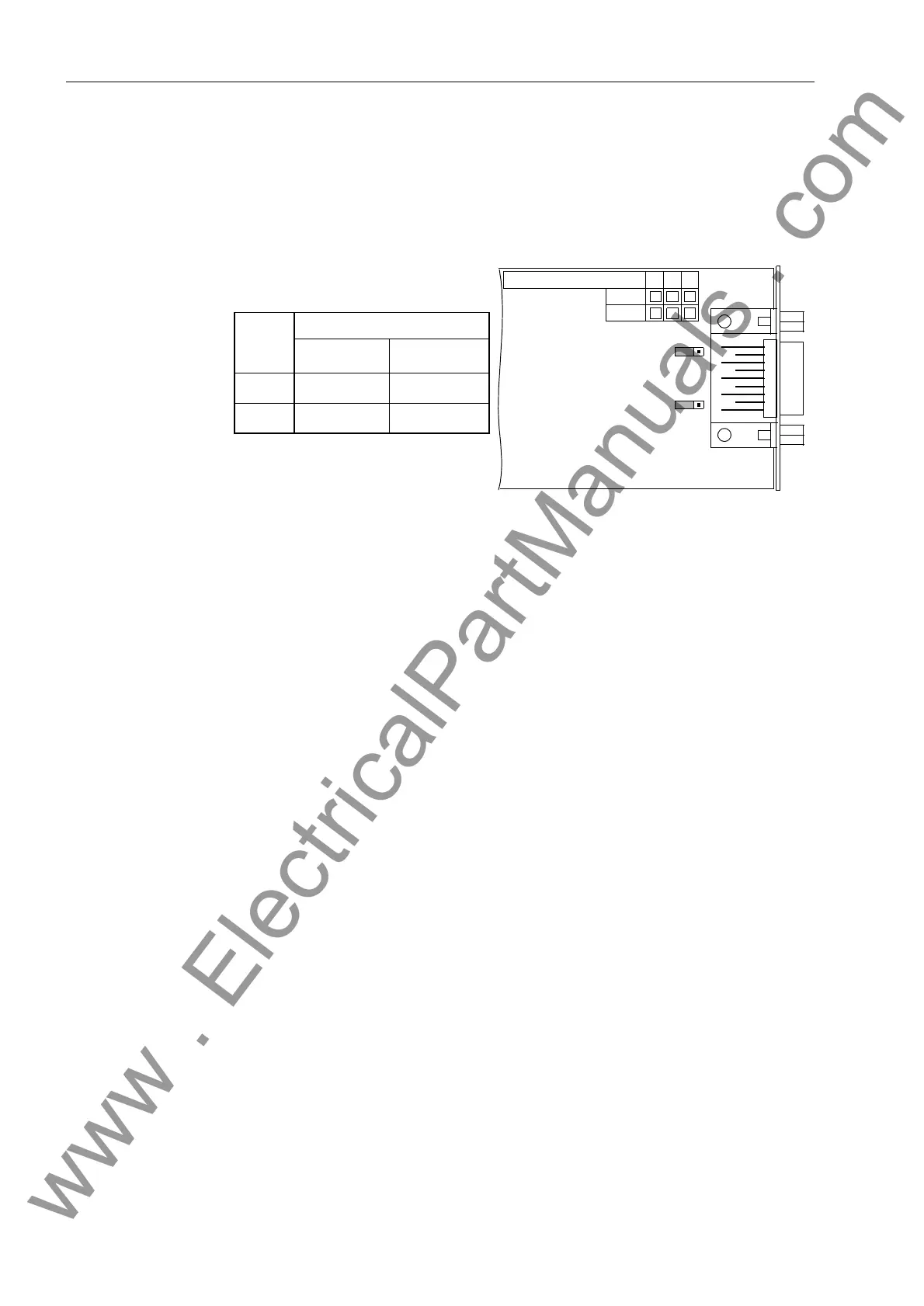

Figure 8-9 Location of the Jumpers for Configuring the Profibus–Interface Terminating
Resistors
To reassemble
the device:
o Carefully insert the boards into the case. The installation locations of the boards are
shown in Figure 8-4. For the model of the device designed for surface-mounting, use
the metal lever to insert the CPU board. The installation is easier with the lever.
o Insert and tighten the screw-posts for the D-subminiature connector at location "A" on
the rear of the device. This task does not apply if the device is for surface mounting.
o Insert and tighten the screws for the communication interfaces at locations "B" and "C"
on the back panel of the device. This task is not necessary if the device is for surface-
mounting.
o By first attaching to the I/O board, connect the ribbon cable between the I/O board and
the CPU board. Be especially careful not to bend any of the connector pins! Do not
use any force! Be sure that the plug connectors latch.
o Connect the ribbon cable between the CPU board and the front cover. Be especially
careful not to bend any of the connector pins! Do not use any force! Be sure that the
plug connectors latch.
o Carefully replace the front cover being mindful of the ribbon-cable. Fasten the cover
to the case with the screws.
o Replace the four corner covers.
X3
312
X4
312
Jumper
Terminating Resistors
Connected Disconnected
X3 1-2
2-3
*
)
X4 1-2
2-3
*
)
C53207-A322-
234
B100
B101
*
) Factory Set
