Configuration in STEP 7
5.6 Configuring networks and network nodes in STEP 7 / NetPro
TIM DNP3
System Manual, 06/2014, C79000-G8976-C253-03
105
Basic Param. tab
The Basic Param. tab contains the communications parameters for the selected DNP3
network node.

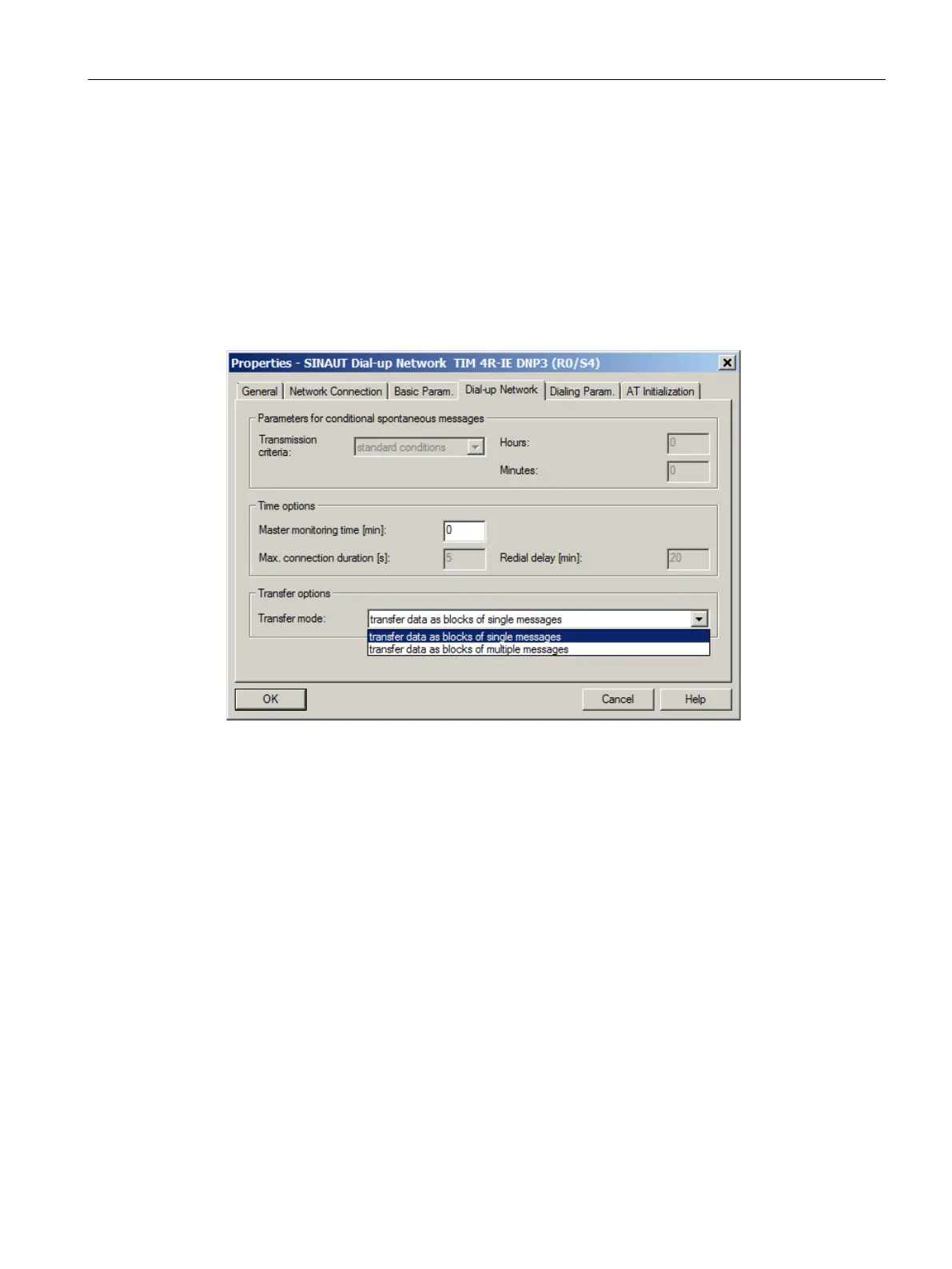

Figure 5-17 Properties - DNP3 Dedicated Line TIM dialog, Basic Param. tab
The parameters shown in the following tab cannot be modified for the TIM 3V-IE DNP3 and
only partly modified for the TIM 4R-IE DNP3.
● Interface:
This parameter cannot be set for DNP3.
●
Interface type (TIM 4R-IE DNP3 only):
Here, you set the type of interface: RS-232 or RS-485 mode
This parameter cannot be set for the TIM 3V-IE DNP3.
●
RS485 termination (TIM 4R-IE DNP3 only):
This output box indicates whether the terminating resistor has been activated for the RS-
485 bus.
This parameter cannot be set for the TIM 3V-IE DNP3.
● Operating mode:
This parameter cannot be configured for DNP3 and has no significance.
● Extra transmission time:
This parameter cannot be set for DNP3 and has no significance.
