7.3 SINAUT diagnostics and service tool
TIM DNP3
268 System Manual, 06/2014, C79000-G8976-C253-03
- Source: number of the open message protocols in ascending order
- msec: (No entry for DNP3)
- Block: Number of the message block
- Subscriber number of message source and destination
- Object number (no entry for DNP3)
- Index no.: (no entry for DNP3
)- Organizational information (no entry for DNP3
)- User data
The net data is output in hexadecimal code.

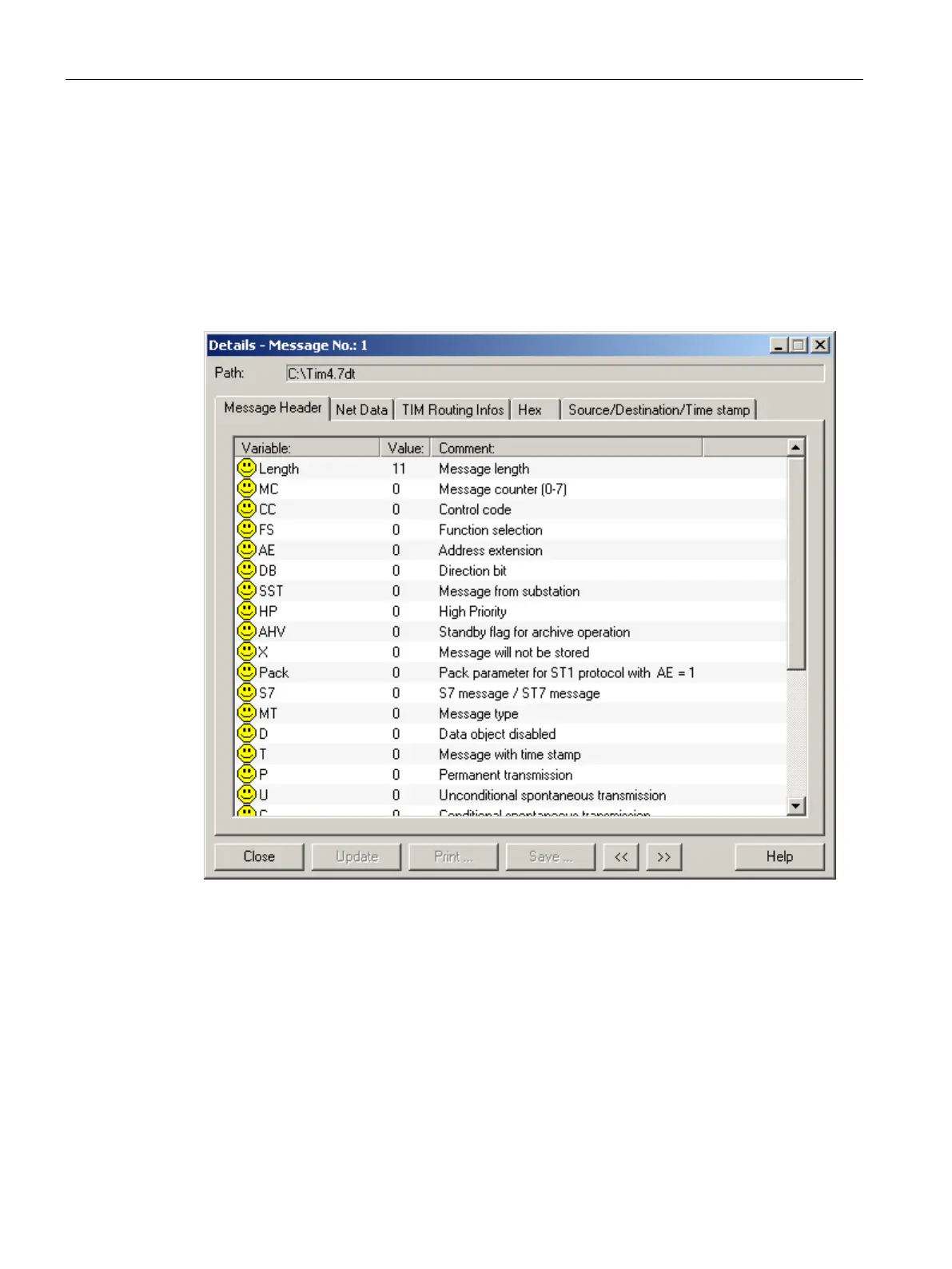

Figure 7-3 The
TIM Message Protocol
dialog
Functions of the TIM message protocol
Further functions are available with the right mouse button in a context menu. These can be
grouped as follows:
● Presentation of the messages
● Details (of the message content)
● Statistics
● Filter functions
● Exporting protocol files
