 Time— the horizontal displacement between current frame and trigger position.
 RX — the receiving channel.
 TX — the transmitting channel.
 RX Err— Parity error or unknown error in the data received.
 TX Err— Parity error or unknown error in the data transmitted.
CAN Trigger and Serial Decode
Please in order of “Setup for CAN Signals”, “CAN Trigger” and “CAN Serial Decode” to
trigger and decode the signals.
Setup for CAN Signals
1. Press the Decode key to enter the DECODE function menu.
2. Press the Decode softkey and select the desired slot (Decode1 or Decode2).
3. Press the Protocol softkey and then select CAN by turning Universal Knob.
4. Press the Signal softkey to enter the SIGNAL menu as Figure 55 shows.

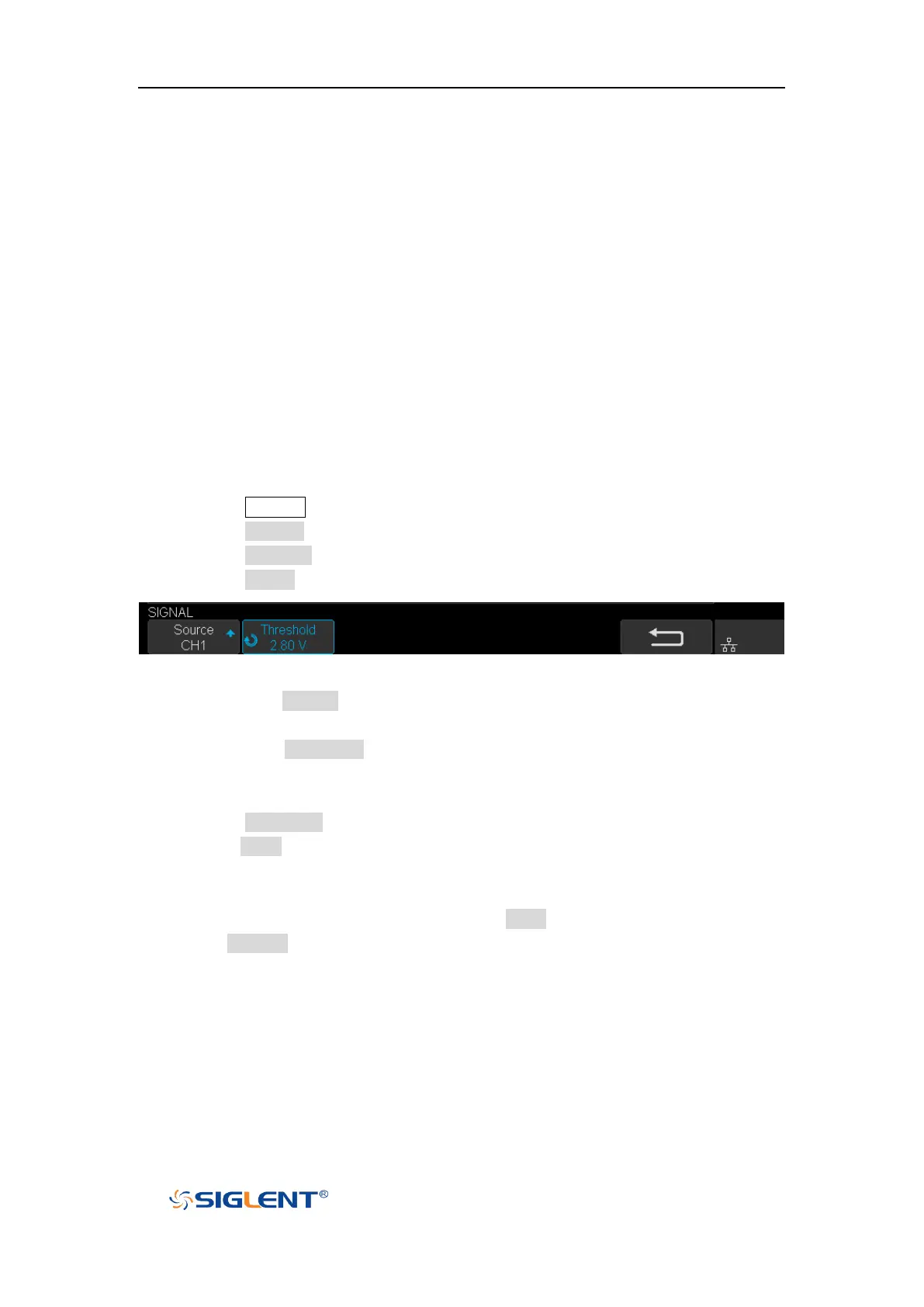

Figure 52CAN SIGNAL Menu
a. Press the Source softkey to select the channel that is connected to the CAN
signal.
b. Press the Threshold key to set the CAN signal’s threshold voltage level by
Universal Knob. The threshold voltage level is for decoding, and it will be regard
as the trigger voltage level when set the trigger type to serial.
5. Press the Configure softkey to enter the BUS CONFIG menu.
6. Press the Baud to set baud rate by Universal Knob.
 The baud rate can be set as predefined value (from 5kb/s to 1Mb/s) or custom
value (from 5kb/s to 1Mb/s).
 If the desired baud rate is not listed, press Baud and select custom option, press
the Custom and turn the Universal Knob to set the desired baud rate.
