SDS1000X-E User Manual
137
Gate Measurement
The SDS1000X-E supports gate measurement and performs the selected measurement
within the upper and lower limits of the gate. Setting the gate will affect the measurement
of all voltage, time, and delay parameters.
1. Press Measure → Gate → On to open the gate measurement.
2. Press the Gate A to move the position of gate A by the Universal Knob.
3. Press the Gate B to move the position of gate B by the Universal Knob.
4. Press the Gate A-B to move the positions of the gate A and B simultaneously by the
Universal Knob.

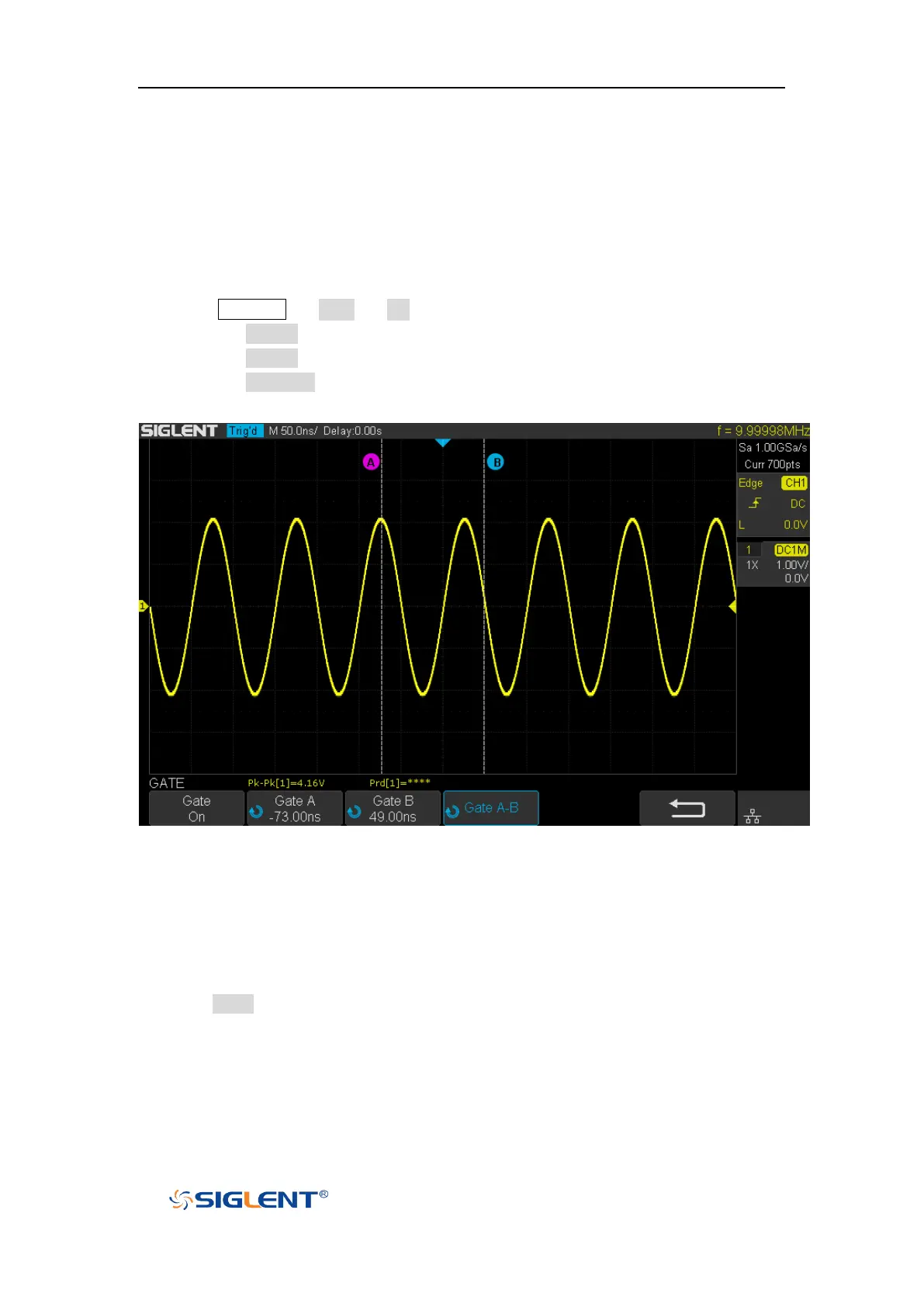

Figure 81 Gate Measurement
Clear Measurement
Press the Clear softkey to clear all the measurement parameters that are displaying on
the screen.
