Note: The vertical Variable knob and the vertical Position knob are only works for
the reference waveform and the math waveform. Please make a difference
with the channel vertical system.
Adjust REF Waveform
1. Please refer to the “To Display REF Waveform” above to display the desired
reference waveform.
2. Press the Scale and Position softkey and turn the Universal Knob to adjust the
vertical scale and position of the reference waveform. The vertical scale and position
information display at the middle of the screen.
The initial values display at the middle of the screen is the setup that when the reference
waveform been saved.

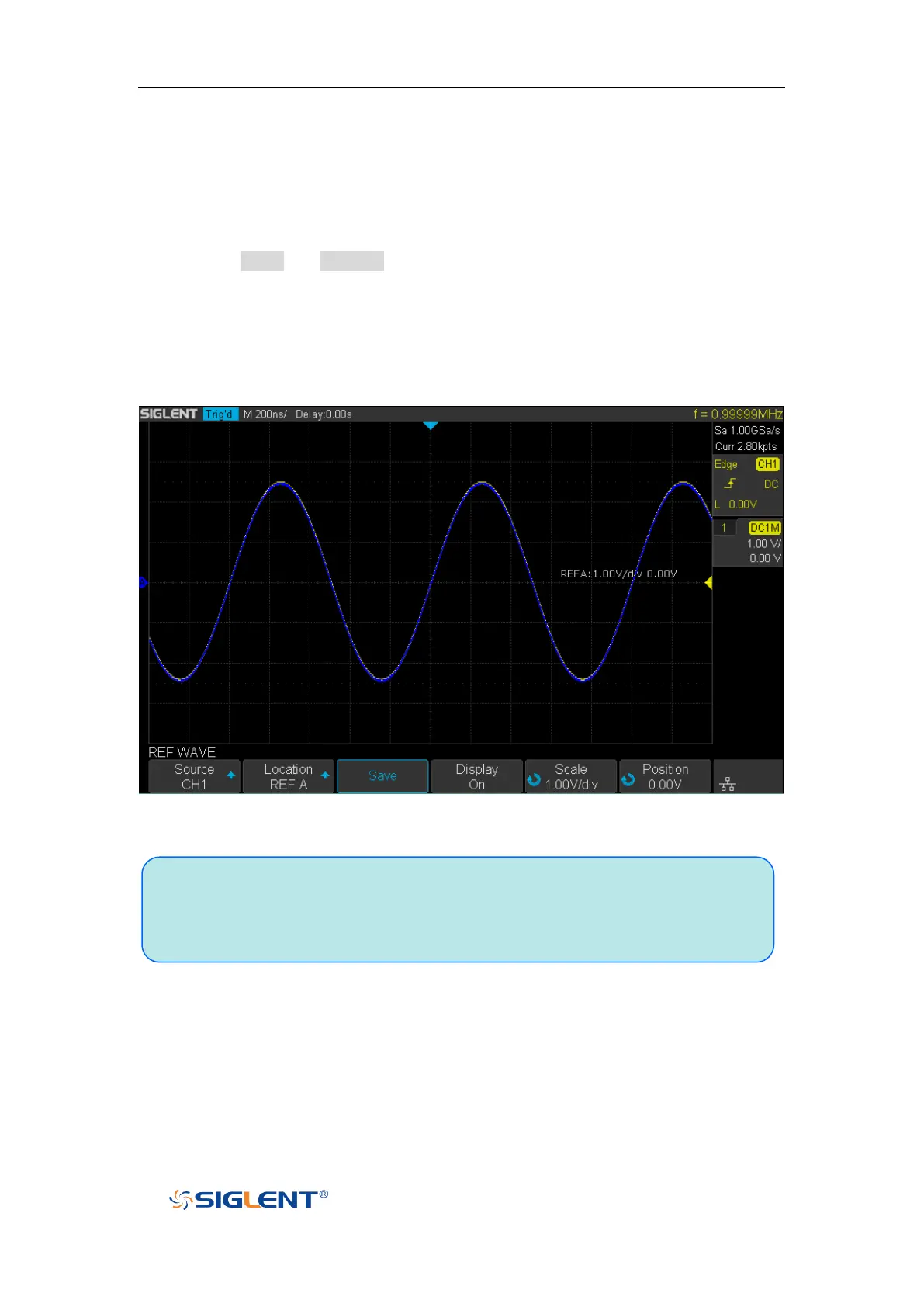

Figure 57 Reference Waveform
Clear REF Waveform
The oscilloscope does not have the “Clear” option under the REF WAVE function menu.
