SDS1000X-E User Manual
174
WWW.SIGLENT.COM

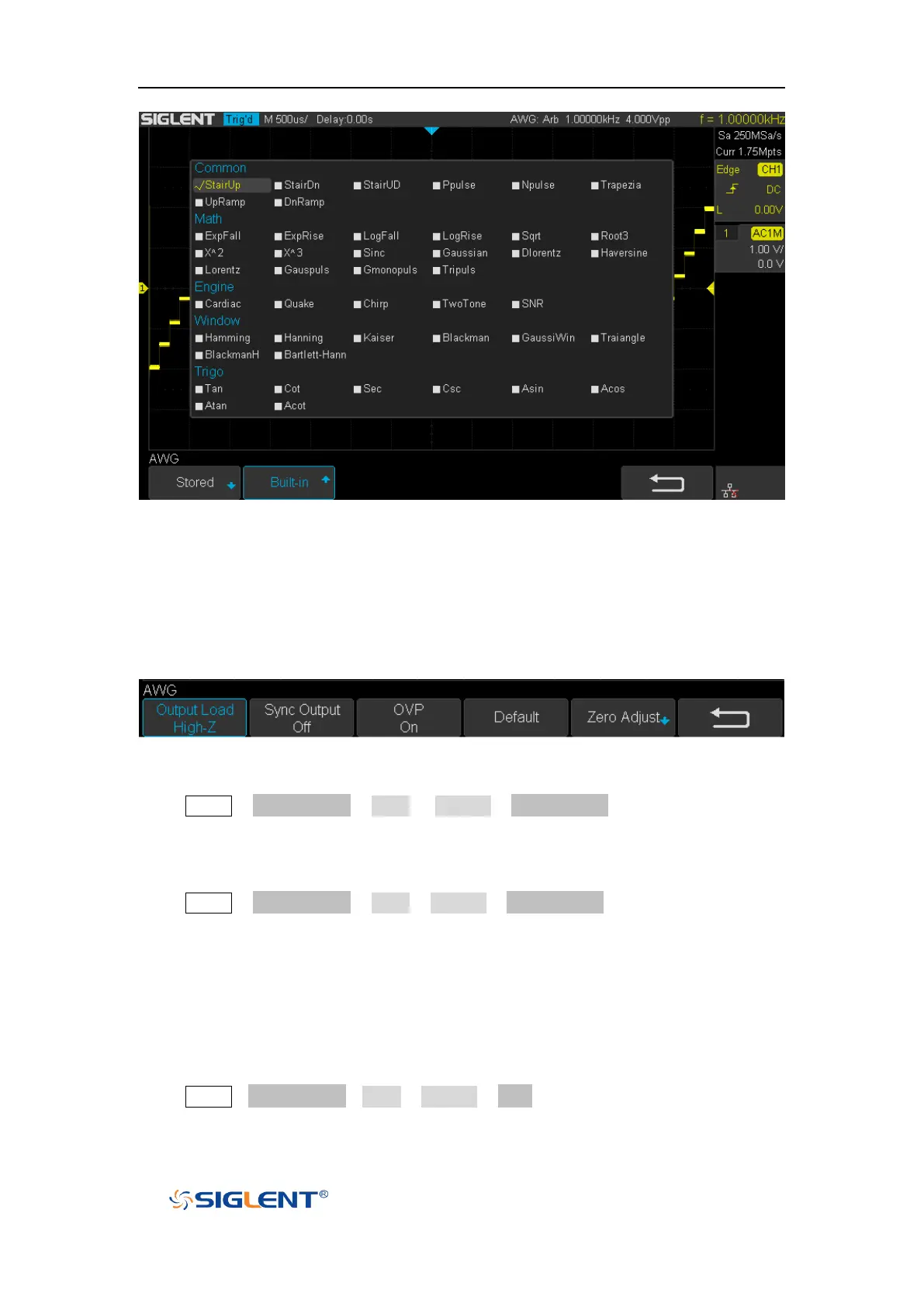

Figure 103 Built-in Arb Interface
Setting
Figure 104 AWG Setting Interface
Output Load
Press Utility→ NextPage4/4→ AWG → Setting→ Output Load to set High-Z or 50Ω.
Sync Output
Press Utility→ NextPage4/4→ AWG→ Setting→ Sync Output, the AWG provides Sync
output through the [Aux In/Out] connector on the rear panel. When the Sync Output is on,
the port can output a CMOS signal with the same frequency as basic waveforms (except
the Noise and DC), arbitrary waveforms, and modulated waveforms (except external
modulation).
OVP (Over Voltage Protection)
Press Utility→NextPage4/4→AWG→ Setting→ OVP to turn on or off the function. If the
state is set to ON, overvoltage protection of AWG output port take effect once the
