SDS1000X-E User Manual
46

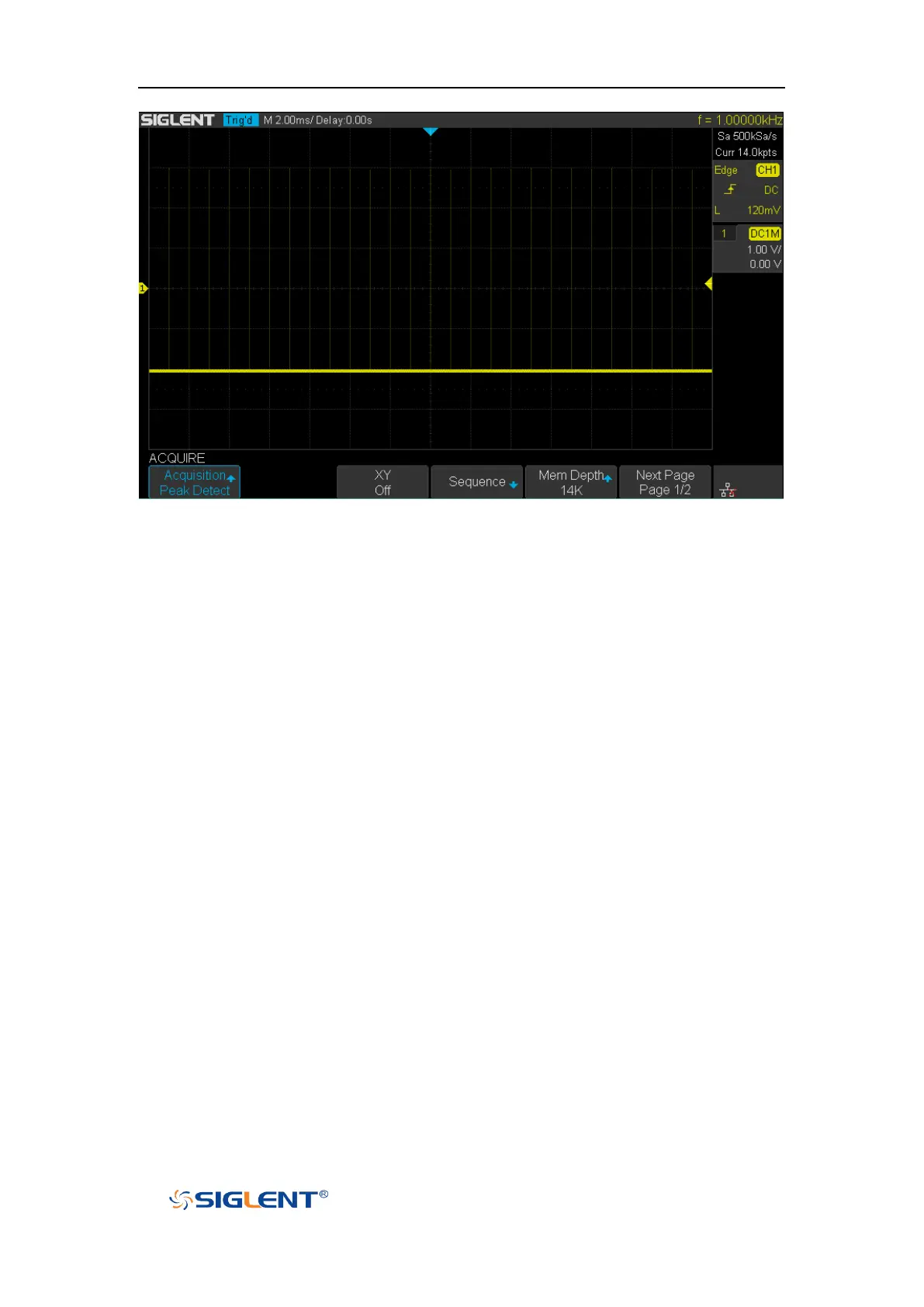

Figure 21 Pulse With 0.1% Duty, Peak Detect Mode
Average
In this mode, the oscilloscope averages the waveforms from multiple samples to reduce
the random noise of the input signal and improve the vertical resolution. The greater the
number of averages is, the lower the noise will be and the higher the vertical resolution will
be but the slower the response of the displayed waveform to the waveform changes will
be.
The available range of averages is from 4 to 1024 and the default is 16. When Average
mode is selected, press Averages and turn the Universal knob or press the softkey
continually to set the desired average time.
