SDS1000X-E User Manual
190
Bode Plot II
The bode plot application for the SDS1000X-E (only 4 channels scope supports this
function) controls an external arbitrary waveform generator(only Siglent’s arbitrary
waveform generator can be supported) to sweep a sine wave across a range of
frequencies while measuring the input to and output from a device under test (DUT). At
each frequency point, gain and phase are measured and displayed on the Bode plot.
Perform Bode Plot
The following steps briefly describe how to perform the Bode Plot:
1. Press the Utility button on the front panel to enter the UTILITY function menu, and
then press the Next Page softkey to enter the second page.
2. Press Bode Plot II softkey to enter the BODE PLOT II menu. At this time, only the
Default and Auto Setup button which on the front panel are available.

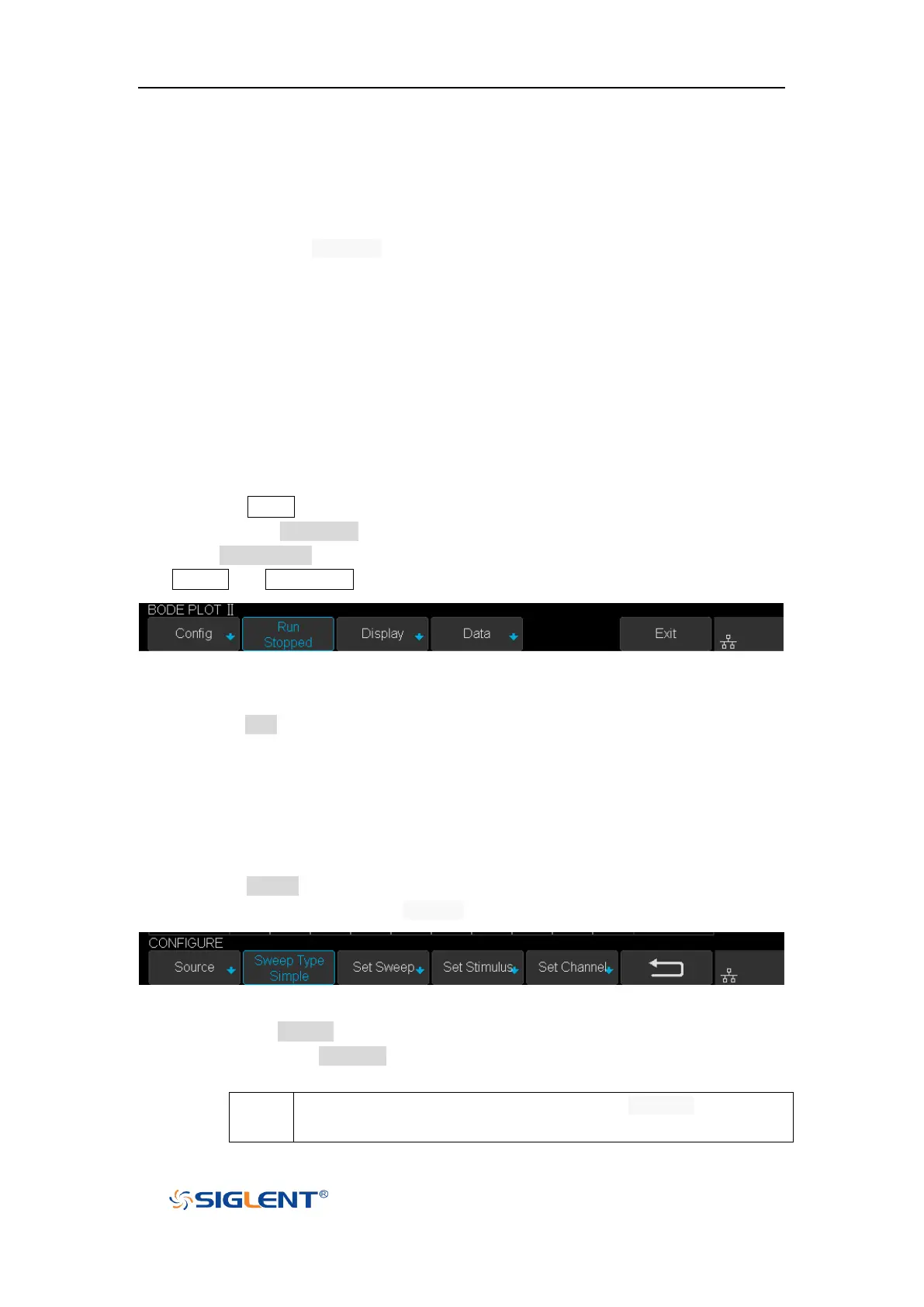

Figure 117 BODE PLOT II Menu
3. Configure the parameters (see the section “Setting” for details).
4. Press the Run softkey to perform the test.
Setting
1. Press the Config softkey to enter the CONFIGURE menu. All the parameters in this
menu are used to configure the external AWG.
Figure 118 CONFIGURE Menu
1) Press the Source softkey to enter SOURCE menu.
Press the Interface softkey and turn the Universal Knob to select the
connection mode of AWG.
Connect the oscilloscope USB host to the external AWG’s USB
Device via a USB cable.
To Next Page
