SDS1000X-E User Manual
199
Search
SDS1000X-E (only 4 channels scope supports this function）provides search function.
This function can search for the events that users specify in the acquired data, the results
are displayed with white triangle symbol. In the YT mode or the Roll mode with the
acquisition in stop, the maximum search events number is 700.In the Roll mode with
acquisition in run, the maximum search events number is unlimited. The waveform can be
zoomed when search function is enabled.
Setting
1. Press the Search button on the front panel to enter the SEARCH function menu.
2. Press the Mode softkey and then use the Universal Knob to select the desired
search type. SDS1000X-E provides five search types: Edge, Slope, Pulse, Interval,
Runt.

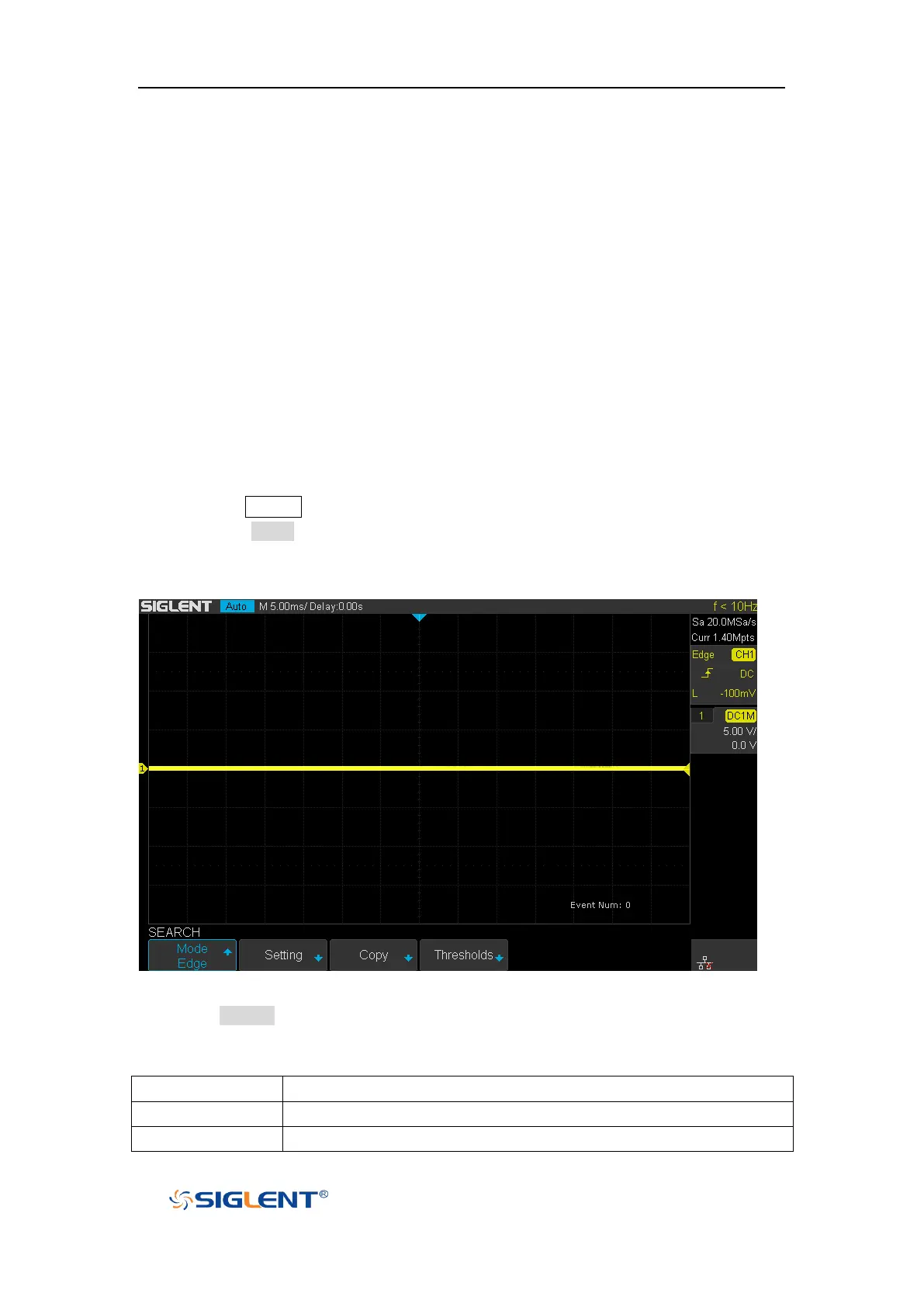

Figure 123 Search Menu
3. Press the Setting softkey to enter the SETTING function menu. The setting menu is
different according to every search type. The details show as the following table.
Slope includes Rising, Falling, Either.
Slope includes Rising, Falling
