SDS1000X-E User Manual
131
WWW.SIGLENT.COM

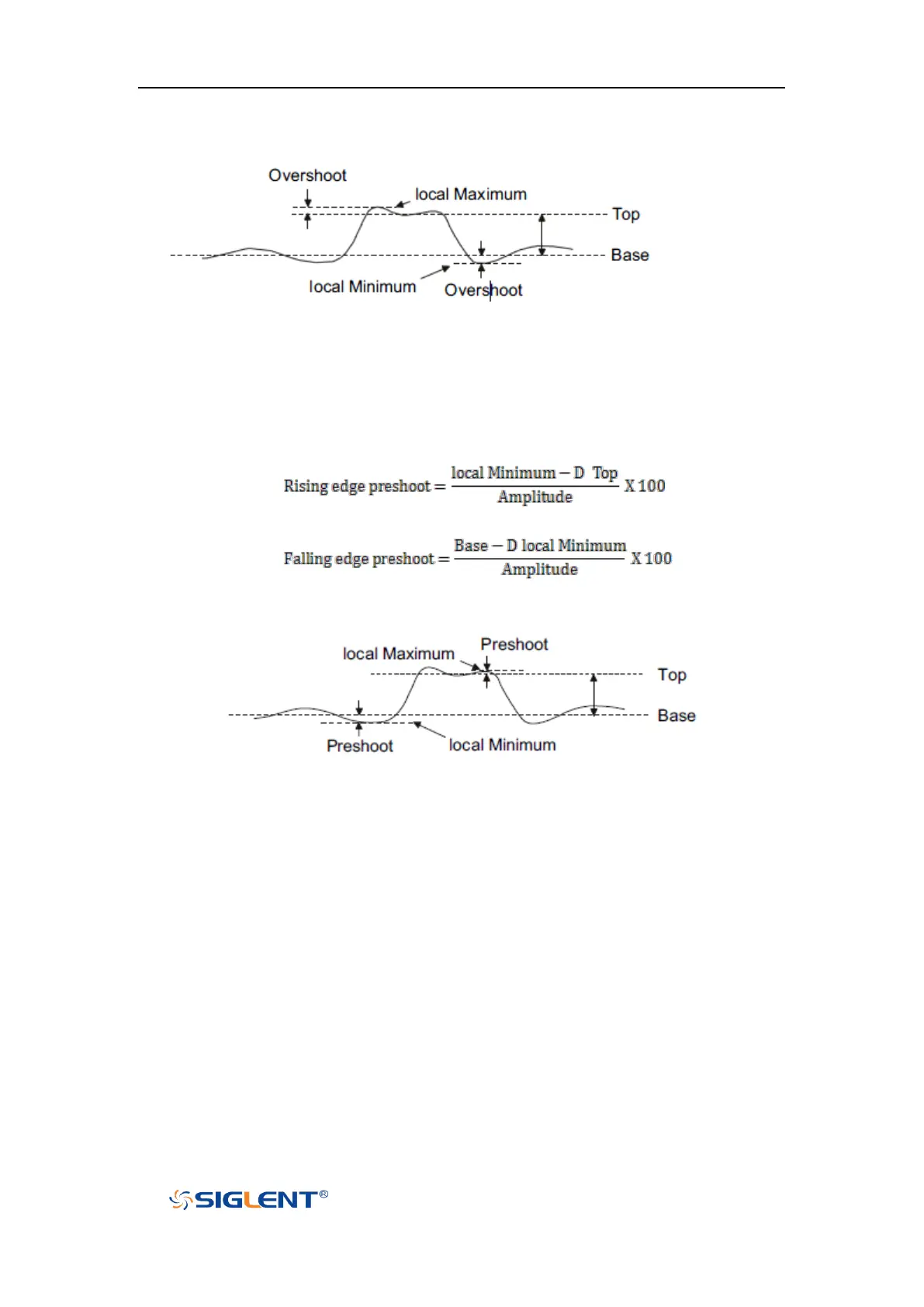

Figure 75 Overshoot
14. Preshoot: Preshoot is distortion that precedes a major edge transition expressed as a
percentage of Amplitude. The X cursors show which edge is being measured (edge
closest to the trigger reference point).
Figure 76 Preshoot
15. Level@X: the voltage value between the trigger point and the vertical position of the
channel
Time Measurements
Time measurements include 11 kinds of time parameter measurements.
