Digital Bus
Digital channels may be grouped and displayed as a bus, with each value displayed at the
bottom of the display in hex or binary. You can create up two buses.
To configure and display each bus, do the following steps:
1. Press the Digital button on the front panel to open the DIGITAL function menu and
display the digital channel waveforms.
2. Press the Digital Bus softkey to enter the DIGITALBUS function menu.

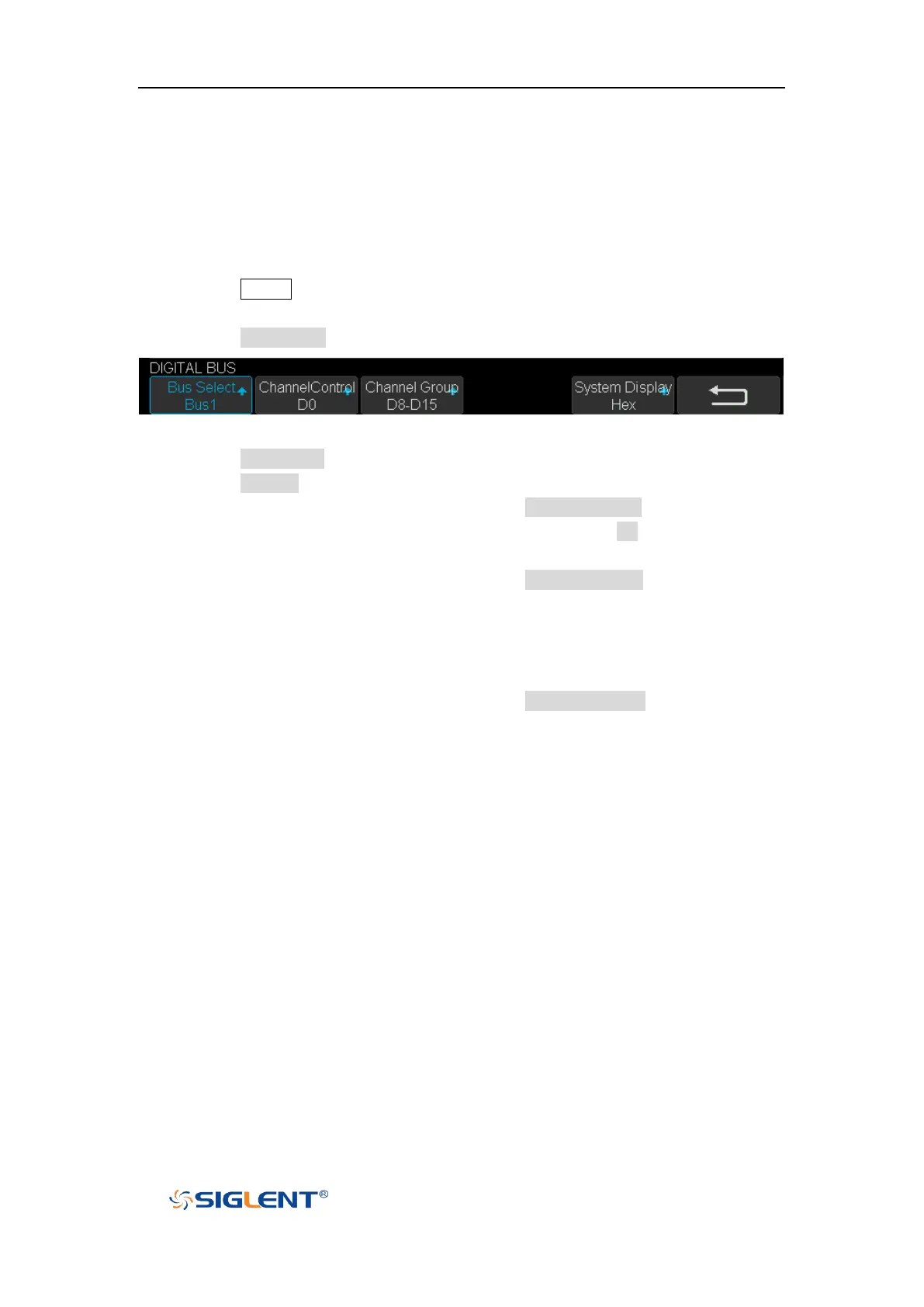

Figure 94 DIGITALBUS Function Menu
3. Press the Bus Select softkey to select Bus1 or Bus 2.
4. Press the Display softkey to select On to display the bus at the bottom of the display.
Under the DIGITAL function menu, press the Cannel Control softkey, turn the
Universal Knob to select such as DX, and then press the Dx softkey to select On
or Off to set the channel to be included or excluded in the bus.
Under the DIGITAL function menu, press the Channel Group softkey to select
On or Off to include or exclude all digital channels in this group.
Under the DIGITAL function menu, a status indicator is displayed in the status line
at the bottom of the display. Light blue shows the digital channel is included in the
bus while black shows it is excluded in the bus.
Under the DIGITAL function menu, press the System Display softkey to select
Binary or Hex to display the bus values.
The Sampling rate of digital channels is displayed at the right of the display.
