Acquire Digital Waveform
Press the Digital button on the front panel to open the digital channels and start acquiring
digital channel waveforms.
For digital channels, each time the oscilloscope takes a sample it compares the input
voltage to the logic threshold. If the voltage is above the threshold, the oscilloscope stores
a 1 in the sample memory; otherwise, it stores a 0.
Digital Channels Height
1. Press the Digital button on the front panel to open the DIGITAL function menu.

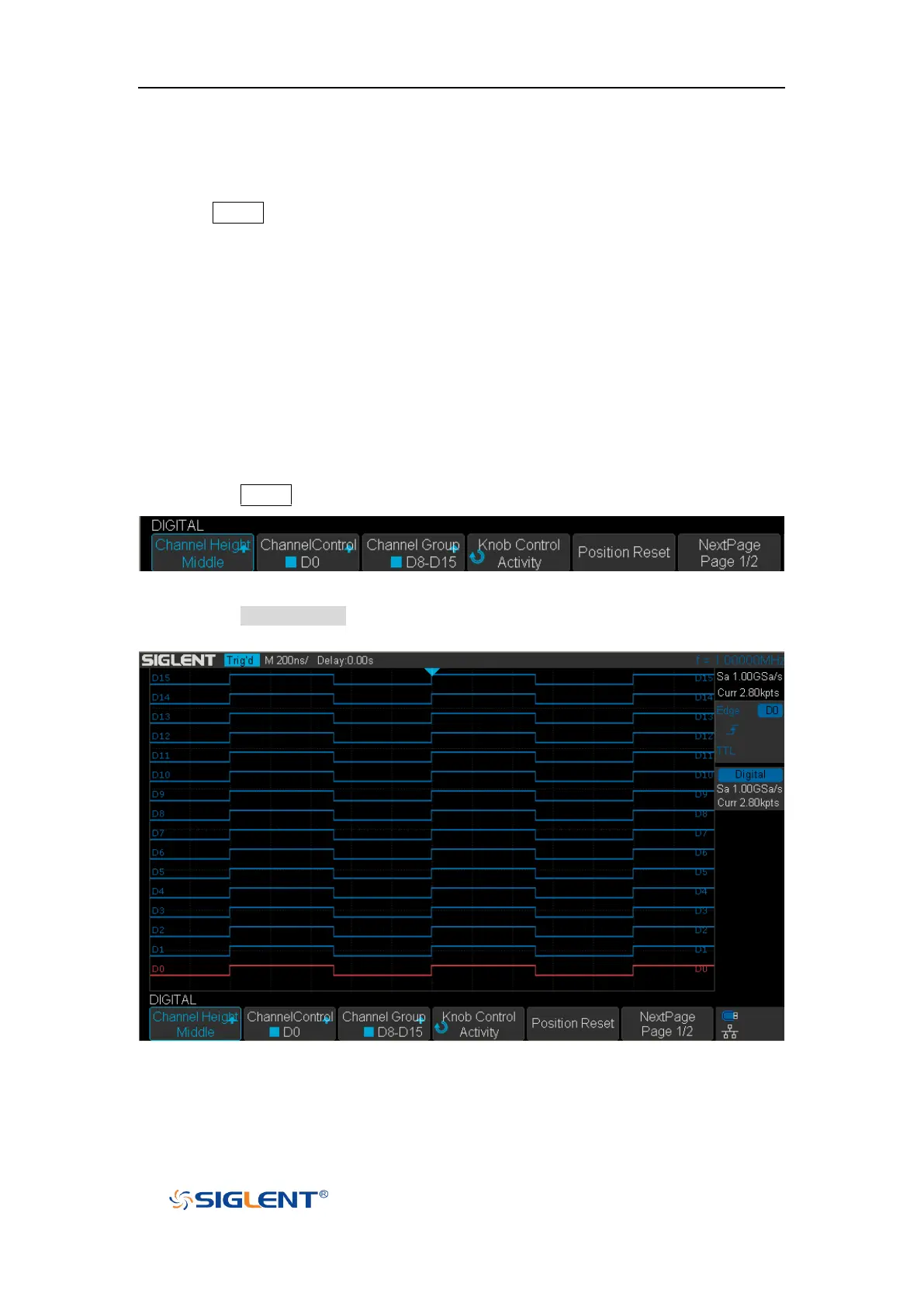

Figure 90 Digital Function Menu
2. Press the Channel High softkey to select Low , Middle , High display type.
Figure 91 Middle Display Type
