Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can
select the desired type and then input the time value.
Pulse
Polarity includes Positive and Negative
Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can
select the desired type and then input the time value.
Interval
Slope includes Rising, Falling
Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can
select the desired type and then input the time value.
Runt
Polarity includes Positive and Negative
Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can
select the desired type and then input the time value
4. Press Copy softkey to enter COPY function menu.
 Copy from Trig: copy the trigger setup for the selected search type to the search
setup.
 Copy to Trig: copy the setup for the selected search type to the same trigger type
 Cancel Copy: undo a copy.
5. Press Thresholds softkey to enter THRESHOLDS function menu, then, to set channel
search thresholds.
Results

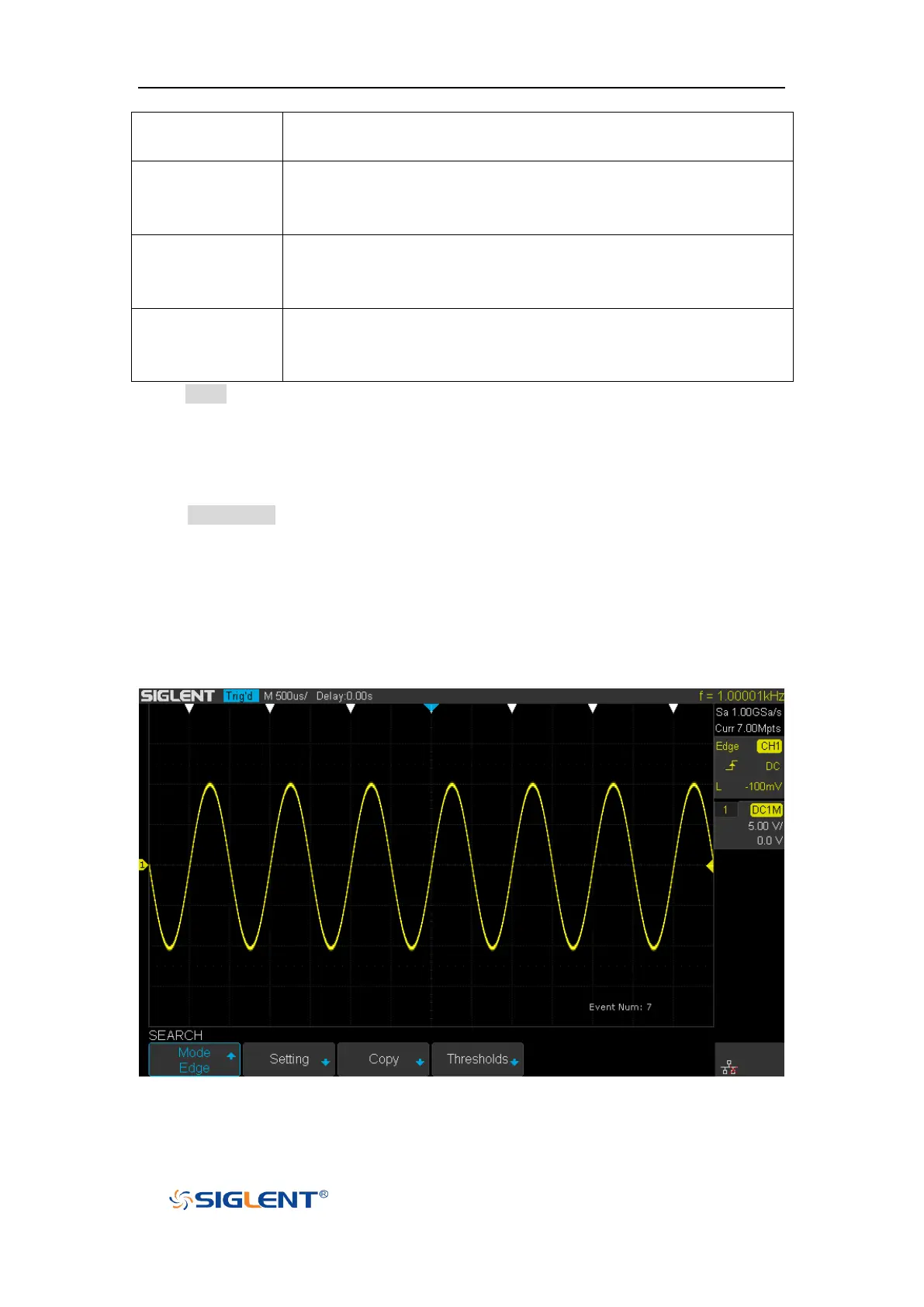

Figure 124 Search in Run
When the acquisition is started, “EVENT NUM:7” means total events number.
