SDS1000X-E User Manual
139
WWW.SIGLENT.COM
Display Type
Press the Display button on the front panel, and then press the Type softkey to select
Vectors or Dots display type.
 Vectors: the sample points are connected by lines and displayed. Normally, this
mode can provide the most vivid waveform to view the steep edge of the waveform
(such as square waveform).
 Dots: display the sample points directly. You can directly view each sample point and
use the cursor to measure the X and Y values of the sample point.

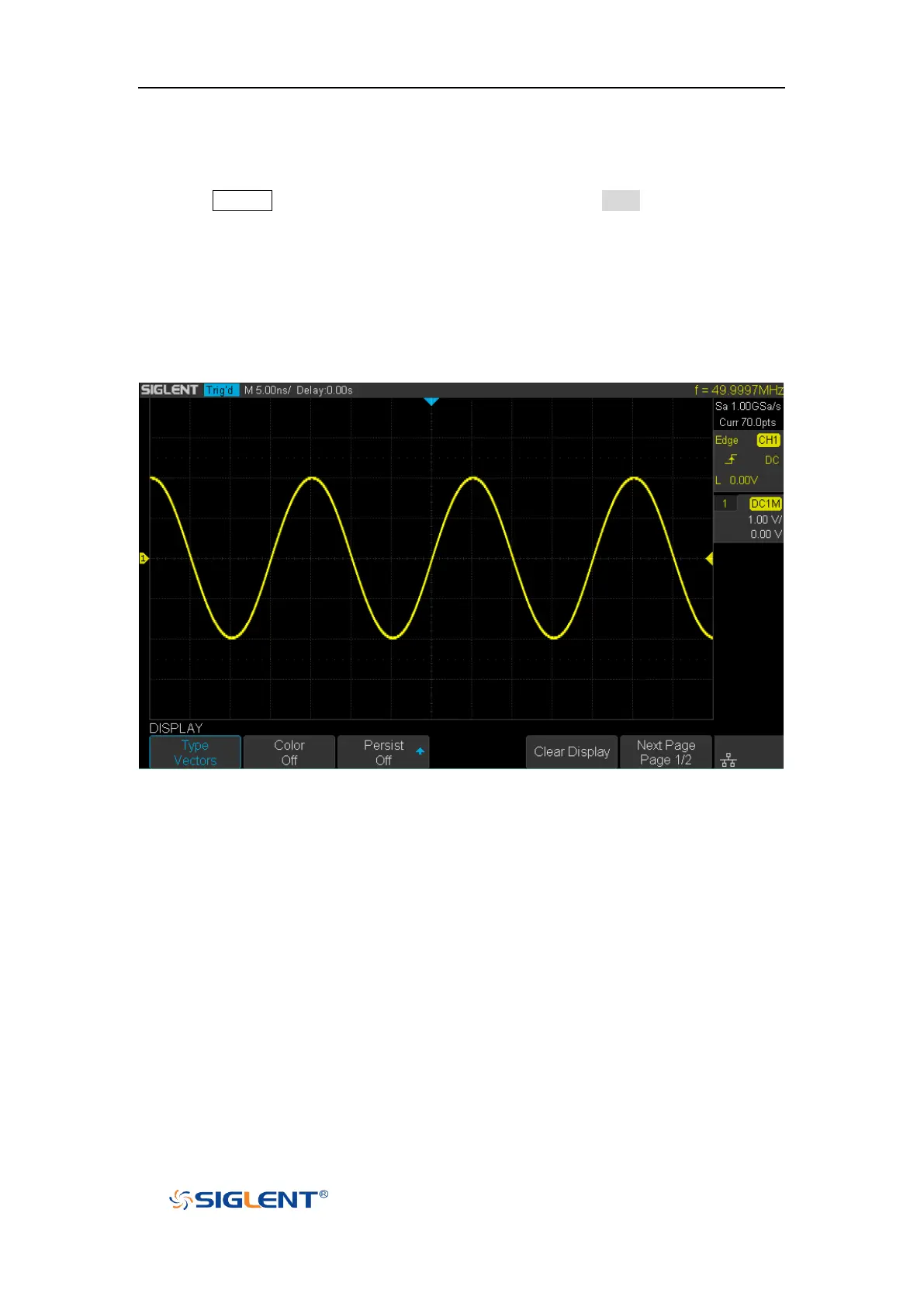

Figure 82 Vectors Display
