Automatic Measurement
Perform the steps below and select voltage or time parameters to make automatic
measurement.
1. Press the Measure button on the front panel to enter the MEASURE function menu.
At the same, the frequency and period are enabled with the current trigger channel,
the statistics also was enabled.
2. Press the Source softkey, and then use the Universal Knob to select the desired
channel. Only analog channels that are displayed are available for measurements.
3. To select and display measurement parameters. Press the Type softkey, and then
turn the Universal Knob to select the desired measurement parameter.
4. Press the Universal Knob to add the measurement parameter, the parameters and
value will be shown above the menu, and the statistics status will update.
5. To turn off the statistic function, press the Statistics softkey to select Off.
The measurement display area can display 4 measurement parameters at most, and the
measurements will arrange according to the selecting order. If add a sixth measurement
parameter, it will delete the first measurement.

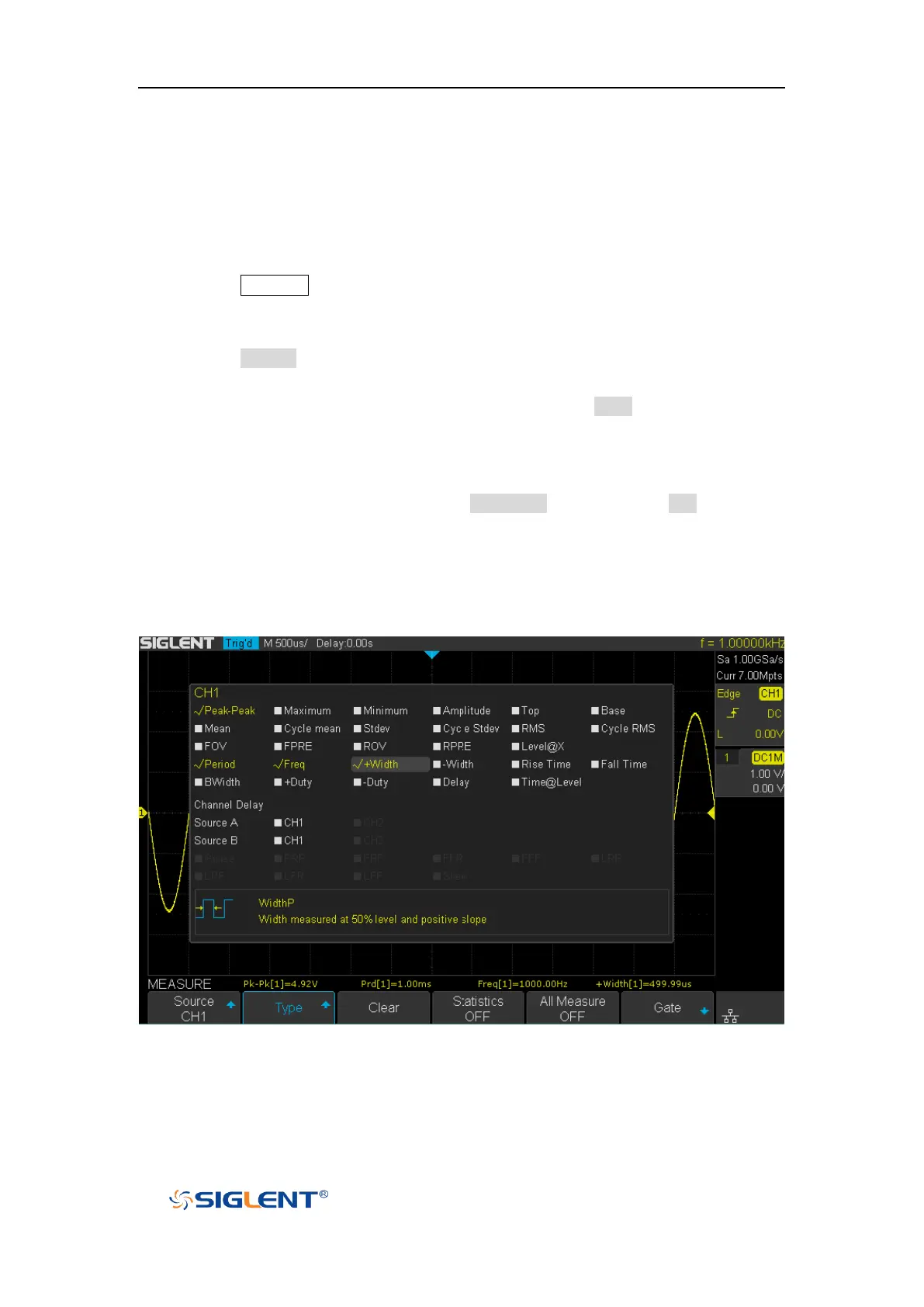

Figure 78 Select the Measurement Parameter
