SDS1000X-E User Manual
11
Rear Panel Overview

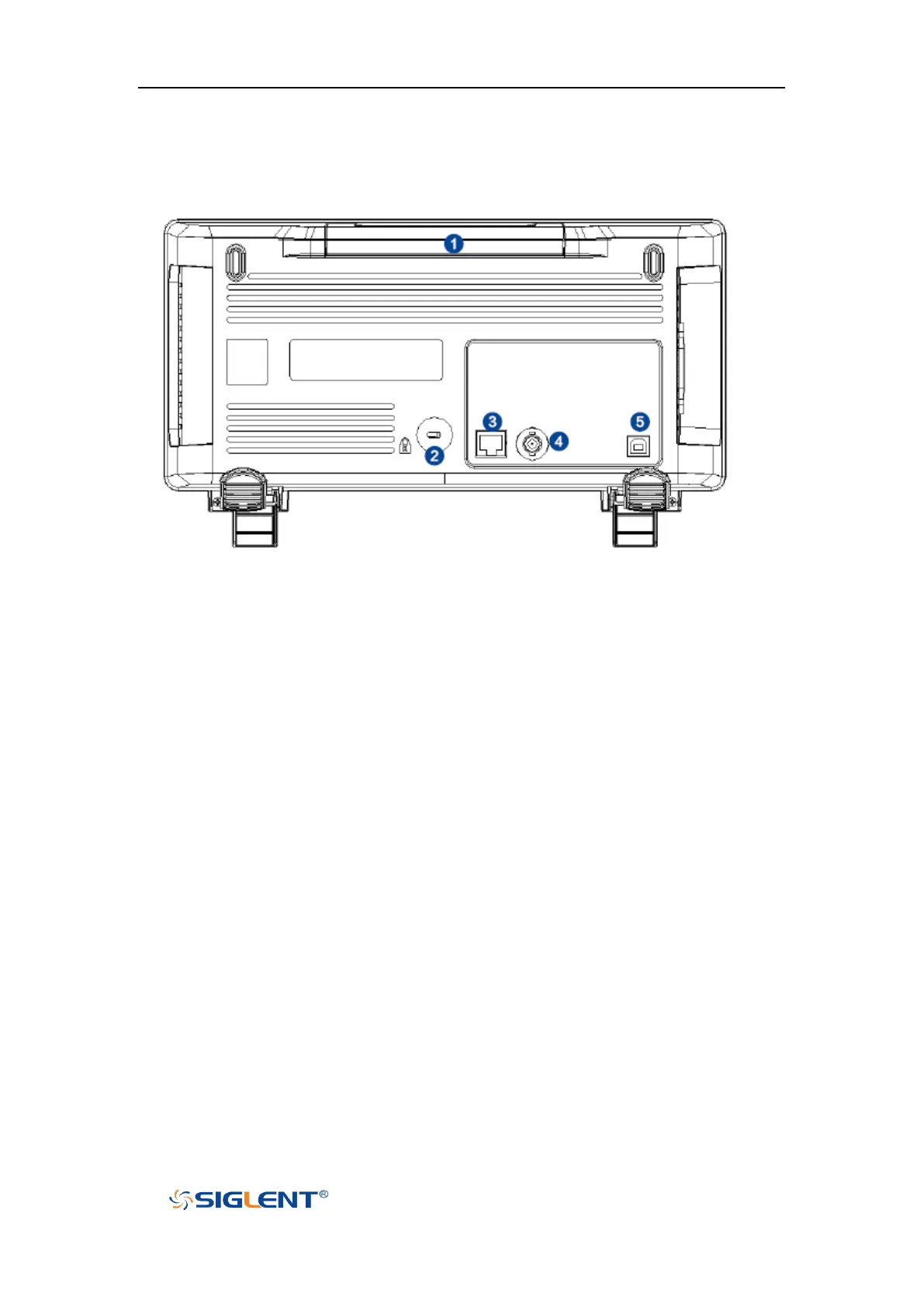

Figure 10 2-Channel Scope Rear panel Overview
1. Handle
Pull up the handle vertically for easy carrying of the instrument. When you do not need
the handle, press it down.
2. Safety lock Hole
You can lock the instrument to a fixed location using the security lock (please buy it
yourself) via the lock hole.
3. LAN
The instrument can be connected to network via this interface to perform remote
control.
4. Pass/Fail or Trigger Out
The BNC port can output a signal that reflects the current waveform capture rate of
the oscilloscope at each trigger or a pass/fail test pulse.
5. USB Device
The oscilloscope support SCPI remote control commands, user can control the
oscilloscope through this interface.
