SDS1000X-E User Manual
64
WWW.SIGLENT.COM
Note: Press the Auto Setup button will set the trigger type to Edge and slope to rising.

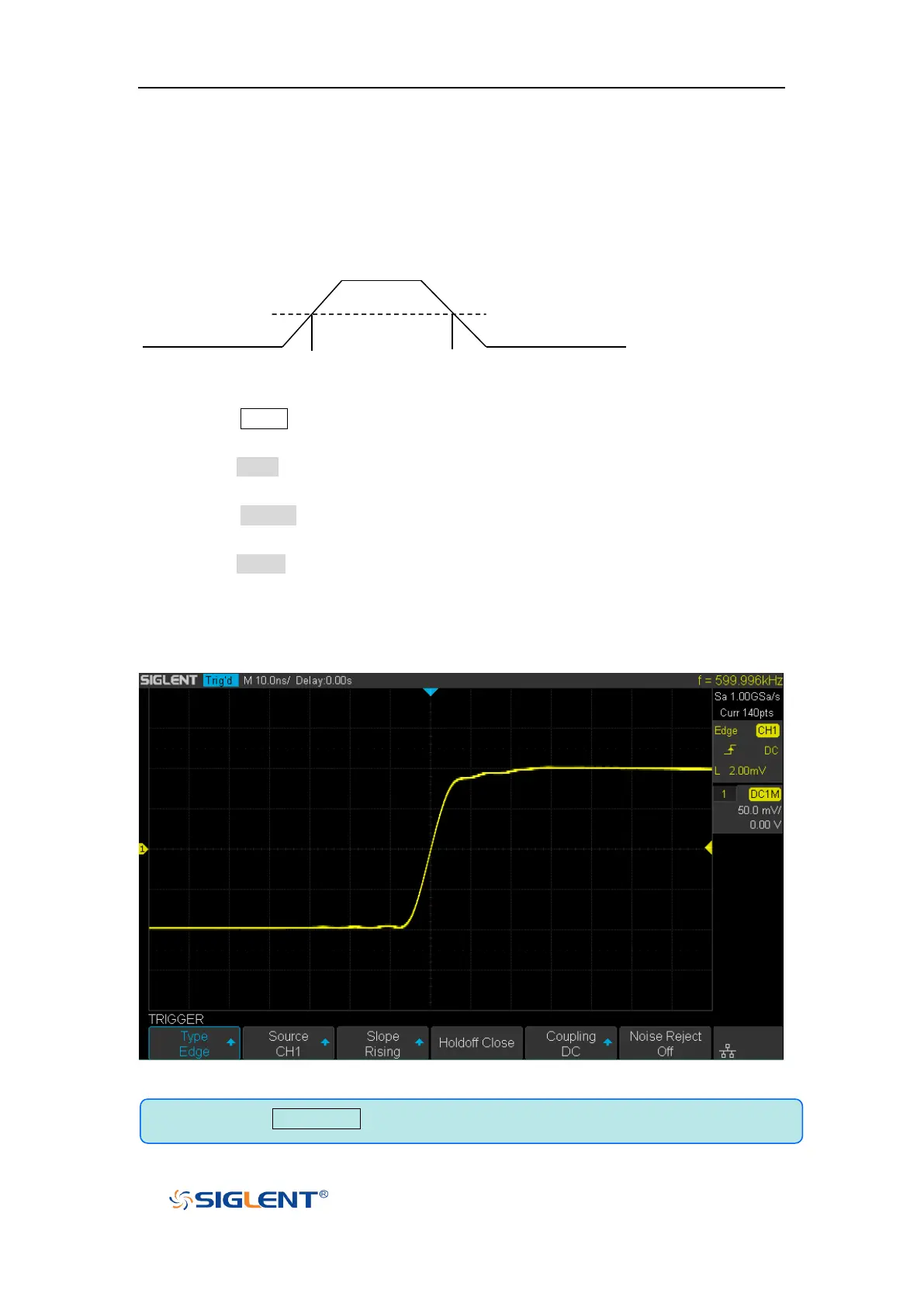

Edge Trigger
Edge trigger distinguishes the trigger points by seeking the specified edge (rising, falling,
alter) and trigger level.
Rising Edge Falling Edge
Trigger Level
Trigger Point Trigger Point
1. Press the Setup button on the front panel to enter the TRIGGER system function
menu.
2. Press the Type softkey; turn the Universal Knob to set select Edge and then push
the knob to confirm.
3. Press the Source softkey; turn the Universal Knob to select the deserted trigger
source.
4. Press the Slope softkey; turn the Universal Knob to select the desired trigger edge
(rising, falling or alter), and then press down the knob to confirm. The current trigger
slope is displayed at the upper right corner of the screen.
5. Turn the Trigger Level Knob to adjust the trigger level to obtain stable trigger.
Figure 28 Edge Trigger
