SIGLENT TECHNOLOGIES SDS1104X-E User Manual

SDS1000X-E User Manual
5
WWW.SIGLENT.COM
Prepare for Using

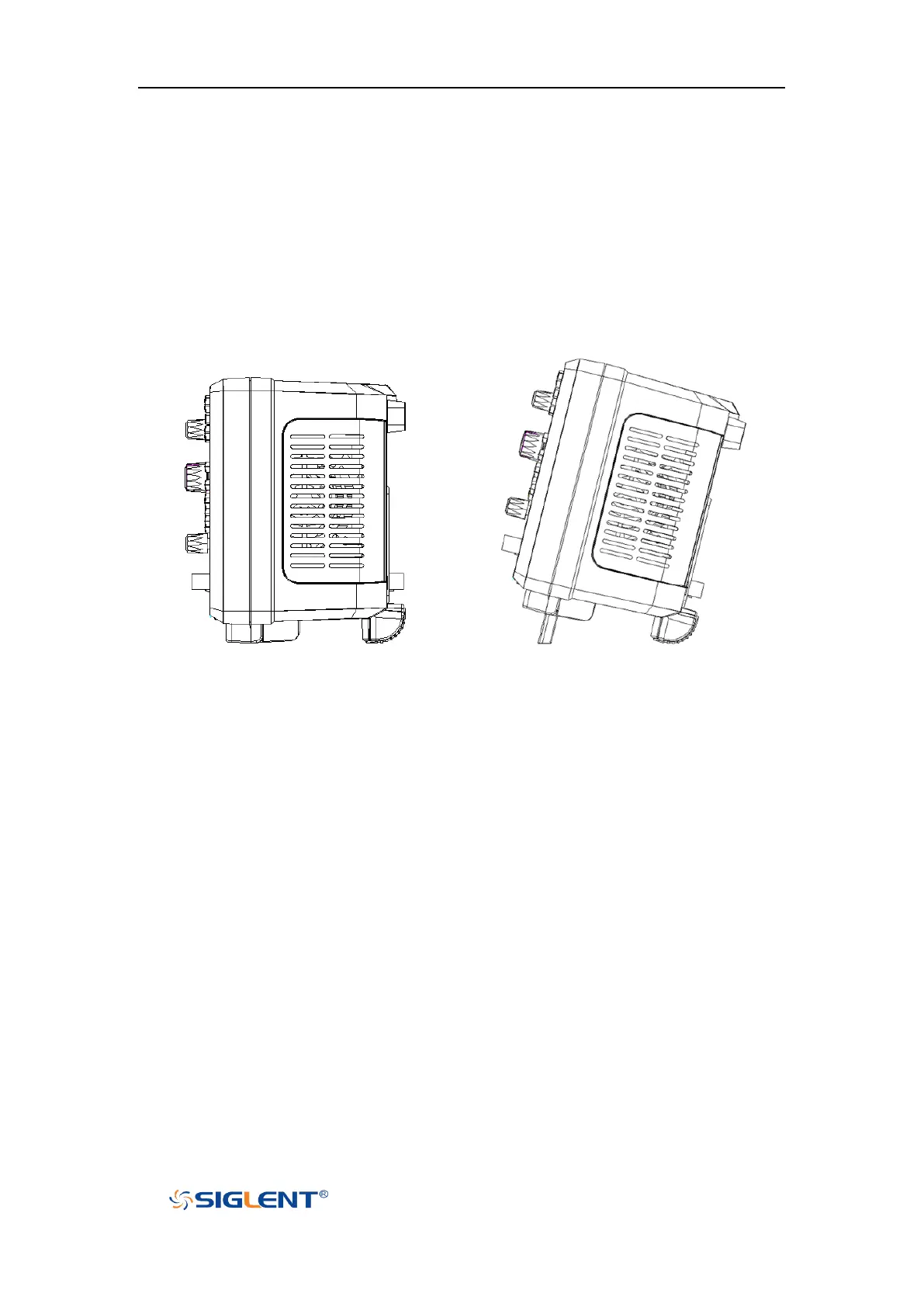

Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards
for stable placement of the oscilloscope as well as better operation and observation.
Figure 5 Adjust the Supporting Legs
Connect the Power Supply
The power requirements of the oscilloscope are 100-240 V, 50/60Hz or 100-120 V, 400Hz.
Please use the power cord supplied with the accessories to connect the oscilloscope to
the power source.

SIGLENT TECHNOLOGIES SDS1104X-E Specifications

General

Brand	SIGLENT TECHNOLOGIES
Model	SDS1104X-E
Category	Test Equipment
Language	English
