SDS1000X-E User Manual
130
Type of Measurement
Voltage Measurements
Voltage measurements include 15 kinds of voltage parameter measurements.

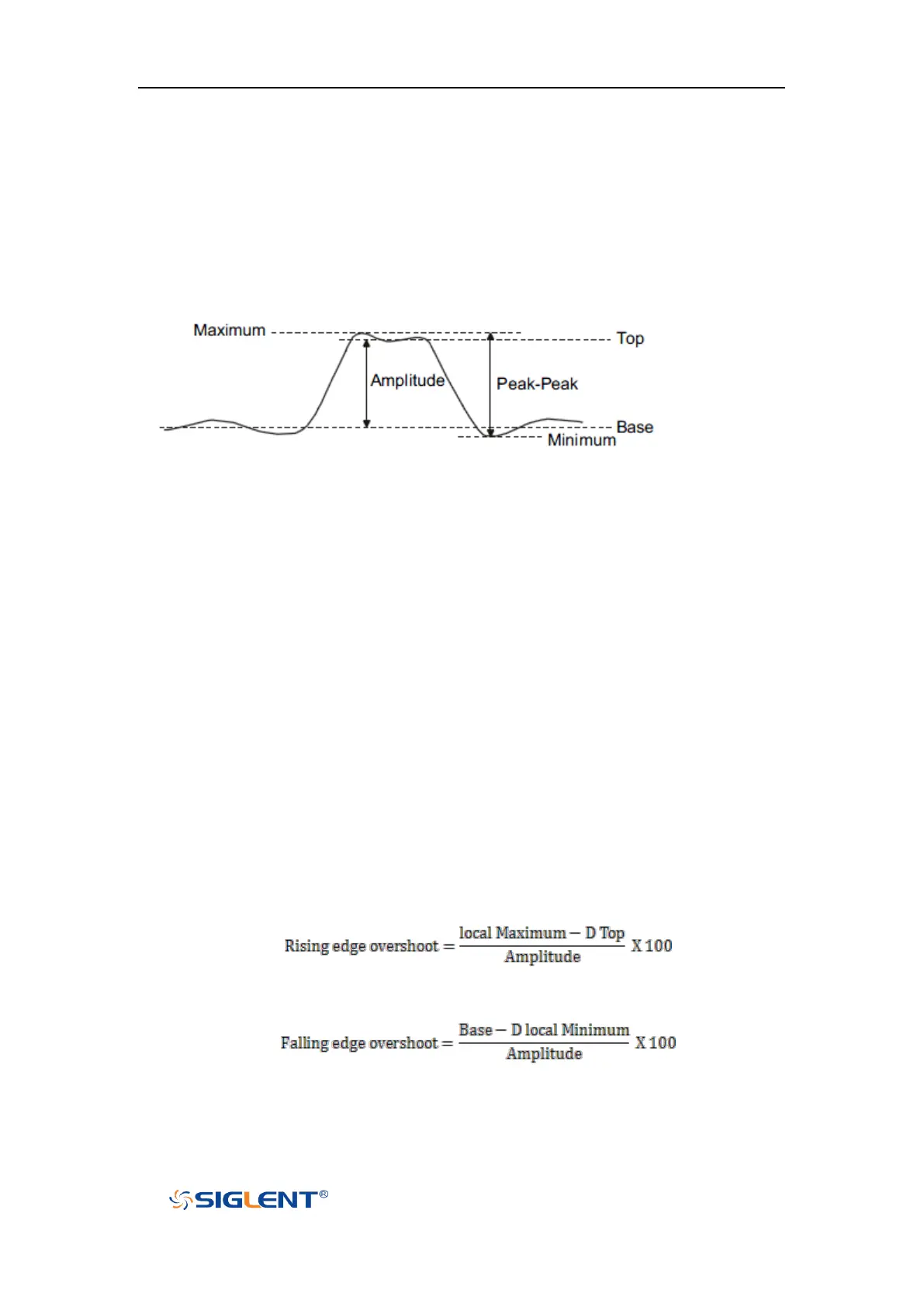

Figure 74 Voltage Measurements
1. Peak-Peak: Difference between maximum and minimum data values.
2. Maximum: Highest value in input waveform.
3. Minimum: Lowest value in input waveform.
4. Amplitude: Difference between top and base in a bimodal signal ,or between max
and min in an unimodal signal.
5. Top: Value of most probable higher state in a bimodal waveform.
6. Base: Value of most probable lower state in a bimodal waveform.
7. Mean: Average of all data values
8. Cycle mean: Average of data values in the first cycle.
9. Stdev: Standard deviation of all data values
10. Cycle Stdev: Standard deviation of all data values in the first cycle
11. Rms: Root mean square of all data values.
12. Cycle RMS: Root mean square of all data values in the first cycle.
13. Overshoot: Overshoot is distortion that follows a major edge transition expressed as
a percentage of Amplitude. ROV means rising edge overshoot and FOV means falling
edge overshoot.
