SDS1000X-E User Manual
157

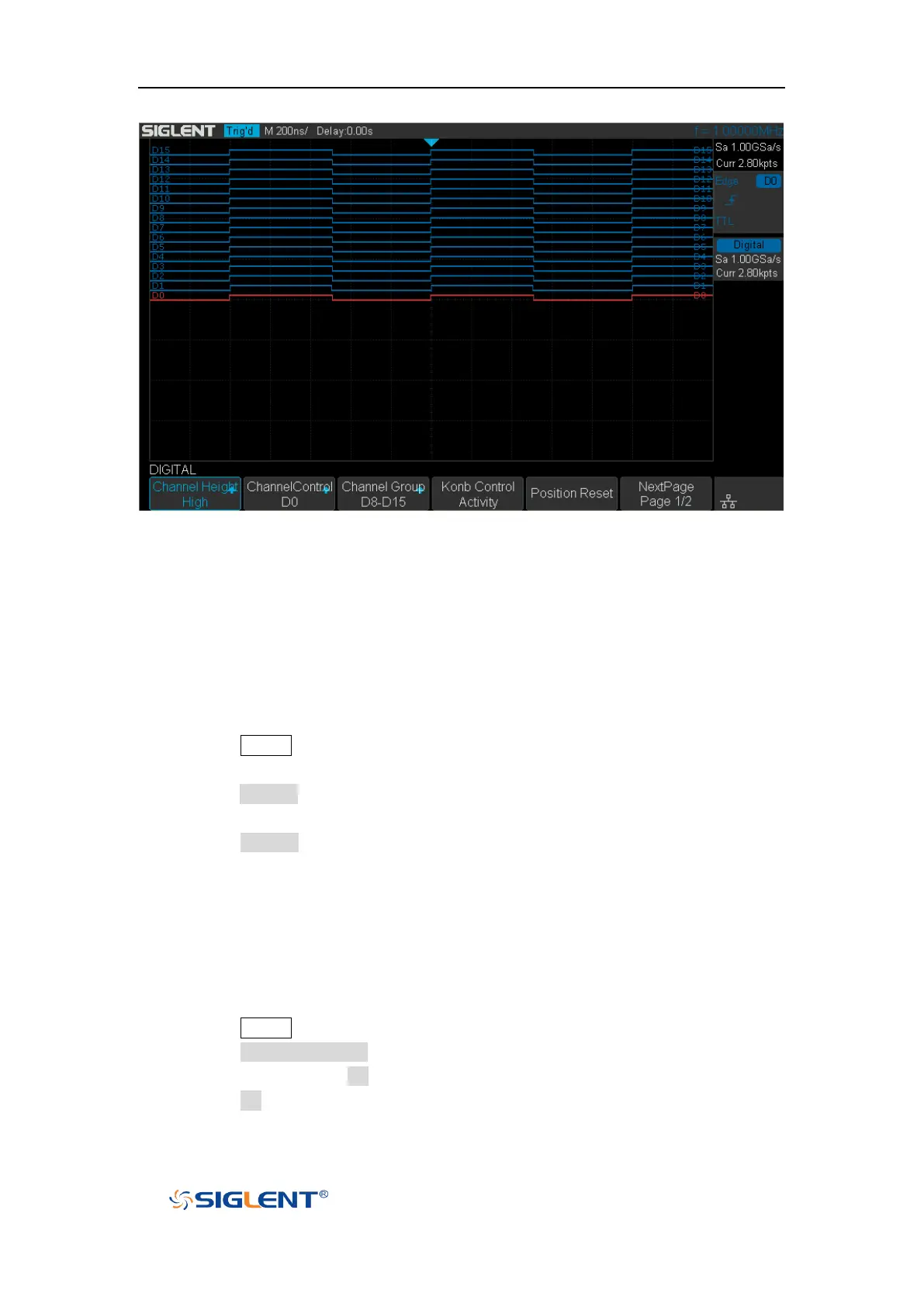

Figure 92 High Display Type
The display type control lets you spread out or compress the digital traces vertically on the
display for more convenient viewing.
Digital Channels Position
1. Press the Digital button on the front panel to open the DIGITAL function menu and
display the digital channel waveforms.
2. Press the Control softkey select the Active then turn the Universal Knob to select the
channel that you wish to reposition. The selected waveform is highlighted in red.
3. Press the Control softkey select the Position then turn the Universal Knob to move
the selected channel to any position.
Single Digital Channel
1. Press the Digital button on the front panel to open the DIGITAL function menu.
2. Press the Channel Control softkey, then turn the Universal Knob to select the
desired channel such as Dx and push down the knob to confirm.
3. Press the Dx softkey to select On or Off to switch the selected channel on or off.
