SDS1000X-E User Manual
194

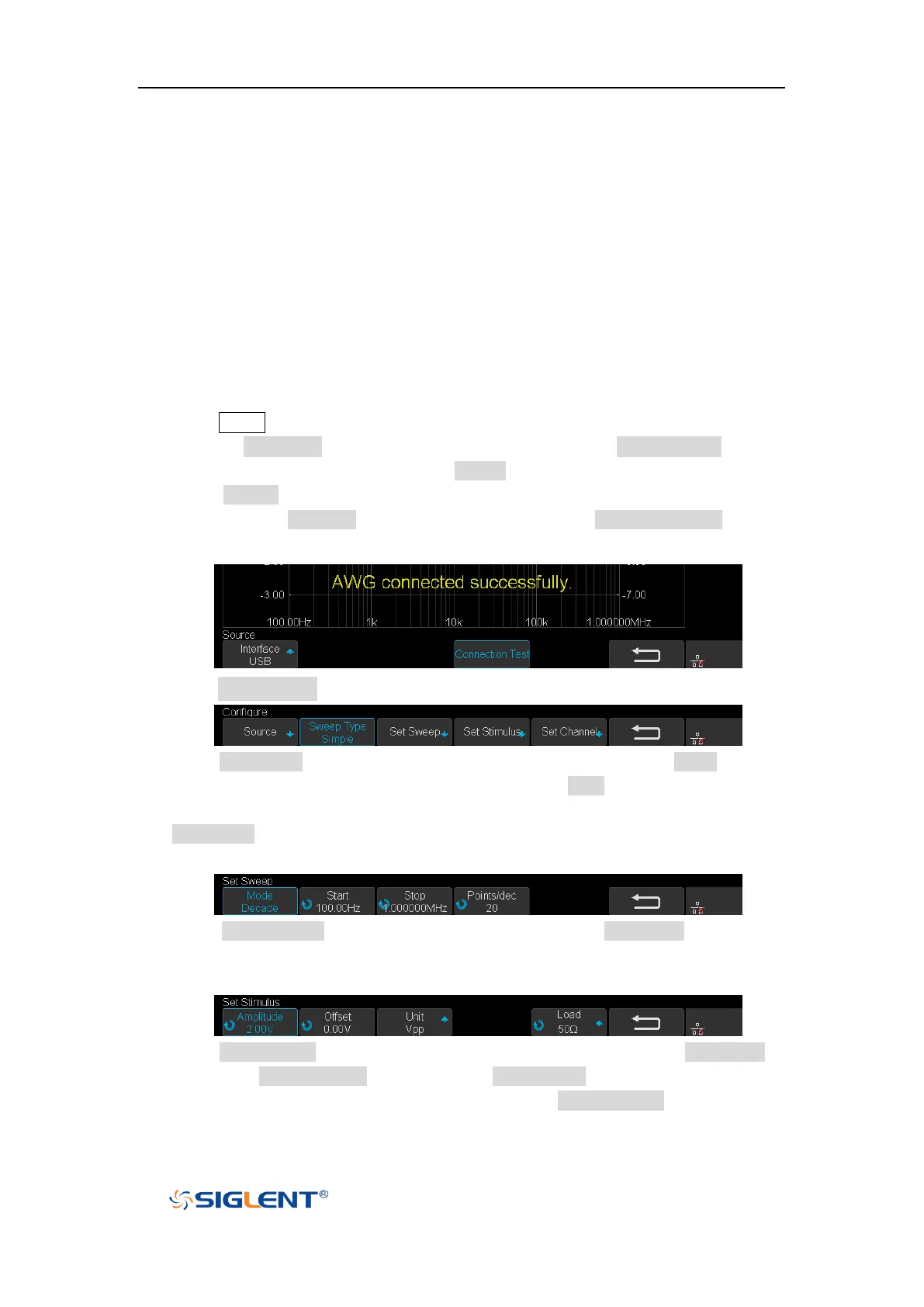

Example
The following are examples to familiarize you with bode plot.
Simple Sweep Operation
Vari-level Sweep Operation
Simple Sweep Operation
1. Press Utility button on the front panel to enter the UTILITY function menu, and then
press the Next Page soft key to enter the second page. Press Bode Plot Ⅱ to enter
the BODE PLOT function menu. Press Config to enter Configure menu.
2. Press Source to enter Source menu to select the waveform generator. In this
example, press Interface to select “USB”, and then press Connection Test to verify
setting. Then return to the Configure menu.
3. Press Sweep Mode to select “Simple”.
4. Press Set Sweep to enter Set Sweep menu. In this example, press Mode to select
“Decade” to sweep frequency logarithmically. Press Start and use the Universal
Knob to set the start frequency to 100 Hz. Then set stop frequency to 1 MHz. Press
Points/dec and use the Universal Knob to set the frequency point to 20 points per
decade. Then return to the Configure menu.
5. Press Set Stimulus to enter Set Stimulus menu. Press Amplitude and use the
Universal Knob to set the signal amplitude to 2 V. All the other options remain their
default setting. Then return to the Configure menu.
6. Press Set Channel to enter Set Channel menu. In this example, set DUT Input to
“CH1”, and DUT Output 1 to “CH2”. Other DUT Output remains “None”. Since we
want to maximize measurement dynamic range, set Channel Gain to “Auto”. Then
return to the Configure menu.
