SIGLENT TECHNOLOGIES SDS1104X-E User Manual

SDS1000X-E User Manual
23
WWW.SIGLENT.COM

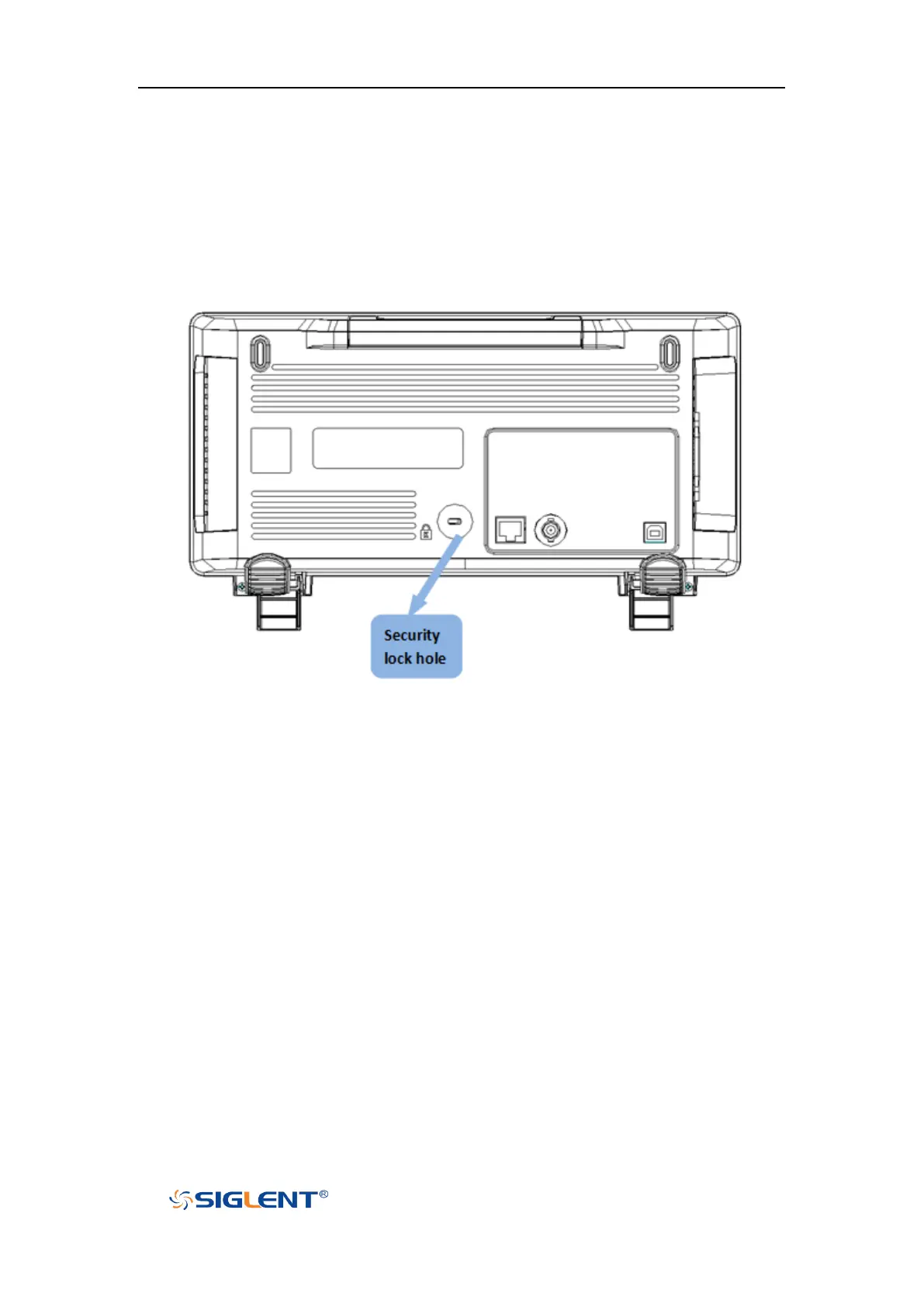

Security Lock
If needed, you can use the security lock (please buy it yourself) to lock the oscilloscope to
a fixed location. The method is as follows, align the lock with the lock hole and plug it into
the lock hole vertically, turn the key clockwise to lock the oscilloscope and then pull the
key out.
Figure 14 To Use The Security Lock
