SDS1000X-E User Manual
191
Connect the oscilloscope and the external AWG via LAN.
If LAN is selected, press the Set IP softkey, and set the IP of AWG in the
pop-up dialog box.
Press the Connection Test softkey to check the connection.
2) Press the Sweep Type softkey to select Simple or Vari-level. Press the Set
Vari-level softkey to enter the VARI-LEVEL menu.

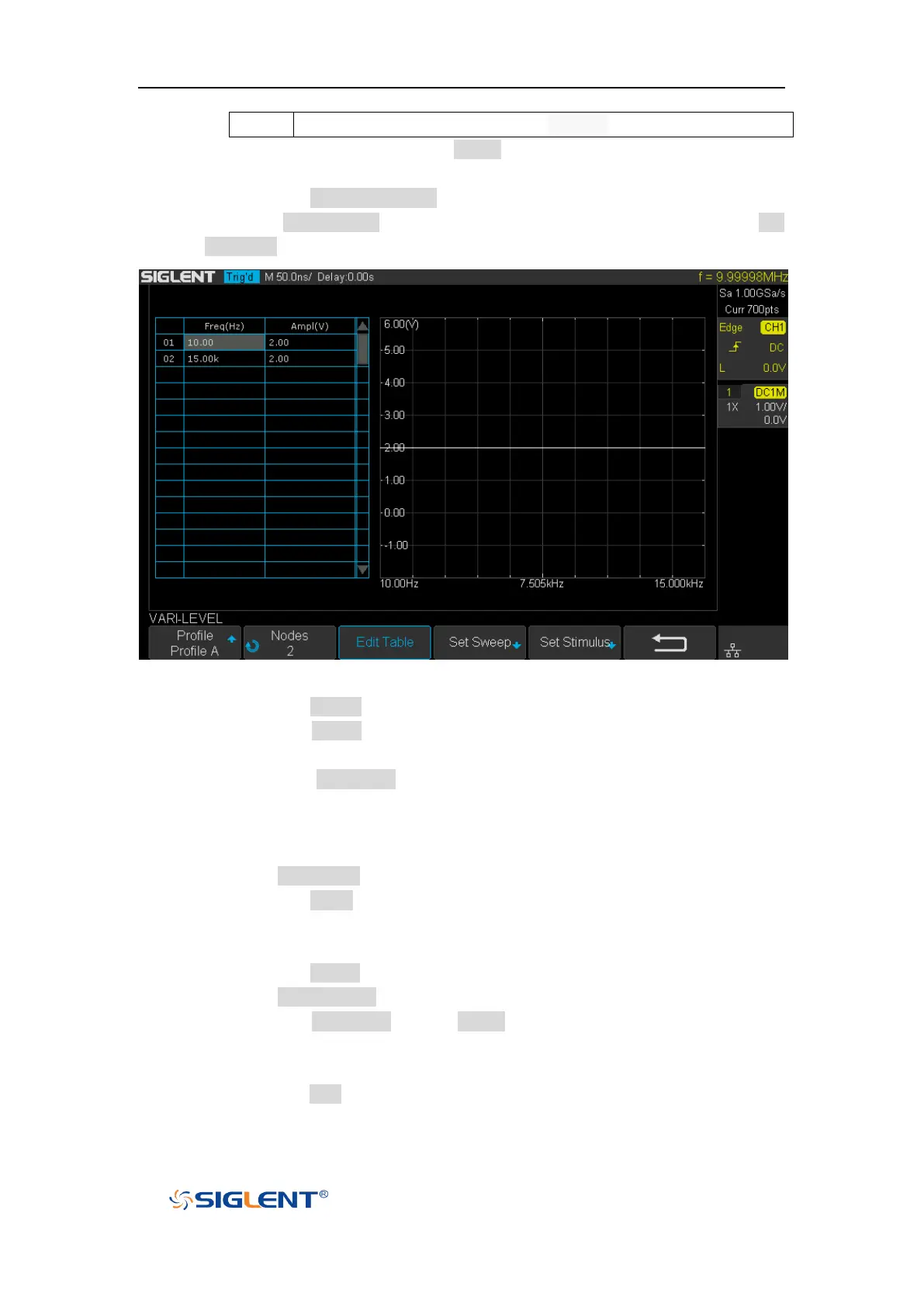

Figure 119 VARI-LEVEL Menu
Press the Profile softkey to select the profile (Profile A~ Profile D).
Press the Nodes softkey and turn the Universal knob to set the number of
nodes.
Press the Edit Table softkey continuously to select the cell and turn the
Universal knob to select the line. When the cell is selected, set the value by
using the universal knob or virtual keyboard. "Freq" indicates the scanning
frequency value while "Ampl" indicates the scanning amplitude.
3) Press the Set Sweep softkey to enter SET SWEEP menu.
Press the Mode softkey to select the sweep mode.
Linear: it is necessary to set the center frequency and span frequency
Decade: it is necessary to set the start frequency and stop frequency.
Press the Points softkey to set the sweep resolution.
4) Press the Set Stimulus softkey to enter STIMULUS menu.
Press the Amplitude softkey (Offset softkey) and turn the Universal Knob
to set the amplitude, or press the Universal Knob directly to enter the
parameter value in the pop-up virtual keyboard.
Press the Unit softkey and turn the Universal Knob to select the unit type. It
contains 6 types of Vpp, Vrms, dBV, dBu, dBm, Arbitrary dB. When the unit
type is dB, it is necessary to set the reference level.
