SIGLENT TECHNOLOGIES SDS1104X-E User Manual

SDS1000X-E User Manual
192
WWW.SIGLENT.COM
 Press the Load soft key to switch the load between 50Ω, 75Ω, 600Ω, Hi-Z. It
also can turn the Universal Knob to set the load value.
5) Press the Set Channel softkey to enter the SET CHANNEL menu.
 Press the DUT Input softkey to select the corresponding input signal
channel. Press the DUT Output 1 soft key to select the corresponding
output signal channel, and support up to 3 channels as the signal output.
 Press the Channel Gain softkey continuously to select the gain type as
“Hold” or “Auto”.
2. Press the Display soft key to enter the DISPLAY menu. The display menu displays
the configuration related to bode plot interface.

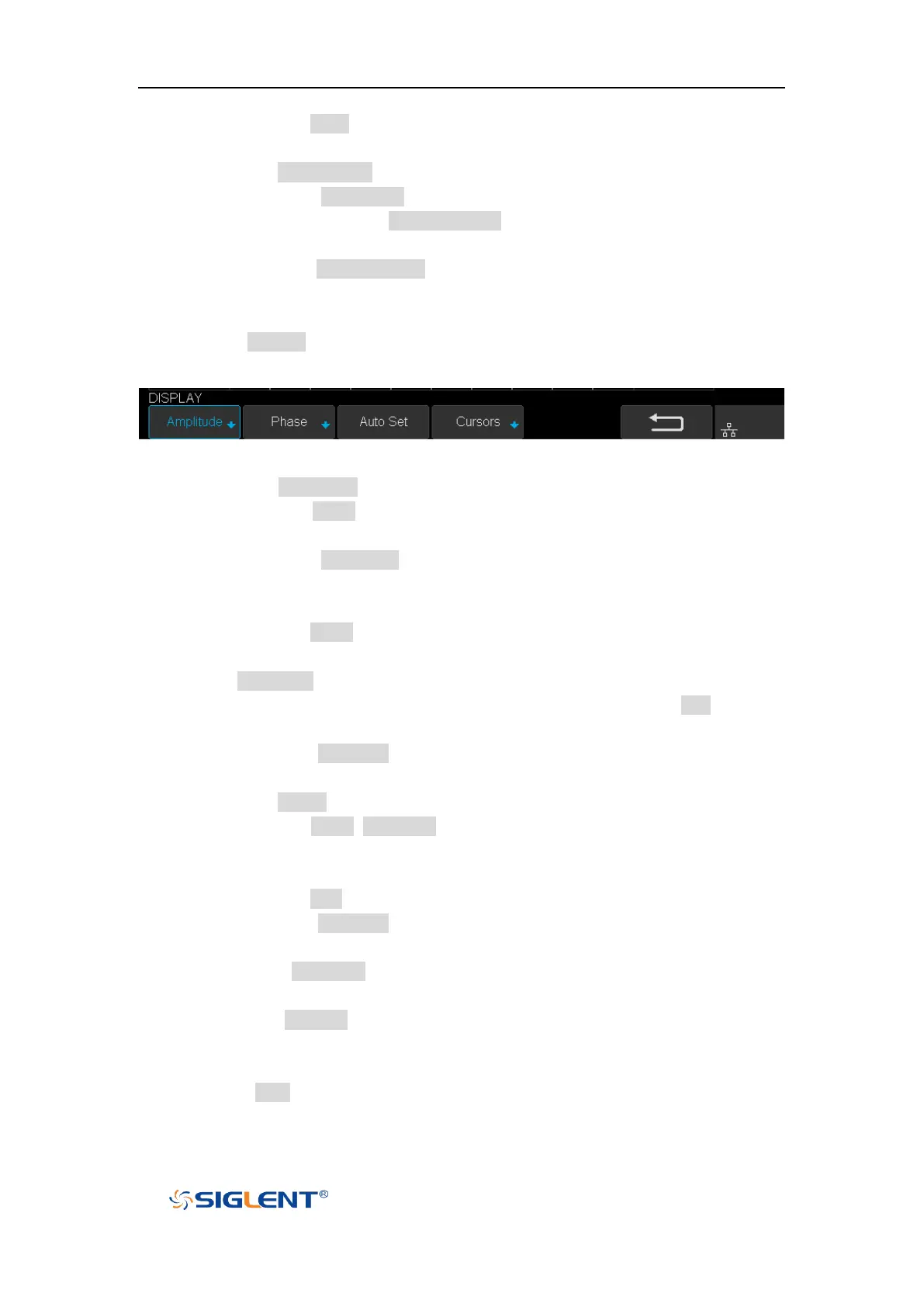

Figure 120 DISPLAY Menu
1) Press the Amplitude softkey to enter the AMPLITUDE menu.
 Press the Scale softkey and turn the Universal Knob to set the amplitude
display scale.
 Press the Ref Level softkey and turn the Universal knob to set the
amplitude display reference level, or press the Universal knob directly to
enter the value in the pop-up virtual keyboard.
 Press the Mode softkey to set the display mode of the amplitude.
Vout/Vin: display the ratio of the DUT output to the DUT input. Press the
Axis Type softkey to set the vertical axis to logarithmic or linear.
Vout: display the DUT output voltage value directly. Press the unit softkey to
set the unit type to Vpp, Vrms, dBV, dBu, dBm, or Arbitrary dB.
 Press the Auto Set softkey to automatically adjust the vertical direction
parameters based on the Bode plot data.
2) Press the Phase softkey to enter the PHASE menu.
 Press the Scale (Ref Level) softkey and turn the Universal Knob to set the
phase display scale (phase display reference level), or press the Universal
Knob directly to enter the value in the pop-up virtual keyboard.
 Press the Unit softkey continuously to switch the phase unit to Deg or Rad.
 Press the Auto Set softkey to automatically adjust the vertical direction
parameters based on the Bode plot data.
3) Press the Auto Set softkey to automatically adjust the vertical direction
parameters based on the Bode plot data.
4) Press the Cursors soft key to enter the CURSORS menu. See the chapter
"Cursor" for details.
3. Press the Data softkey to enter the DATA menu. The data menu displays the
configurations of bode plot measurement results.
