4007ES Panel Programmer Manual (579-1167)
Custom Control, Continued
Step 3. Selecting
Self-Test
Triggering Point
and Point List
1. In Self-Test Triggering Point, click Select Pseudo Point to choose a pseudo point that will
be used to activate Self-Test (Figure 9-43).
2. Inside Self-Test Options, click Select Point List to choose the points list for Self-Test.
In Volume select whether horns on sounder devices will be disabled during Self-Test.
In Trouble on Fail select yes or no to choose if a trouble will be generated if self-test fails.
Click Next.
3. In the summary screen that appears, ensure that all of the settings are configured correctly
and click Finish to complete the Self-Test Wizard. Table 9-7 lists all the default values for
the Scheduled Self-Test Wizard.

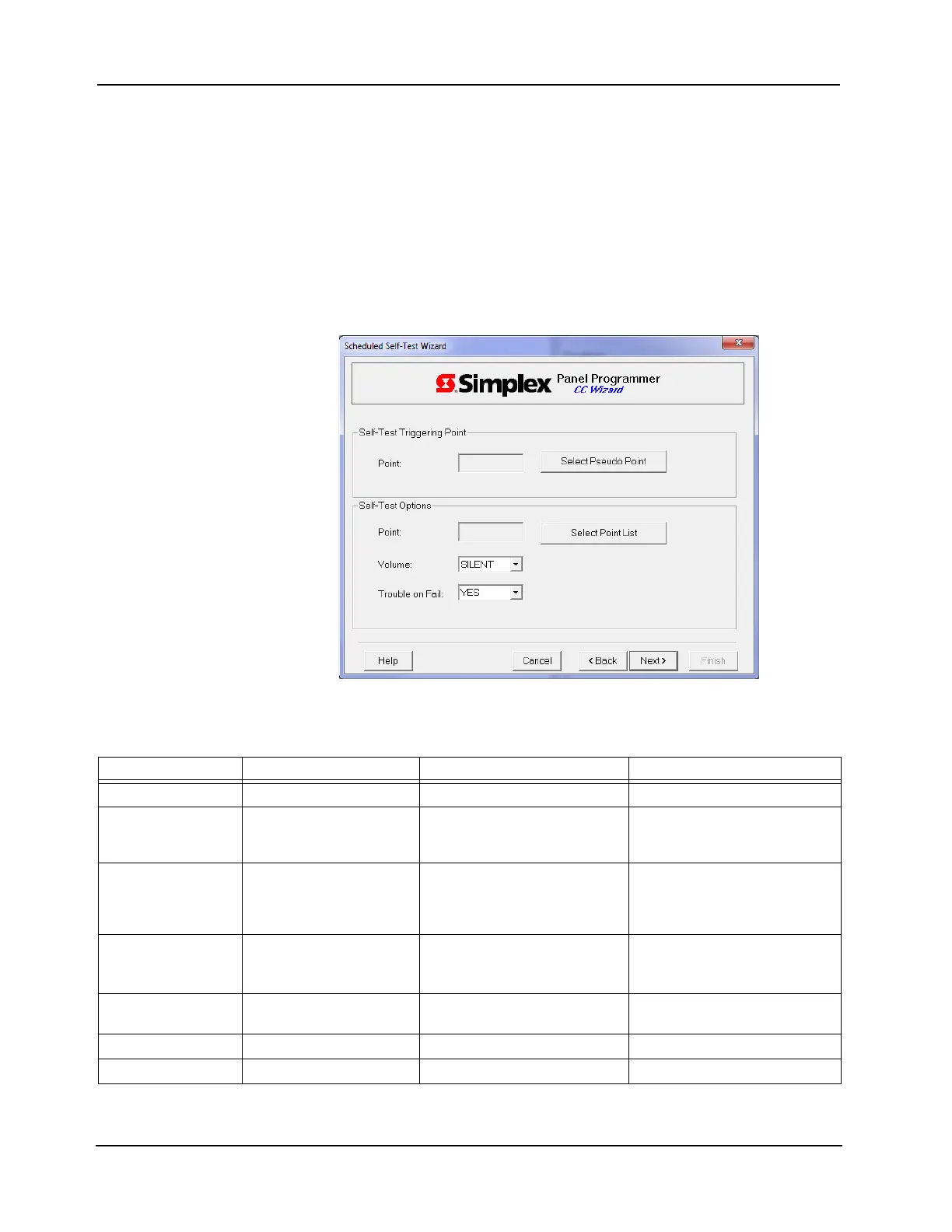

Figure 9-43. Self-Test Triggering Point and Point List
Table 9-7. Default Values for the Self-Test Wizard Settings
Setting Value User Options Input Validation
Self-Test Time 2:00 am User can edit hour and minute
Weekly No day selected
User cannot continue to next page
while no day is checked. User can
select more than one day.
Monthly
Two options:
• Day 1 of each month
• First Sunday of each month
By choosing the second option, the
user can configure the test not to
execute every month; quarterly or
biannual execution.
Input validation required as the
number of days varies from 28 to 31.
Yearly
Two options:
• First of January
• First Sunday of January
Two options for the user to select
between the date or day of the
week.
Input validation required. A Self-Test
schedule with the wizard will be
executed at least once a year.
Triggering Point and
Self-Test Options
Triggering or point list not
selected by default
User cannot continue to next page if
a point list is not selected.
Volume NORMAL
Trouble on Fail NO
