11
3 - DESCRIPTION OF THE MACHINE
The FP6000 - FP6000CS -
FP8000CS series is especially
recommended for bagging
individual packs or group of
products in a single package by
using centre-folded film thanks
to L-sealing made with a
sealing bar.
The machine can also be
supplied with the heat-shrink
tunnel to be installed in the
outfeed as shown in the figure.

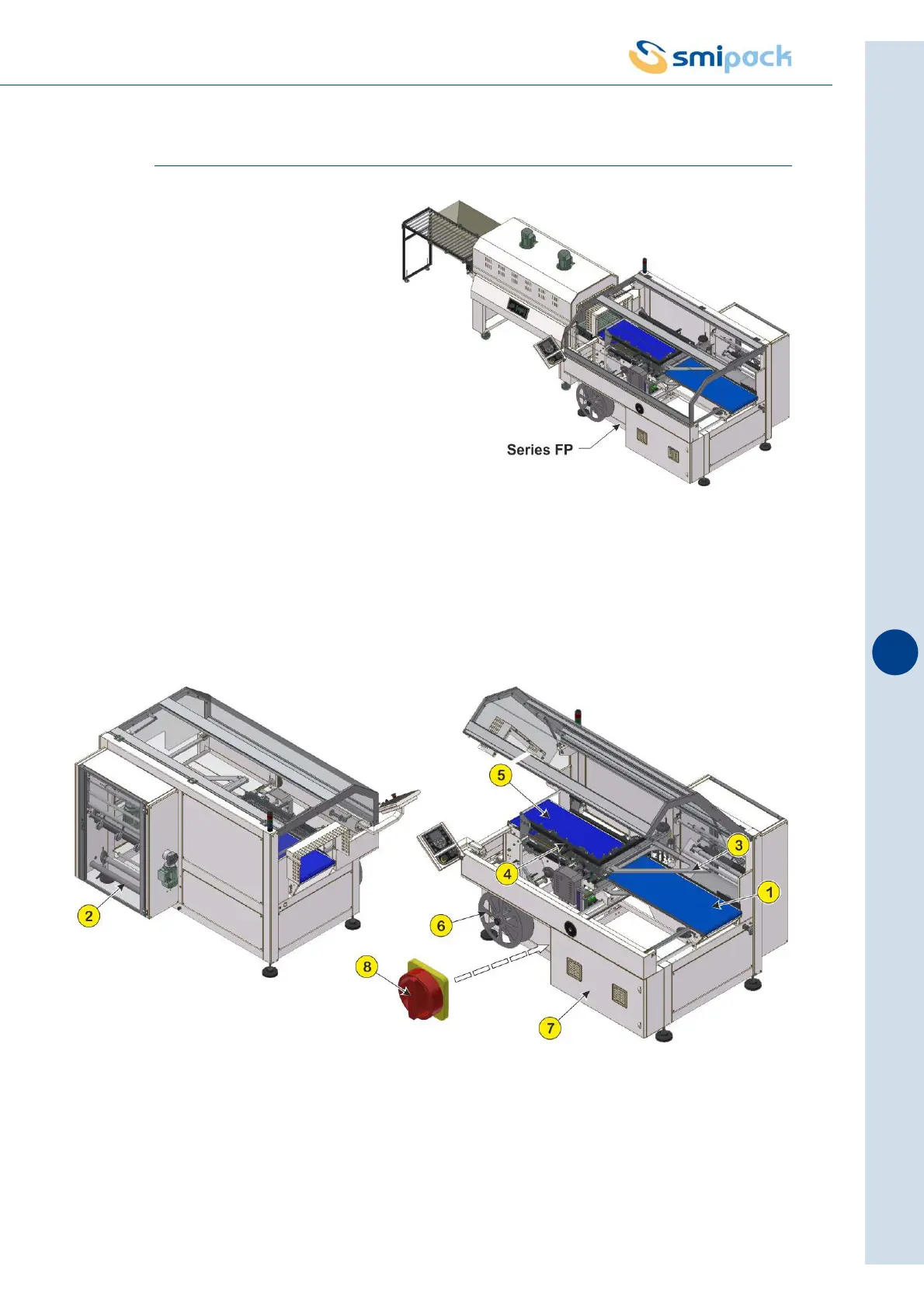

3.1 Machine components
The main groups that make up the machine and to which reference will be made through the
manual are listed here below:
1 - Infeed belt 6 - Film waste collection device
2 - Reel-holder 7 - Electrical panel
3 - Film conformer 8 - Master switch
4 - Sealing bar
5 - Outfeed belt
