8.2 Positioning the product guide
The product guide (2) keeps the
product at a distance from the side
sealing bar (B1) to avoid problems
concerning film tensioning. This
distance must be increased
proportionally when increasing
height of the product and
increased in the case where the
sealing tends to open.
To achieve this, simply use a no.4 Allen wrench to adjust the product guide (2) by turning the
screws (3)-(4) so that the millimetric lines (X
1
) have the same measuring as millimetric line
(H
1
).

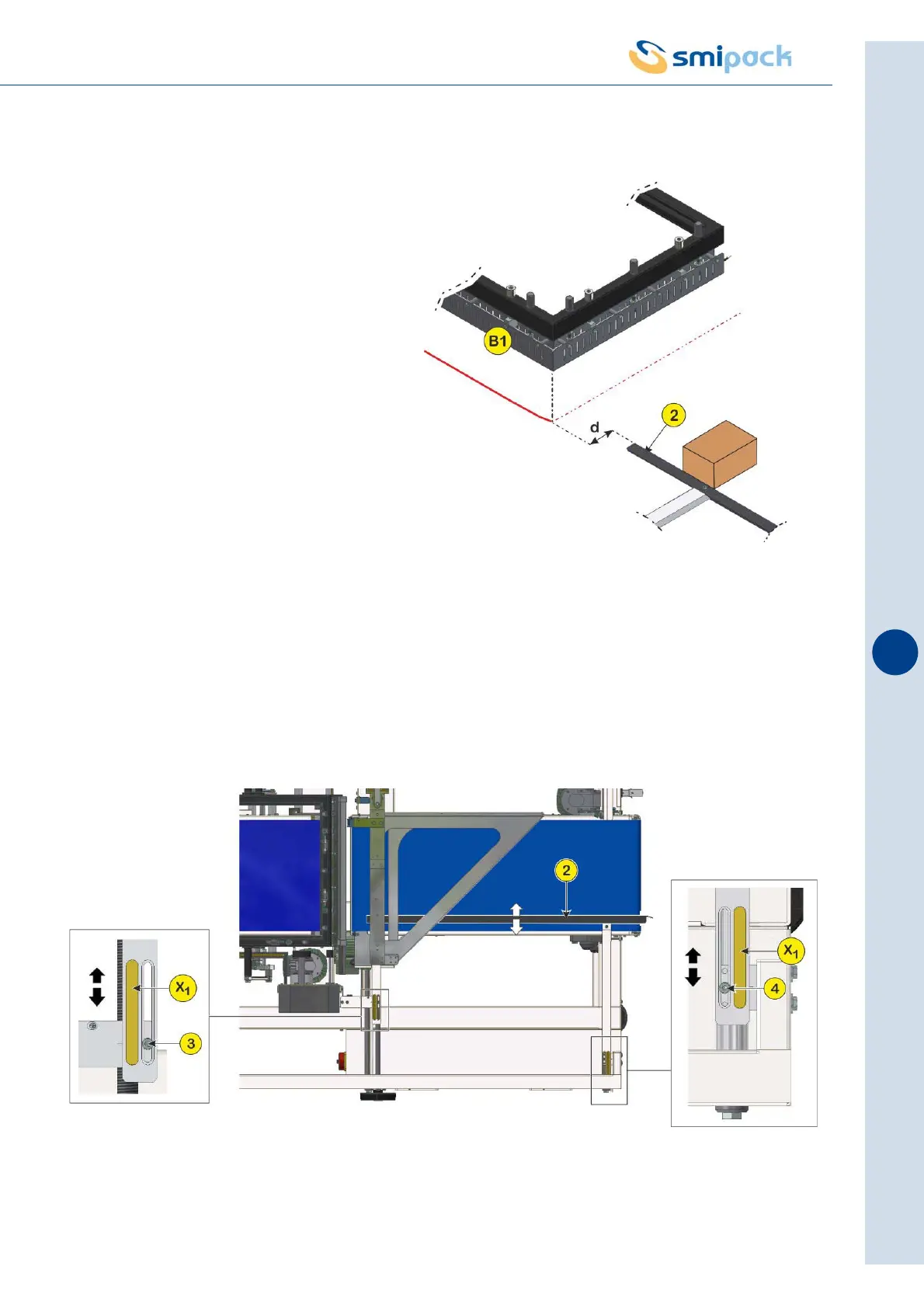

Fig. 8.2.1
Fig. 8.2.2
