Smipack FP6000CS - Operator Panel and Module Descriptions

3 - Description of the machine
12
3.2 Description of the keys on the operator panel
3.3 Description of electronic modules and inverter modules
* “Center sealing“ is only included on models FP6000CS-FP8000CS
a - Display
b - START key
c - STOP key
d - Emergency
e - Selector
f - USB connection
For more information about the
operator panel controls and
operating procedures associated
with the machine's software see the
Chapter 9.
Inverter modules: Electronic modules:
INV. 1/2 - unwinder / infeed belt + center sealing* 1 - FLX MOD DIO 16
INV. 3/4 - sealing bar / outfeed belt 2 - FLX MOD CUS A1
INV. 5/6 - belt approach set-up / film dragging

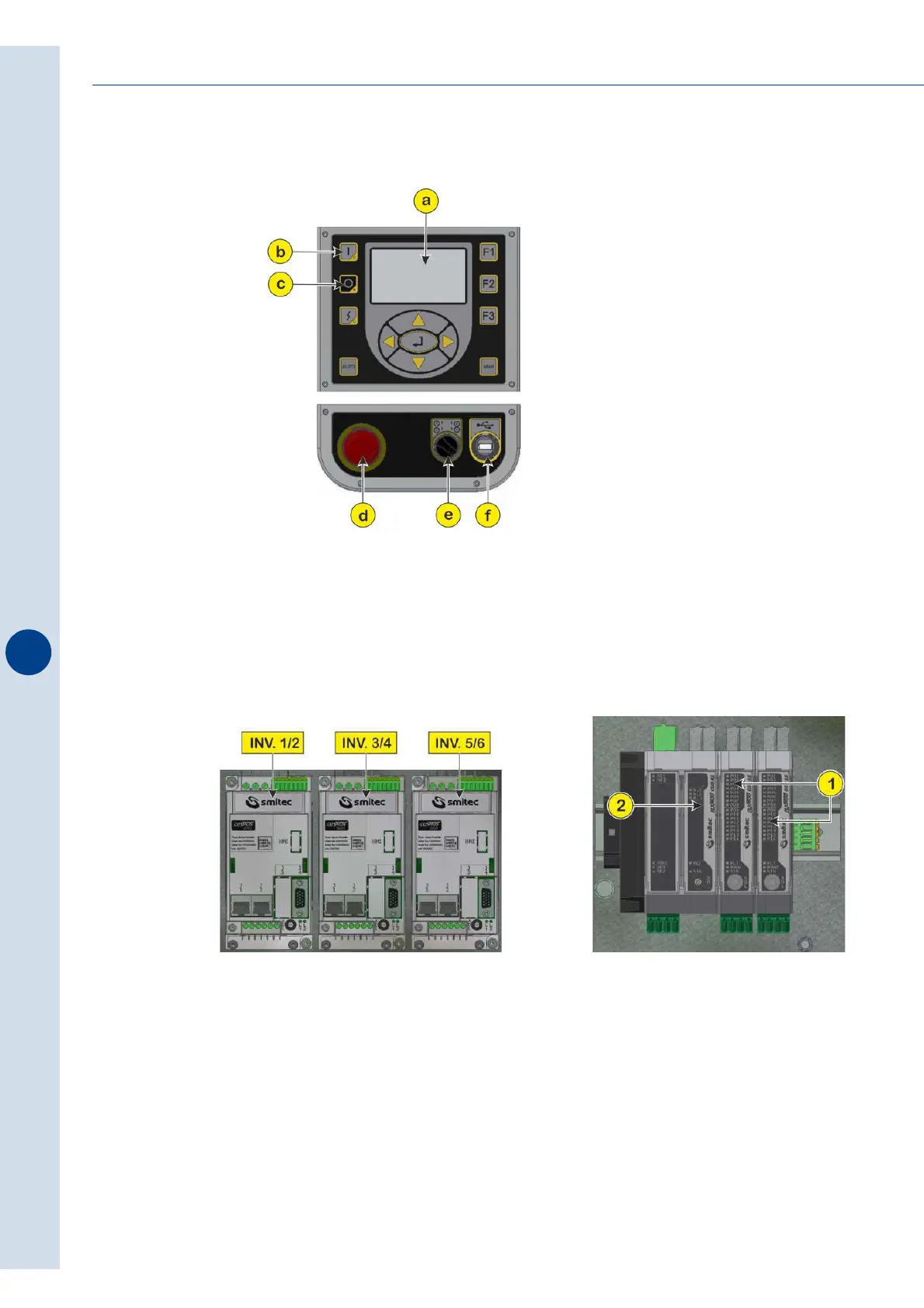

Fig. 3.2.1
Fig. 3.3.1
