7 - USE OF THE MACHINE
7.1 Function description
• In the infeed area the guides provide to channel the loose containers transported by a first
conveyor belt.
• The containers pass under the large metal squares where are wrapped with the film; the
unwinding of the film reel is controlled by a special motor and a tensioning bar unit equipped
with rollers that allows the correct tensioning of the film while another device allows the
drag.
• The start of the packaging cycle is managed by the detecting photocells (horizontal and
vertical) which detect the passage of the product.
• The pack is L-sealed by the sealing bar.
• The waste of the film is dragged and wrapped on a special motorized device.
• The pack is transported by a second conveyor belt towards the outfeed of the machine; if
the machine is connected in the outfeed side with a shrink tunnel, the film will adhere
completely to the product.

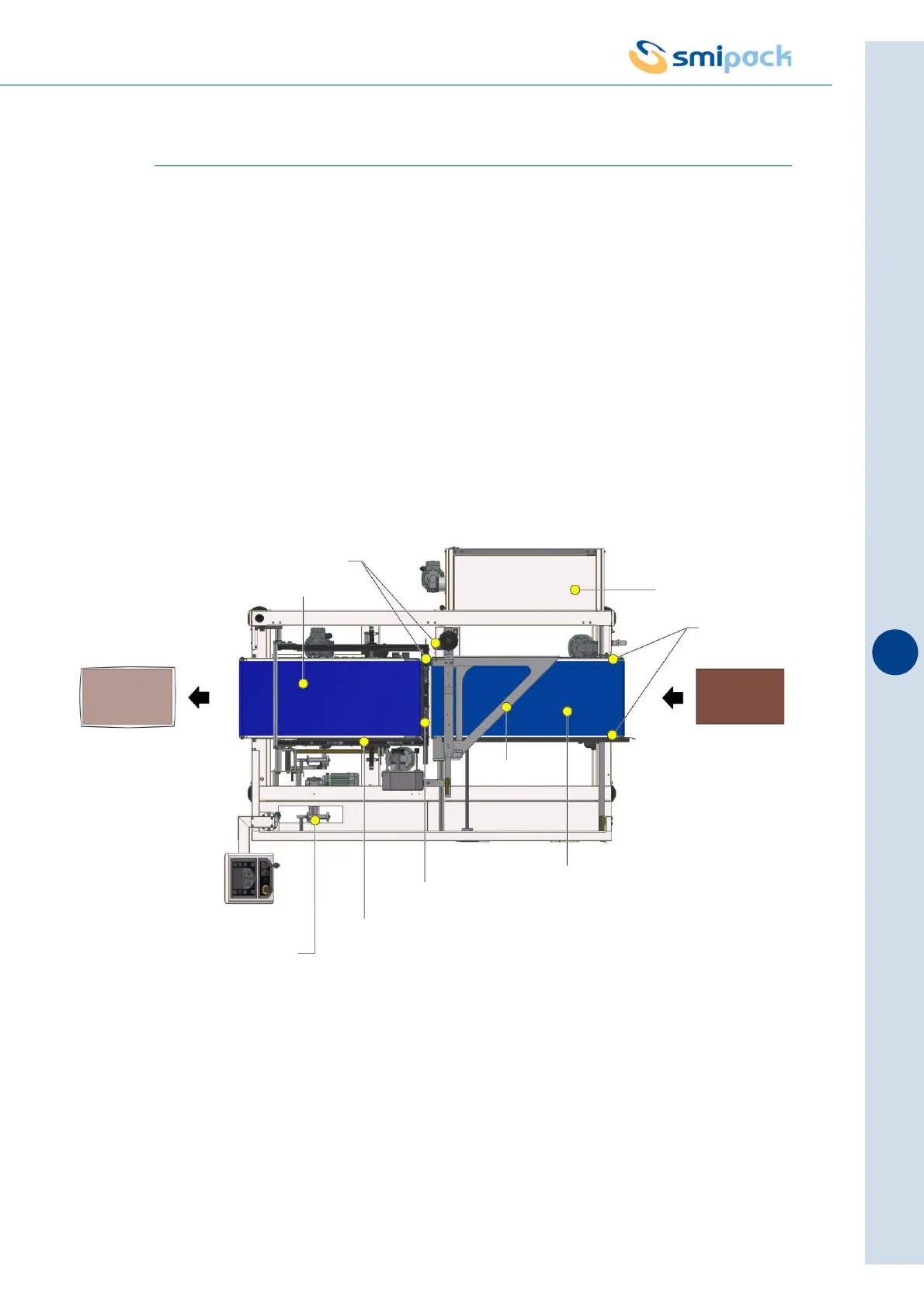

outfeed belt
detecting product photocell
film unwinder
guides
squares
sealing bar B1
sealing bar B2
film waste collection device
infeed belt
Fig. 7.1.1
