• Loosen the screw (14) that secures the arm on which the operator panel is fitted.
• Turn the operator panel towards the outside of the machine as shown in picture 6.6.6 and
then secure the arm in this position, again using the screw (14).
• Finally, fit the roller (16) on the rod (N) securing it with the specific grub screw provided.

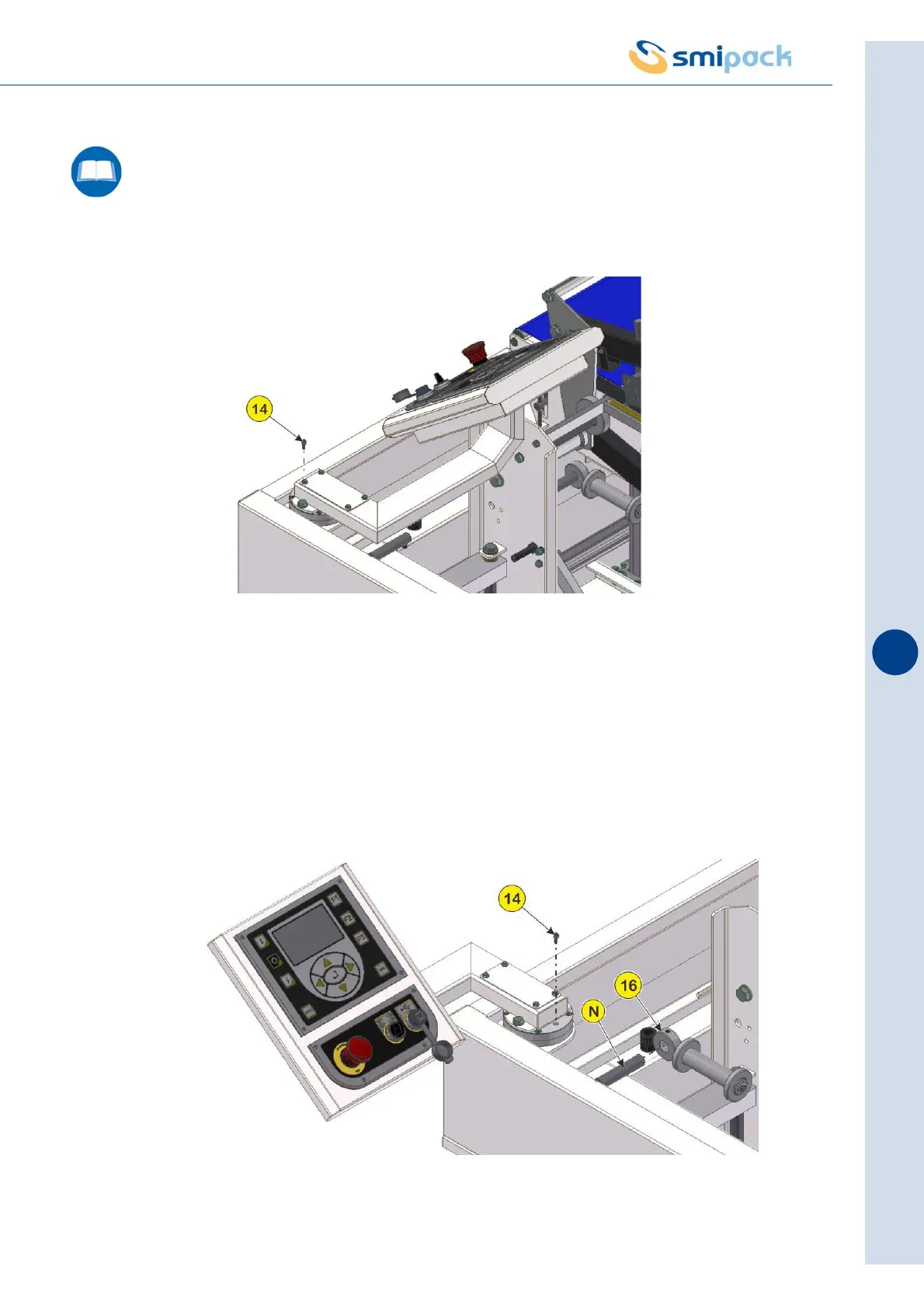

Fig. 6.6.5
Fig. 6.6.6
