53
>FP6000CS - FP8000CS

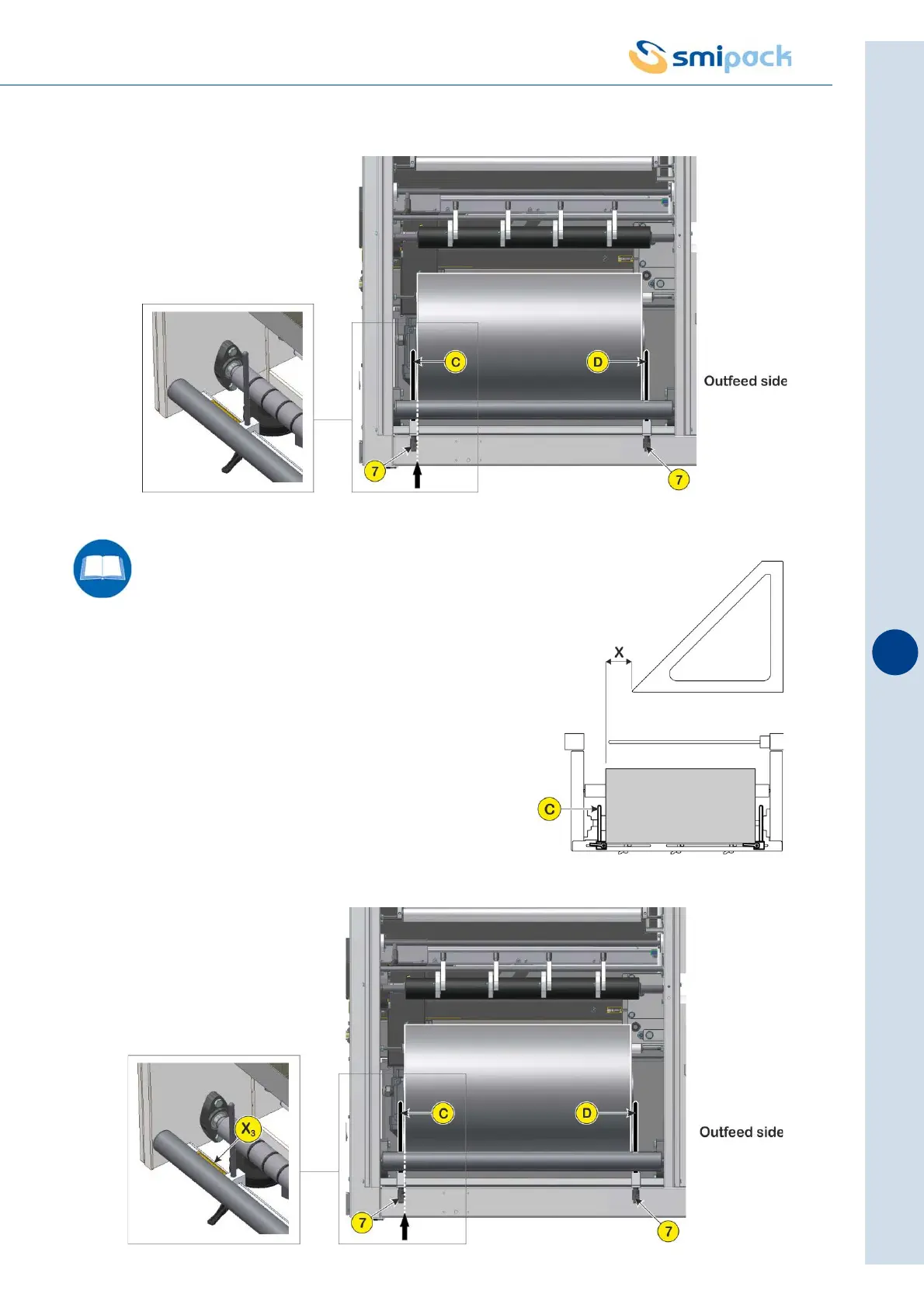

Adjust the stop (C) so that the end of the film reel is
placed respect on the millimeter ruler (X
3
) at the
same value obtainen on the millimeter ruler (H
1
).
With this adjustment is obtained a distance “X”,
between the tip of upper square and the end of the
film reel of approximately half the height of the
product to be packaged.
Place the film reel against the stop (C) whit the open
end towards machine outfeed independently of the
unwinding direction and delimiting it on the opposte
sidewith the stop (D). Lock the two stops by means
of the handles (7).
