Solid State Logic Matrix2 Delta

Please note that Matrix is not designed to be hung when set in furniture. The Matrix chassis must always be supported

Appendix B - Technical Specications
127
Matrix
2
Owner’s Manual

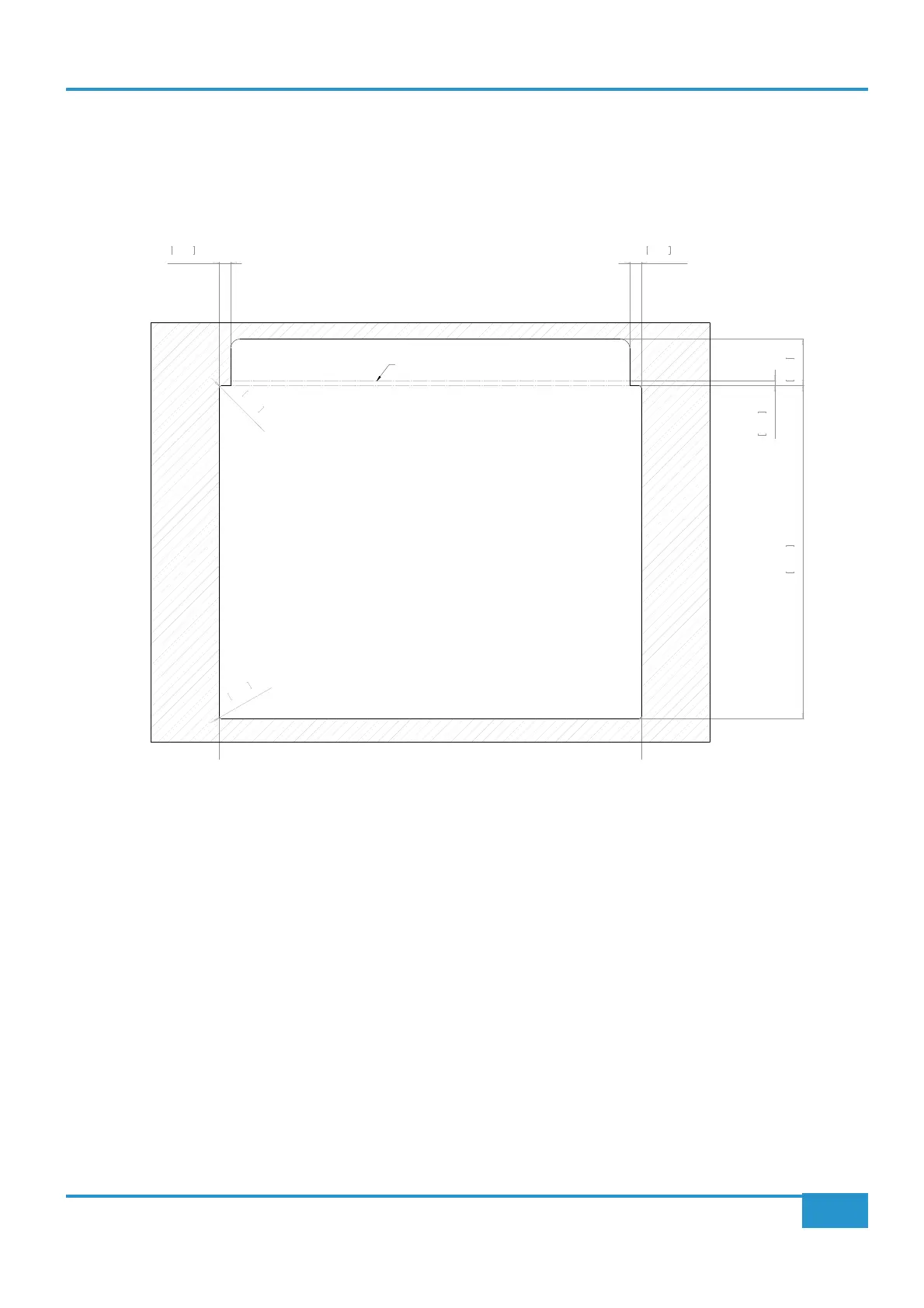

Matrix Tabletop cutout
Dimensions: [ i n c h e s ]
millimeters
100.0
mm
3.937
25.0 mm
0.984
25.0
mm
0.984
715.0
mm
28.150
5.0
mm
0.197
R
5.0
mm
0.197
10.0
mm
0.394
FURNITURE CUTOUT - MATRIX
THIS LINE INDICATES REAR PANEL CONNECTORS
AREA REQUIRED FOR CONNECTORS & CABLES
