Solid State Logic Matrix2 Delta

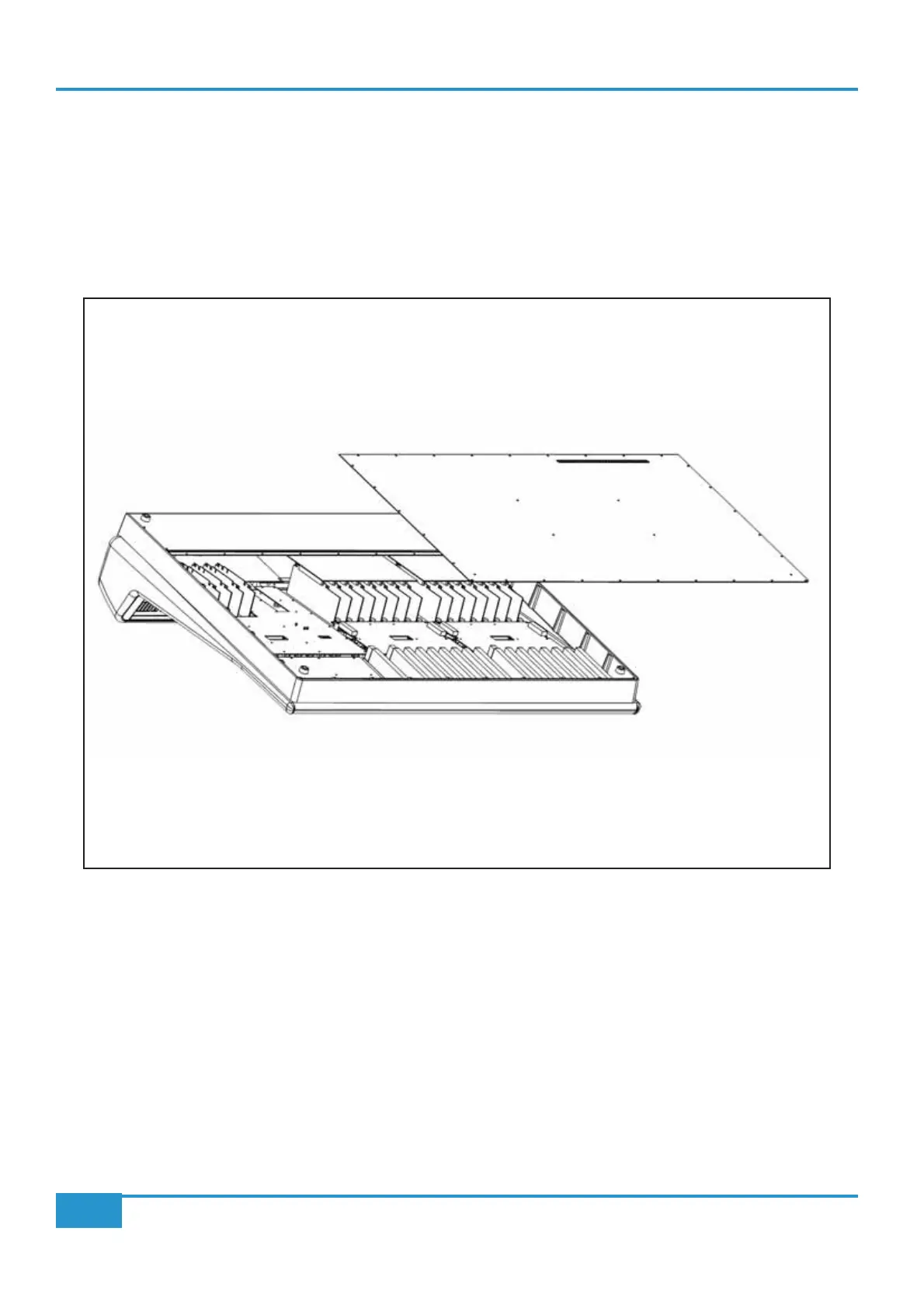

1 - Base Plate Removal
• Remove all external connections to the console.
• Place the console face down on a protective surface.
• Using a #1 Pozidrive screwdriver, remove the 33 pan head Pozi screws from the large base plate, including the four central
screws.
• Remove the baseplate.
Appendix G - Service
146
