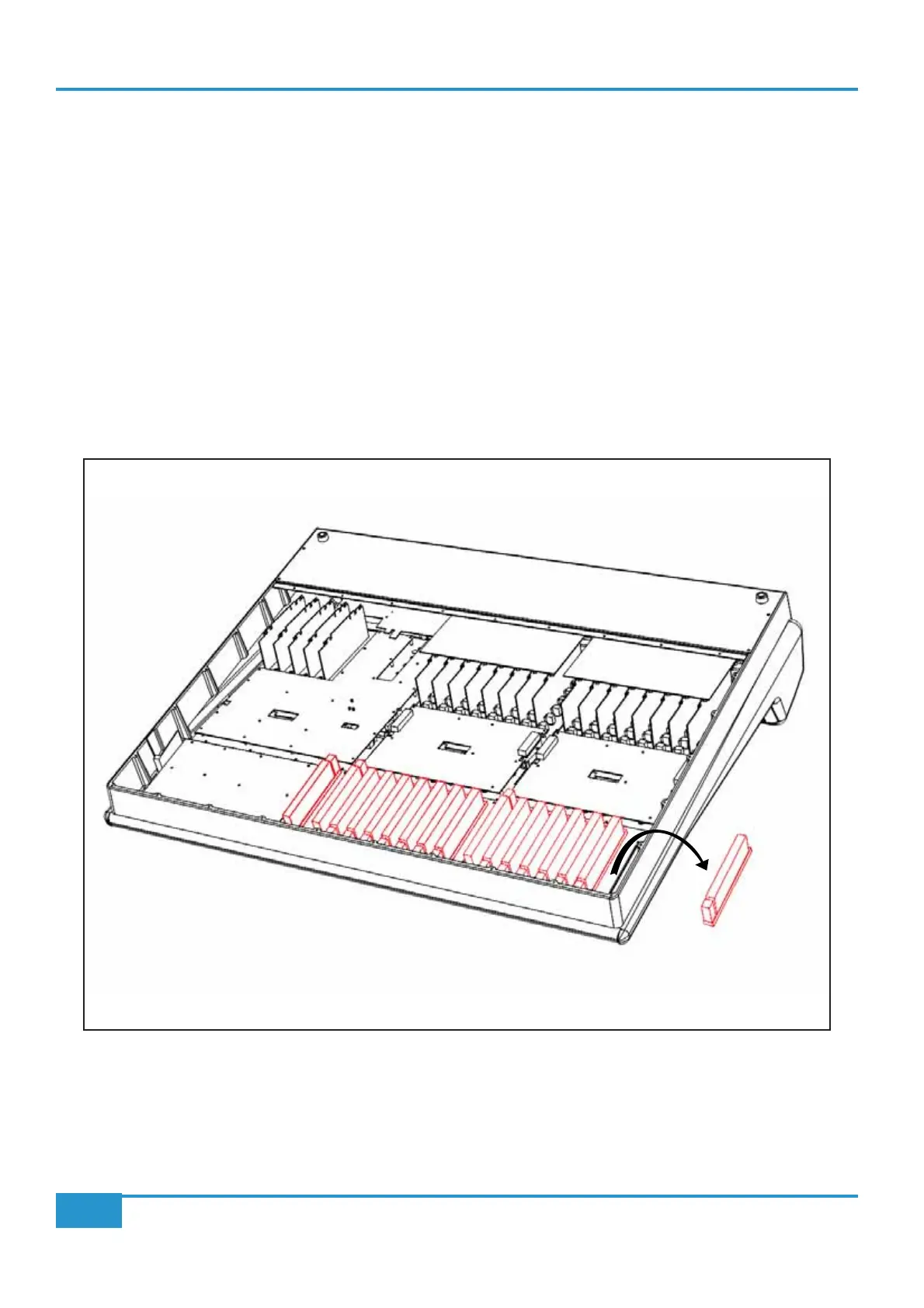

3 - 629940XC Fader Replacement
• Remove fader knob cap from the fader to be replaced.
• Loosen but do not remove the two hex screws located at the top and bottom of the fader on the front panel.
• Follow instruction #1 for base plate removal.
• Unplug the two connectors from the fader to the 629502XA assembly.
• Slide the front of the console over the edge of the work surface to gain access to the faders.
• Remove the two loosened hex screws and remove the fader from the console.
• Fit the replacement part, ensure correct orientation and secure with the two hex screws.
• No user calibration of the fader is required.
