Solid State Logic Matrix2 Delta

9 - 629507XC Motion Control
 


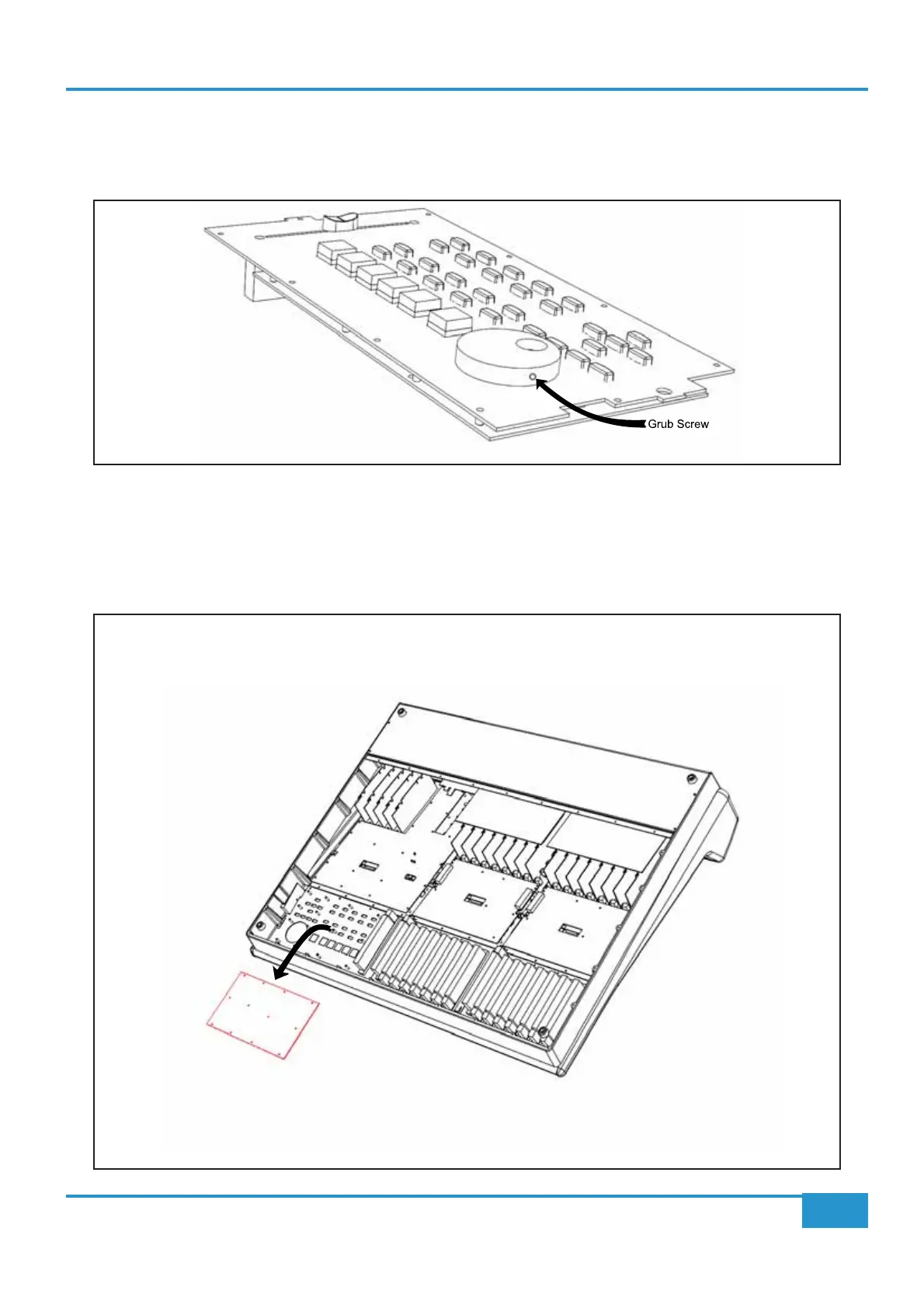

• Follow instruction #1 for the removal of the base plate.
• Disconnect Loom J and the two master fader connections from the motion control assembly.
• Remove the 12 screws securing the motion control assembly to the front plate.
 
