20 - 629512X1 C/S LCD Meters Replacement

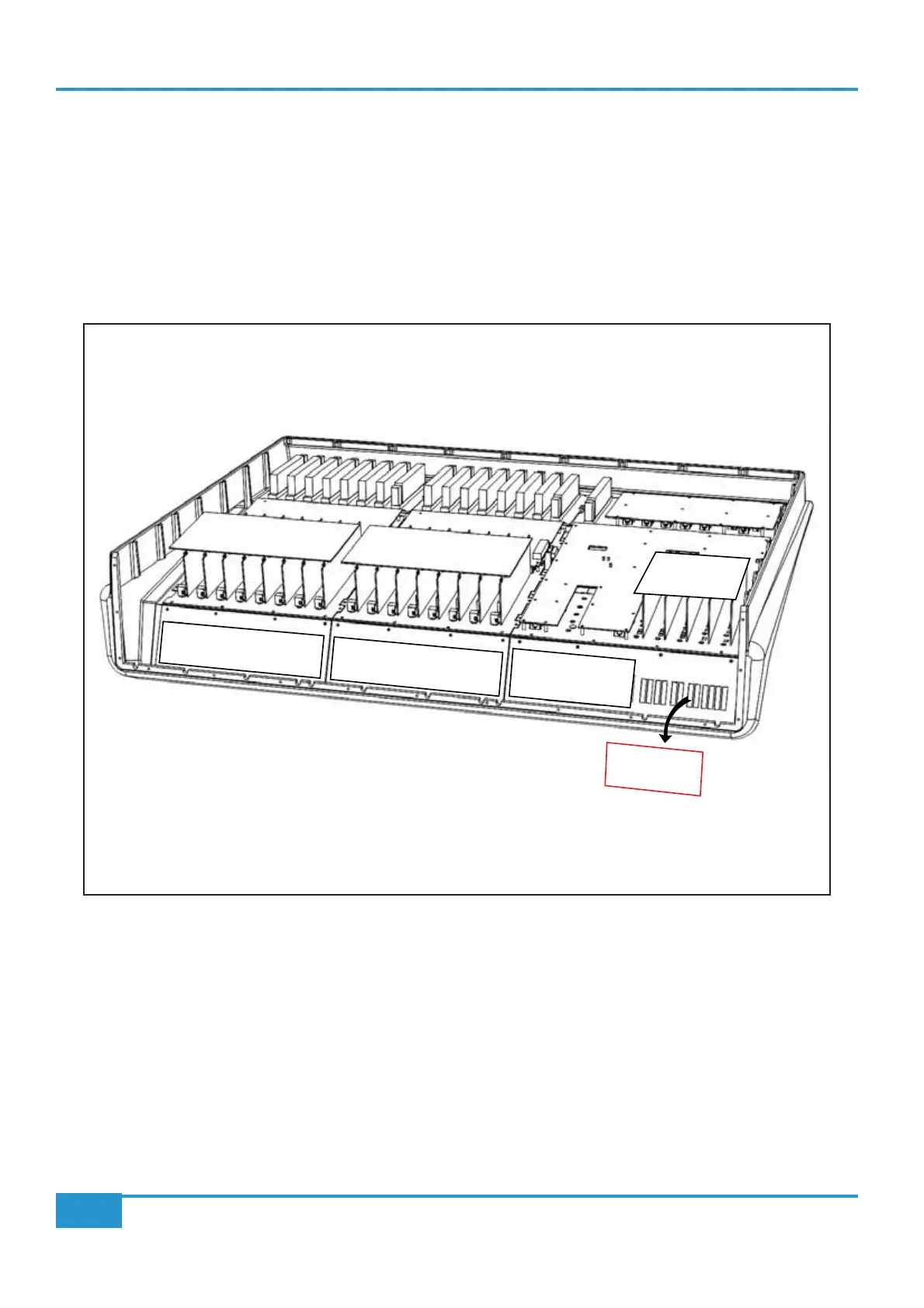

• Follow instruction #2 for removal of the rear connector panel.
• Remove looms AA and Q from the meter assembly.
directly away from the assembly, pulling the connector at an angle may damage the plastic locating pins.
• Remove the four nuts holding the assembly in place using a 5.5mm spanner or nut spinner.
• Fit the replacement assembly and reassemble.
Appendix G - Service
164
Matrix
2
Owner’s Manual
