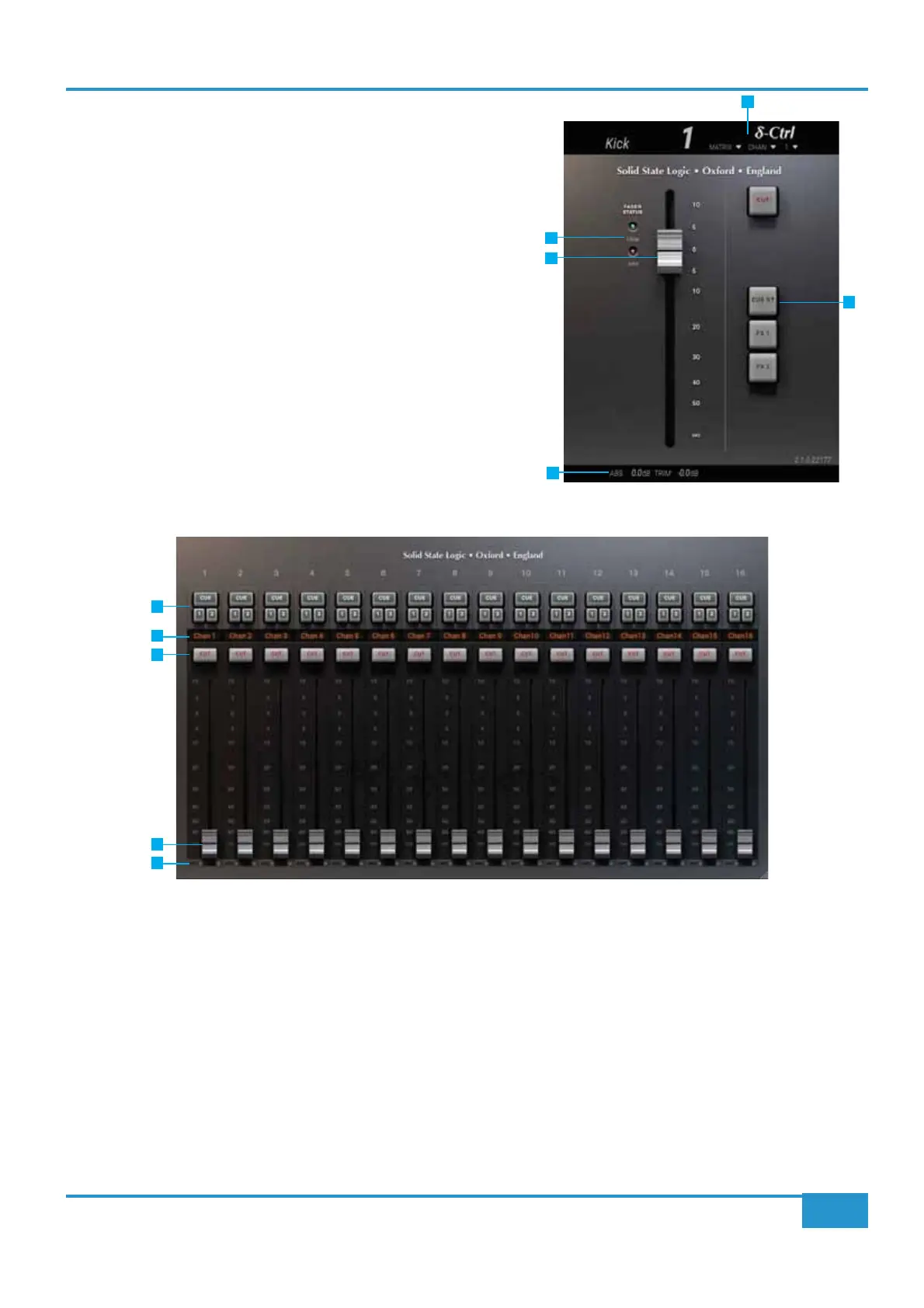

The Single-Fader' Delta Plugin GUI
The SSL Delta Control Plugin GUI
1 Console Type, Console Object (Channel or Bus), & Console Object
Number. Ctrl Click to enable/disable the Auto increment feature.

2 Fader Status - Indicates write status of fader on the console.
3 Fader - Click on Fader and drag to change level. Double click to set
to 0dB. Fader knob will change to gold if Trim has been enabled.
4 Fader Levels for Abs and Trim in dB.
5 Channel Switches - Indicates current switch state. Click on the
switch to toggle console state and write automation.
The 16-Fader Delta Plugin GUI
The SSL Delta Control Matrix Plugin GUI
1 Channel Switches - Indicates current switch state. Click on the switch to toggle console state, and write automation.
2 Channel Label - names as displayed on the console. These displays will illuminate when a parameter is automated and
switch to show dB values when faders are moved.
3 Cut Switch - Indicates current switch state. Click on the switch to toggle console state, and write automation.
4 Fader - Click on Fader and drag to change level. Double click to set to 0dB. Fader knob will change to gold if Trim has
been enabled.
5 Fader Levels for Abs and Trim in dB.
1
2
3
4
5
1
4
5
2
3
