There are four possible outputs from the channel strip:
• The Main Mix stereo bus
• The four Stereo Subgroup busses (A, B, C and D)
• The 48 Multitrack busses
• The channel’s Group Output
Either or both faders can feed the Main Mix bus via the LF MIX and
SF MIX switches at the foot of the channel strip; the other three
outputs each have a source selector.
The Multitrack and Stereo Subgroup busses can be fed by Large or
Small Fader (post pan control) signals, or by one or both of the EFX
ODD/EVEN signals. If one EFX switch is selected, then the
corresponding routing output will be fed in mono by the selected
source. Selecting both switches together will feed EFX ODD to left
(odd) and EFX EVEN to right (even) bus. This enables any two Aux
Send controls to be re-routed to the Multitrack or Stereo busses,
allowing large numbers of separate mixes to be generated without
using the Small Fader.

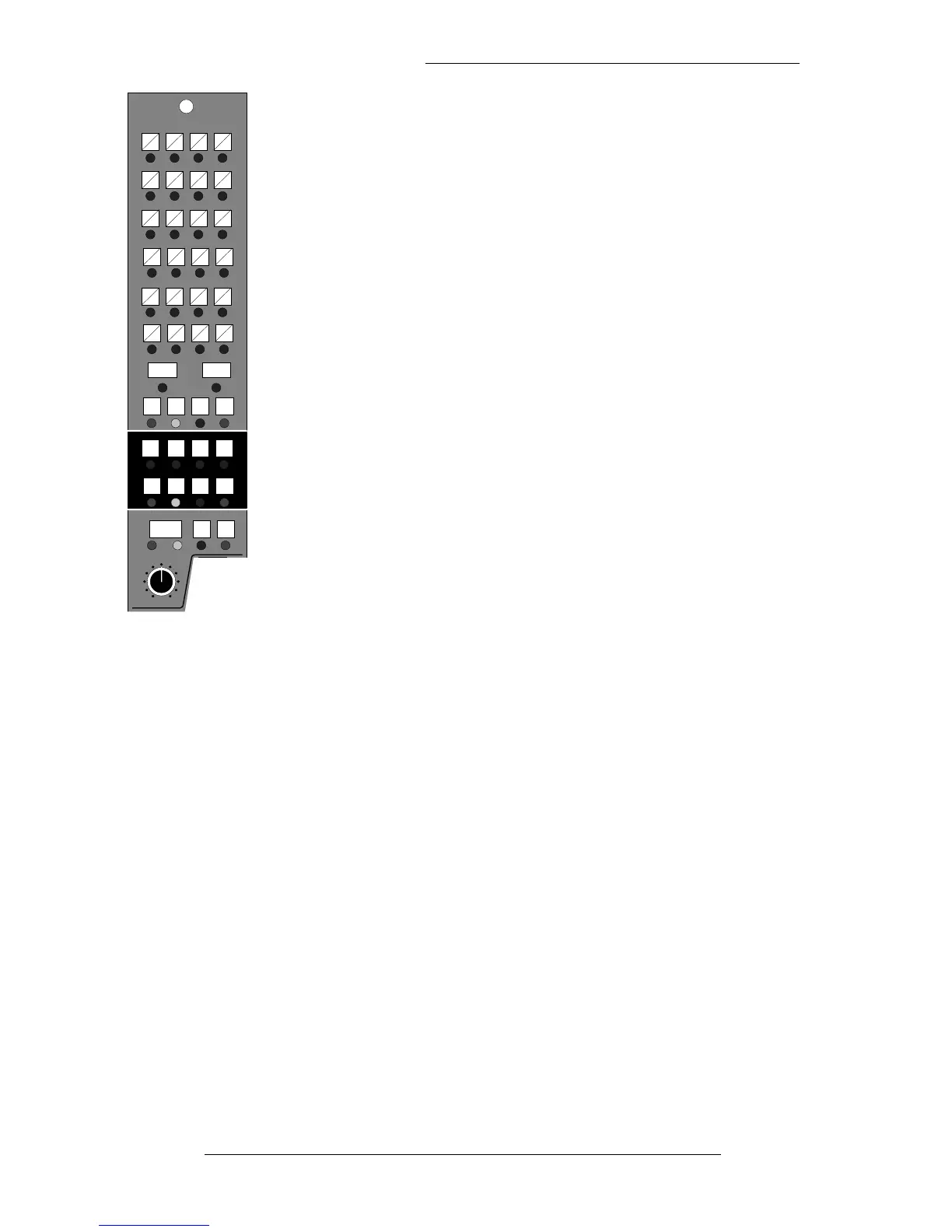

The 48-track routing is accessed via 1-24/25-48 bank select switches
and signals are normally sourced from the Small Fader unless
RECORD/REPLAY + SMALL FADER TO MON(itor) are selected.
The Stereo Subgroup bus routing has no source until one is selected.
The Group Output is normally fed by the multitrack bus Mix Amp, but this can be
replaced with a post-fader channel signal by pressing FADER, or by the EFX ODD or
EFX EVEN signals.
SL 9000 J Console Operator’s Manual
1-6
8.9.94
FLIP
Ø
25/481/24
5678
29 30 31 32
9 10 11 12
33 34 35 36
17 18 19 20
41 42 43 44
21 22 23 24
45 46 47 48
1613 14 15
37 38 39 40
LF SF
EFX EFX
ODD EV
12 3 4
25 26 27 28
A B C D
SUB GP
LINE
dB
SL911
BUS
-30 0
0
STEREO SUB Gp
GROUP
FADER
SF
LF
EFX EFX
ODD EV
EFX EFX
ODD EV
48V
