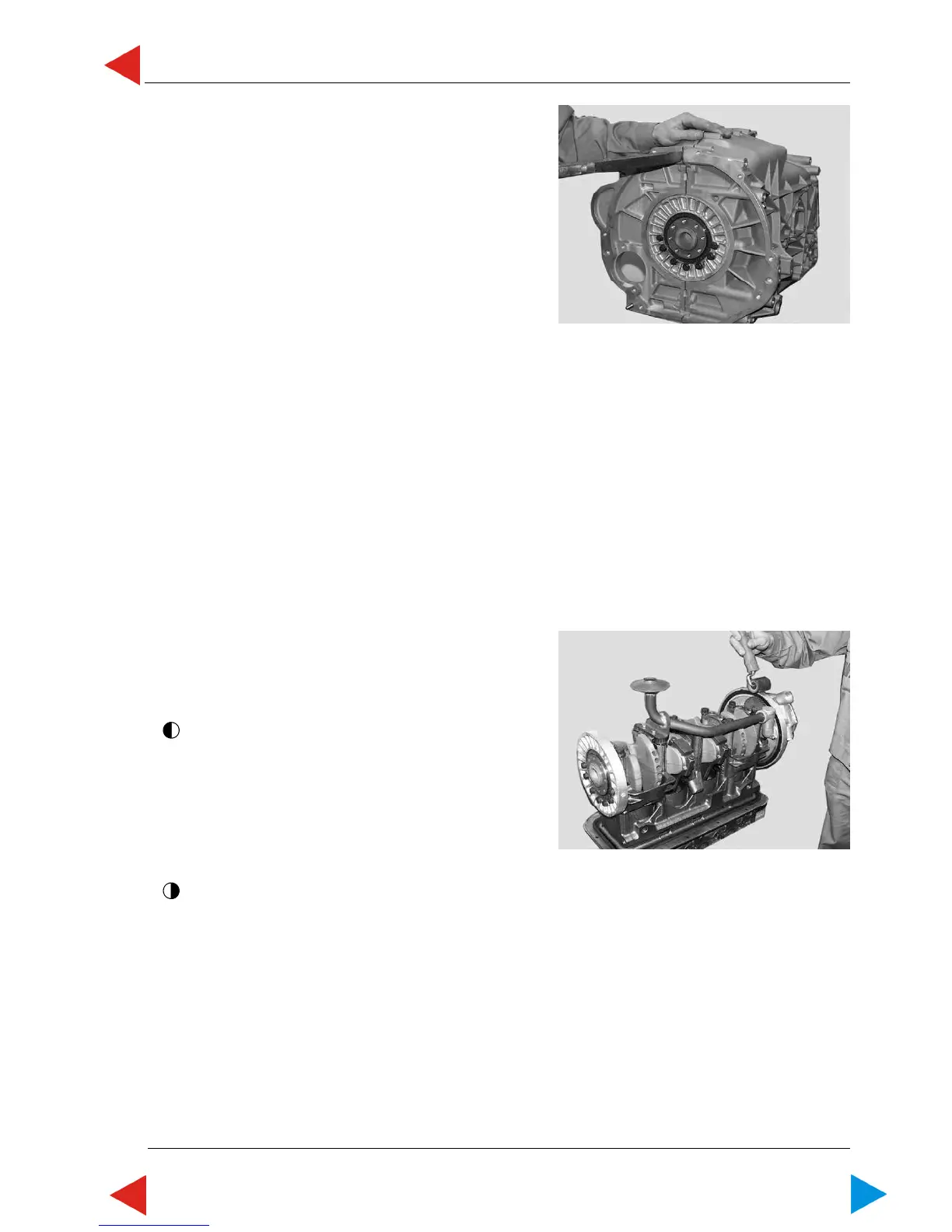

06.01 ill.18
06.01 ill.20
22 Force apart housing halfs and remove.
Assembly
1 Check membrans of frame sealing for damage,
replace if necessary.
2 Clean and degrease all sealing surfaces.
For 4 cyl. engines
3 Wet front and rear ring carrier with construction
adhesive LOCTITE 620, in the area of the parting
plane from the engine housing.
Wet sealing surfaces of screws with surface sealing
agent LOCTITE 509.
For 6 cyl. engines (item 4 - 6)
4 Clean sealing profiles from adhesive residues.
5 Only for engines with rubber frame seal (slot
variant)
Wet sealing profile of frame sealing on both sides
with construction adhesive LOCTITE 262.
6 Wet sealing ring on front ring carrier with surface
sealing agent LOCTITE 5910.
Wet rear ring carrier in the area of the parting plane
from the engine housing with construction adhesive
LOCTITE 620.
