7 First put suction-sides housing half onto dowel pin,
then check for second housing half wether oil suction
pipe and oil suction pipe horn do not collide with the
housing.
8 Screw together the housing halfs.
9 For 4 cyl. engines
ATTENTION:Tighten 7 hexagon screws (SW17)
(ill.22/pos.2) with a torque of
50 Nm +/-5.
Fasten 11 Allen head screws (SW5)
(ill.22/pos.1) with a torque of 10 Nm
+/-1.
10 For 6 cyl. engines
ATTENTION:Tighten 4 hexagon screws (SW17)
(ill.23/pos.3) with a torque of
50 Nm +/-5.
Then fasten 3 hexagon screws with a
torque of 23 Nm +/-2 (SW13) (ill. 23/
pos.2) and at last 13 Allen head screws
with a torque of 10 Nm +/-1(SW5)
(ill.23/pos.1).
11 For engines with screwed frame seal (alu support)
Screw together frame sealing with housing halfs.
Tighten with a torque of 5,5 Nm +/-0,5.

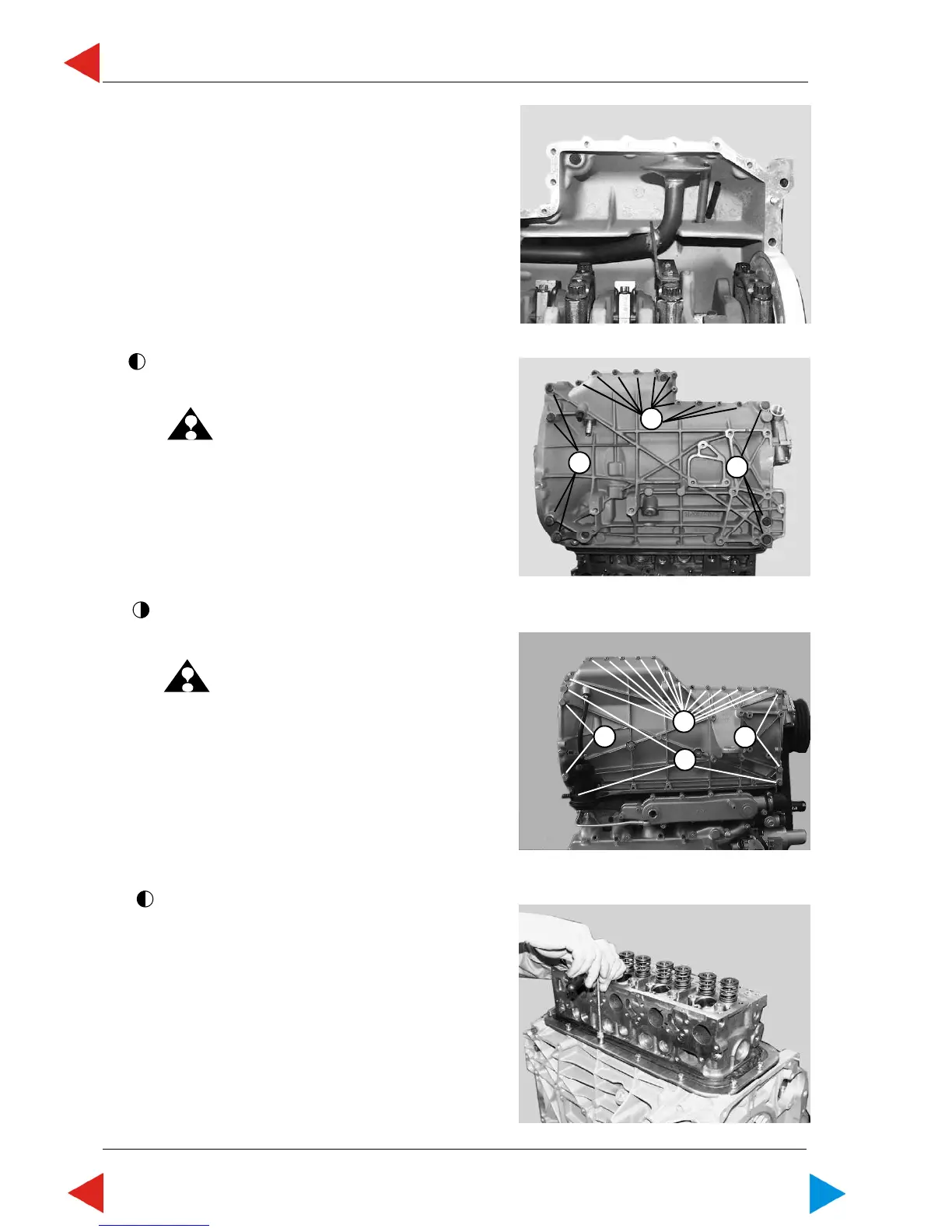

06.01 ill.22
06.01 ill.23
06.01 ill.24
06.01 ill.21
1
2
2
3
1
3
2
