11 For 6 cyl. engines only
 Loosen2hexagonscrewsonangeofoilfeedline.
12
For 4 cyl. engines only
Loosen hose clamps of hose connection turbochar-
ger-intercooler (ill.6/pos.1) and remove hose.
For 6 cyl. engines only (item 13-17)
13 Loosen support screw (ill.7/pos.1) for raw-water pipe.
14 Remove covering (ill.7/pos.3) to intercooler by loo-
sening 5 hexagon screws (SW10) (ill.7/pos.2).
15 Loosen hose clamp (ill.8/pos.1) connection compres-
sion housing.
16 Loosen 2 hexagon screws (ill.8/pos.2) and remove
connecting bend.
17 Loosen hollow screw (ill.8/pos.3) of cooling system
- vent pipe (SW14) . Remove pipe.

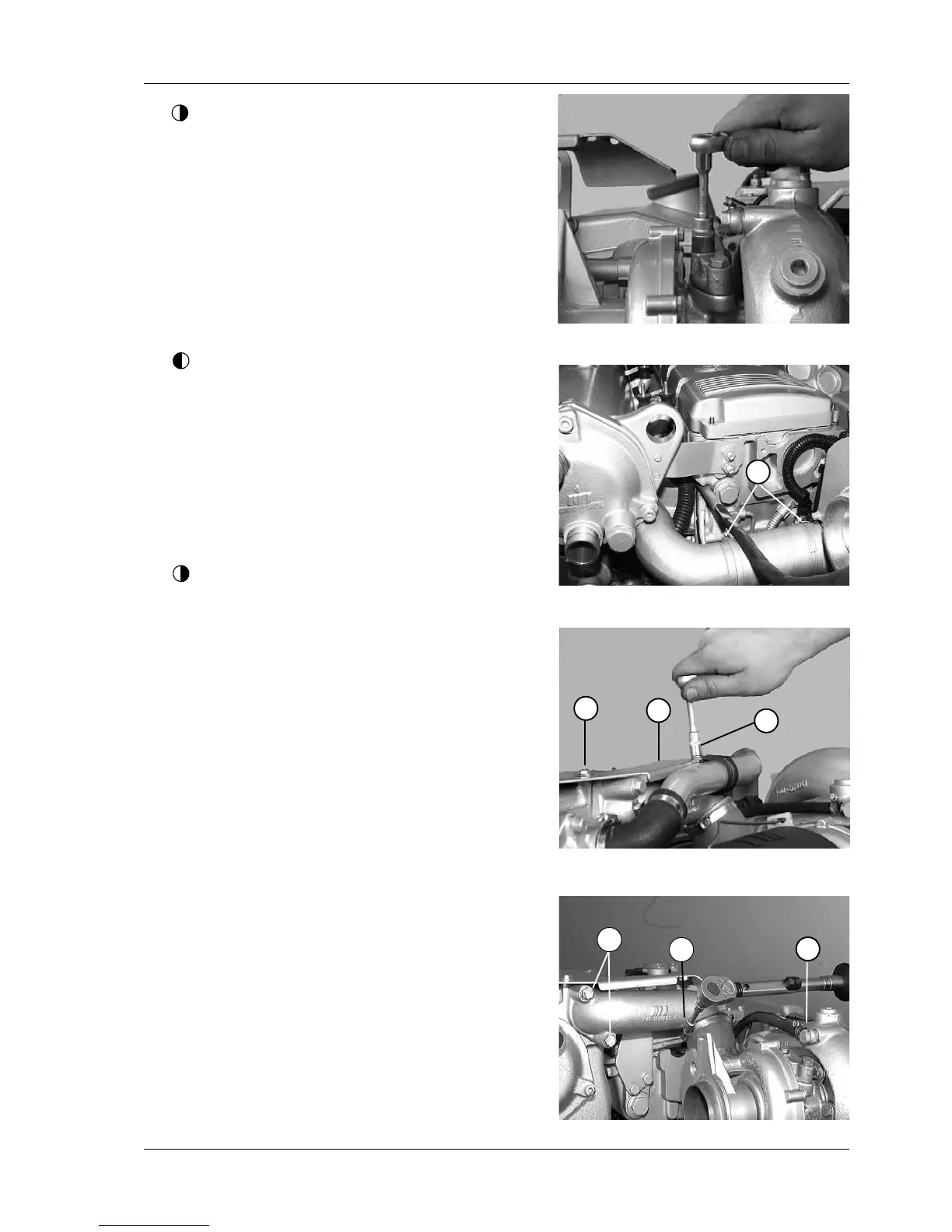

05.01 ill.7
05.01 ill.8
05.01 ill.5
05.01 ill.6
C
1
C
2
1
1
2
3
3
