18 Loosen hose clamp (ill.9/pos.1) of hose of oil sepa-
rator and remove hose.
19 Loosen 4 hexagon nuts (ill.10+11/pos.1) of turbochar-
gerange.Removeturbochargerandseal,dispose
seal. (if seal is used)
Assembly:
ATTENTION: Check hose connection and hose
between turbocharger return pipe
and engine housing intake for crack
and damage. Replace, if necessary.
For 4 cyl. engines only Cleansealingsurfaceofangeturbochargerandexhaustmanifold
and lubricate with grease Z012222/0.
For 6 cyl. engines only: Clean sealing surfaces of flange turbo charger and exhaust
    manifold.Replaceangeseal.
Further assembly is done in reverse order.
ATTENTION: Tigthen the two spring-clamps of hose turbocharger - intercooler with a torque of
3,5 Nm.Don´tstrip!

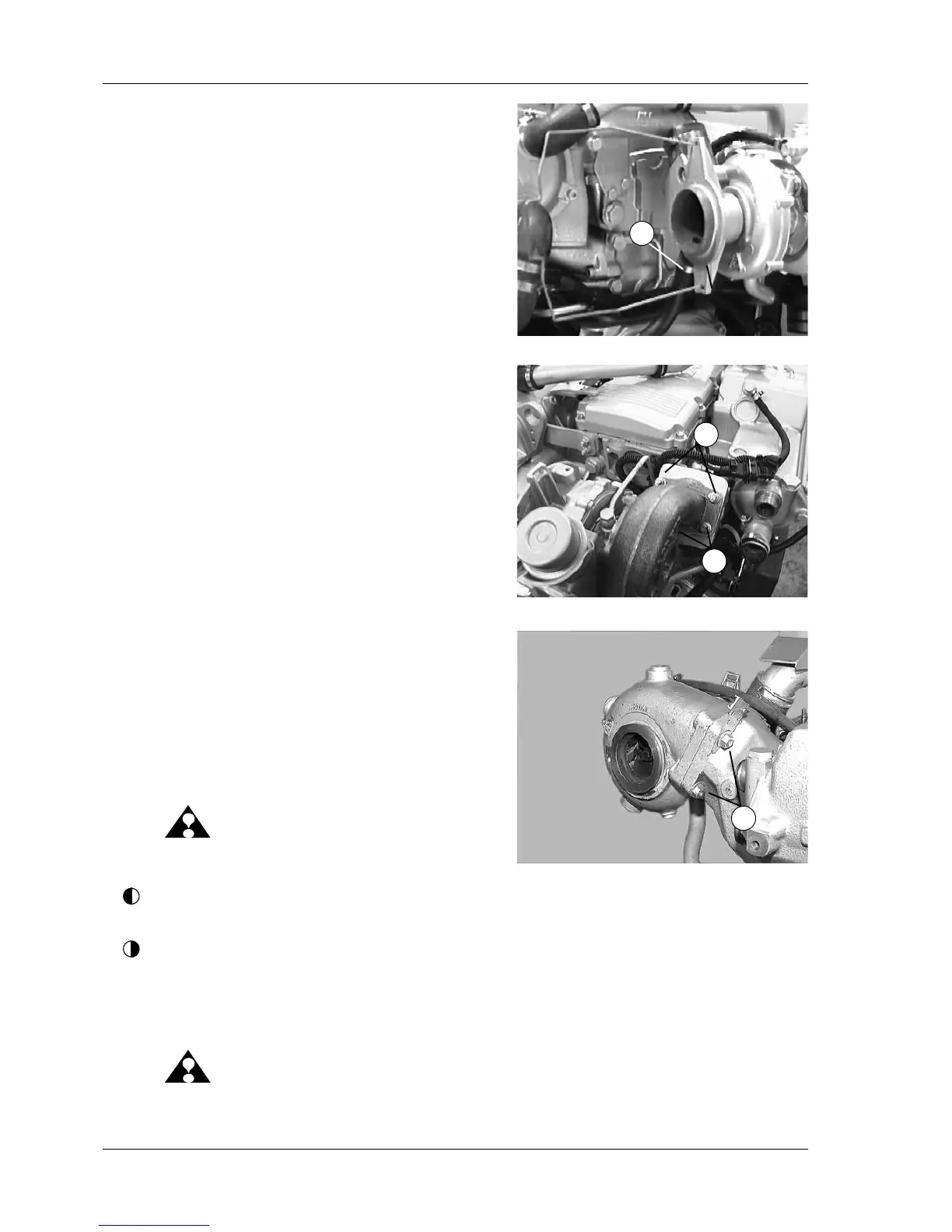

05.01 ill.9
05.01 ill.10
1
05.01 ill.11
1
1
1
