115MS 362, MS 362 C

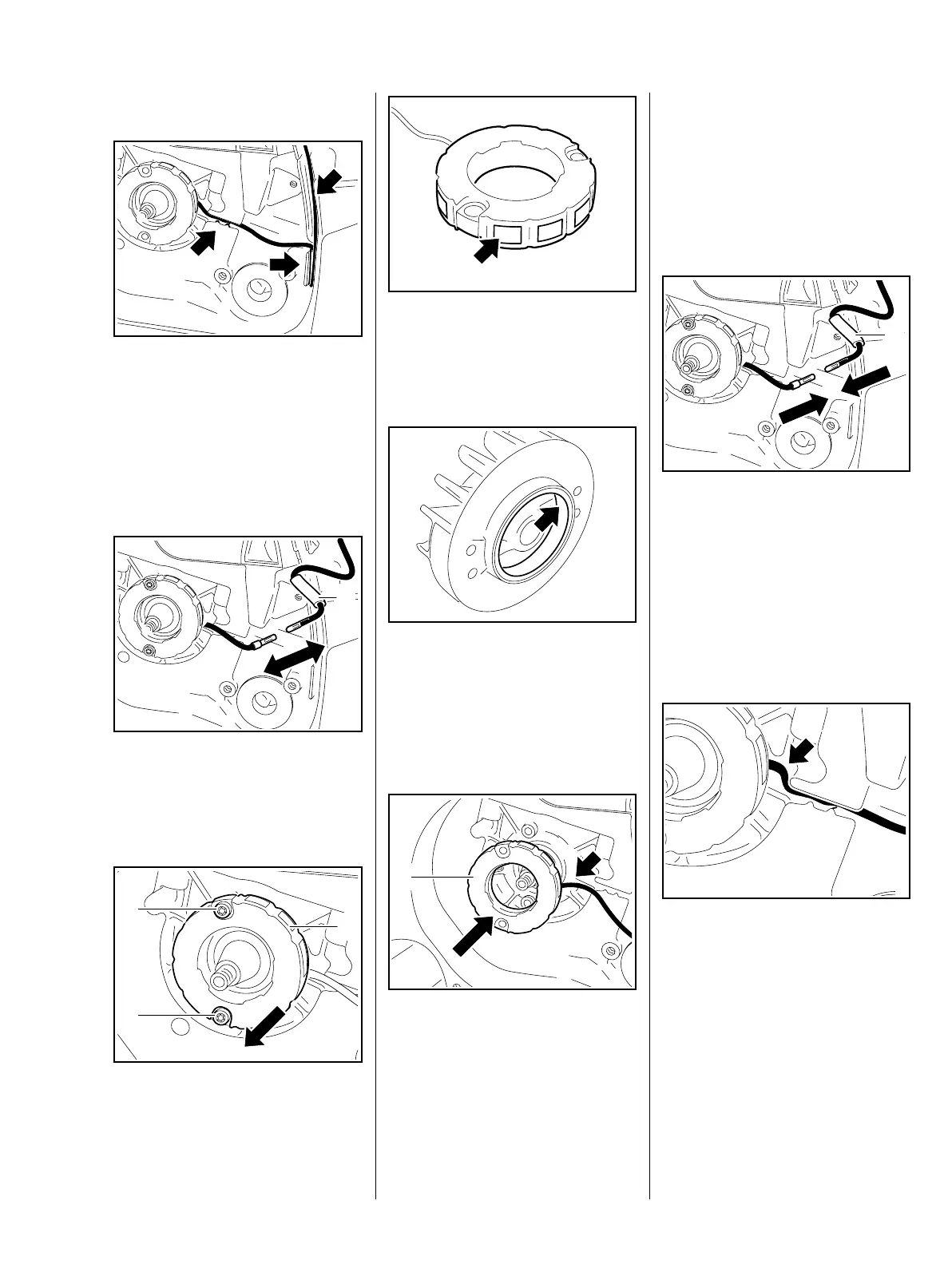

13.7 Generator
– Remove the ignition module,
b 7.3
– Remove the flywheel, b 7.6
: Pull the connector and wire out of
the guides (arrows).
: Push back the insulating tube (1)
in the direction of the wiring
harness and separate the pin and
socket connector.
: Take out the screws (1).
: Remove the generator (2).
0001RA157 TG0001RA446 TG
1
0001RA447 TG
1
2
1
: Inspect the generator and poles
(arrow) for cracks or other
damage. If damage is found,
replace the generator.
: Inspect the magnet ring (arrow) in
the flywheel for cracks or other
damage. If damage is found,
replace the flywheel.
Installing
: Position the generator (1) with
the wire (arrow) facing the
crankcase.
– Use threadlocking adhesive,
b 15.
0001RA448 TG0001RA449 TG0001RA450 TG
1
– Insert the screws and tighten
them down firmly.
– Check that the generator is
properly seated.
– Tightening torques, b 2.5
: Reconnect the pin and socket
connector.
– Push the insulating tube (1) over
the connector.
To reduce the risk of a short circuit,
make sure the insulating tube
completely covers the connector.
: Position the generator wire at the
bottom of the recess (arrow).
0001RA451 TG
1
0001RA453 TG
