1.3 Weights
kg (lbs) KUE*R* KUE*1* KUE*2* KUE*3* KUE*4*
empty 1,6 (3.5) 2 (4.4) 3,3 (7.2) 3,9 (8.6) 7,2 (15.8)
packed 2,4 (5.2) 2,8 (6.2) 4,1 (9.0) 4,7 (10.4) 8,9 (19.6)
installed 4,1 (9.0) 5,9 (13.0) 9,3 (20.5) 14,2 (31.3) 39 (85.9)
Tab. 1.j
Cylinders for KUE 3-phase 460 Vac
kg/h (lib/h) 75/350 µS/cm 350/750 µS/cm 750/1250 µS/cm
3 (6.6) BL0T1B00H1/2 BL0T1D00H1/2
5, 8 (11, 17) BL0T2C00H0/2 BL0T2D00H0/2
10, 15, 18
(22, 33, 40)
BL0T3C00H0/2 BL0T3D00H0/2
25 (55) BL0T4D00H0/2
35 (77) BL0T4C00H0/2 BL0T4D00H0/2
45 (100) BL0T4C00H0/2 BL0T4D00H0/2
Tab. 1.i
Cylinders for KUE 3-phase 400 Vac (from 380 to 415 V)
kg/h (lib/h) 75/350 µS/cm 350/750 µS/cm 750/1250 µS/cm
3 (6.6) BL0T1A00H1/2 BL0T1C00H1/2 BL0T1D00H1/2
5, 8 (11, 17) BL0T2B00H0/2 BL0T2C00H0/2 BL0T2D00H0/2
10, 15, 18
(22, 33, 40)
BL0T3B00H0/2 BL0T3C00H0/2 BL0T3D00H0/2
25, 35 (55, 77) BL0T4C00H0/2 BL0T4D00H0/2
45 (100) BL0T4B00H0/2 BL0T4C00H0/2
Tab. 1.g
Cylinders for KUE 3-phase 575 Vac
kg/h (lib/h) 75/350 µS/cm 350/750 µS/cm 750/1250 µS/cm
3 (6.6) non disponibile
5, 8 (11, 17) BL0T2C00H0/2 BL0T2D00H0/2
10, 15, 18
(22, 33, 40)
BL0T3C00H0/2 BL0T3D00H0/2
25, 35 (55, 77) BL0T4D00H0/2
45 (100) BL0T4D00H0/2
Tab. 1.h

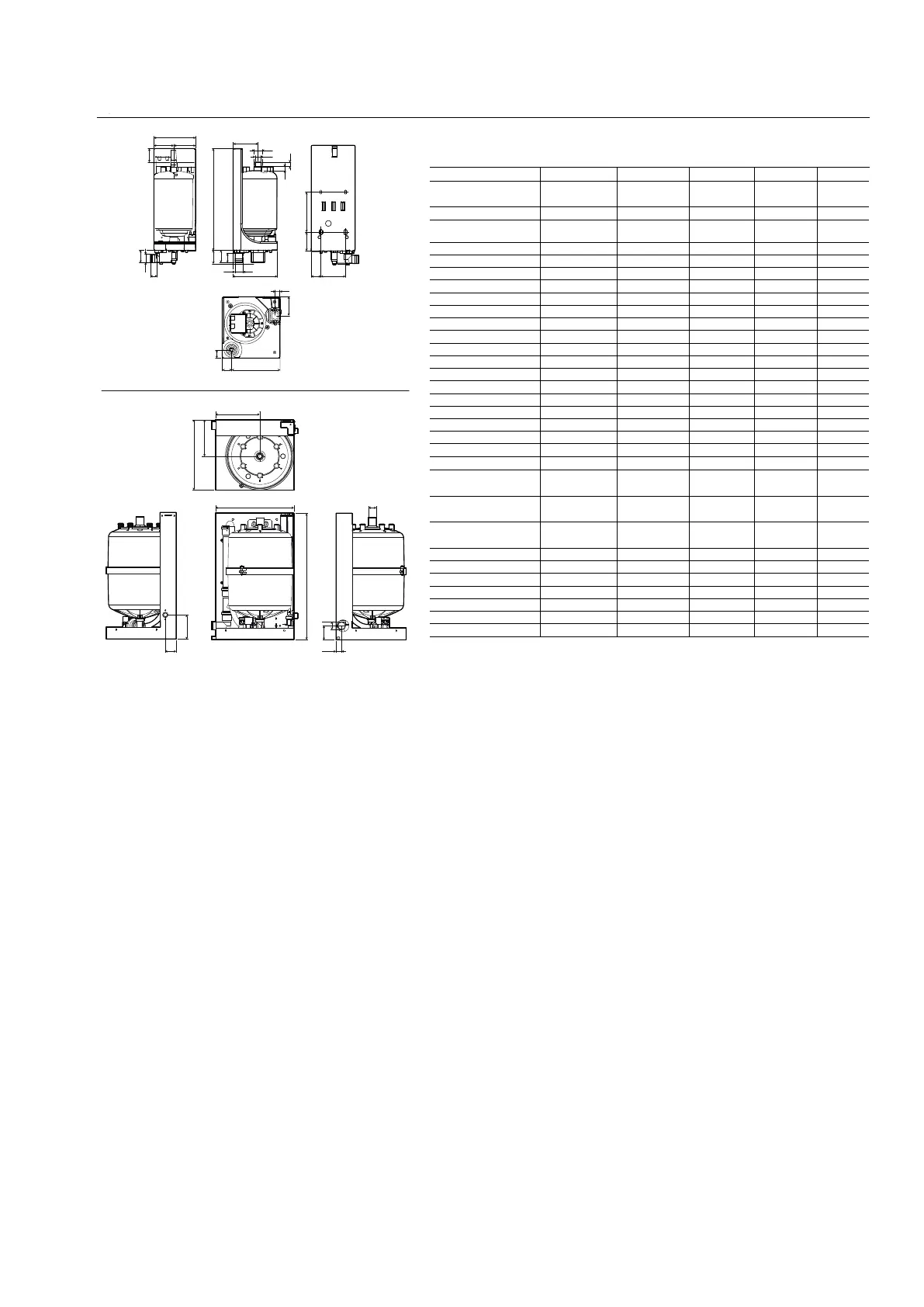

1.4 Dimesions
V1 V2
S4
L
V4
Ø S
S5
KUE
Y
Y1
X1 X
V3
H
P
V5
V5
H1
Ø V
Ø V
S5
S4
Ø S
A1
A2
S1
S3
S2
KUE*4*
KUE*R/1/2/3*
V3
V1
P
L
H
S2
Ø S
S1
A1
A2
Ø V
mm (‘‘) KUE*R* KUE*1* KUE*2* KUE*3* KUE*4*
H 300 (11.8) 390 (15.3) 412 (16.2) 511 (20.1) 630 (24.8)
H1 52(2.0)/
54(2.1)
52(2.0)/
54(2.1)
52(2.0)/
54(2.1)
52(2.0)/
54(2.1)
L without cylinder 160 (6.6) 160 (6.6) 185 (7.3) 225 (8.8) 390 (15.3)
L with cylinder
(1)
160 (6.6) 160 (6.6) 204 (8.0) 260 (10.2)
P without cylinder 170 (6.7) 170 (6.7) 220 (8.6) 230 (9.0) 350 (13.7)
P with cylinder
(1)
175 (6.8) 175 (6.8) 230 (9.0) 268 (10.5)
ØV 23-30 (0.9- 1.2) 23-30 (0.9- 1.2) 31 (1.2) 31 (1.2) 40 (1.57)
ØS 32 (1.2) 32 (1.2) 32 (1.2) 32 (1.2) 40 (1.57)
V1 with pump 76 (3.0) 76 (3.0) 91 (3.6) 111 (4.4) 220 (8.66)
V1 with solenoid valve 81 (3.1) 82 (3.2) 93 (3.7) 113 (4.4)
V2 with pump 84 (3.3) 84 (3.3) 94 (3.7) 114 (4.5)
V2 with solenoid valve 79 (3.1) 78 (3.0) 92 (3.6) 135 (5.3)
V3 96 (7.8) 96 (7.8) 125 (4.9) 133 (5.2) 181 (7.1)
V4 53 (2.1) 53 (2.1) 20 (0.8) 24 (0.9)
V5 16-17 (0.6-0.7) 16-17 (0.6-0.7) 37 (1.4) 37 (1.4)
S1 with pump 26 (1.0) 26 (1.0) 41 (1.6) 61 (2.4) 28 (1.1)
S1 with solenoid valve 45 (1.7) 46 (1.8) 54 (2.1) 77 (3.0)
S2 with pump 134 (5.2) 134 (5.2) 144 (5.7) 164 (6.4) 70 (2.7)
S2 with solenoid valve 114 (4.4) 114 (4.4) 131 (5.1) 148 (5.8)
S3 with pump 23 (0.9) 23 (0.9) 52 (2.0) 60 (2.4)
S3 with solenoid valve 110 (4.3) 110 (4.3) 120 (4.7) 118 (4.6)
S4 with pump 48 (1.9) 48 (1.9) 48 (1.9) 48 (1.9)
S4 with solenoid valve 40-50
(1.5-1.9)
40-50
(1.5-1.9)
40-50
(1.5-1.9)
40-50
(1.5-1.9)
S5 with pump 26-36
(1.0- 1.4)
26-36
(1.0- 1.4)
26-36
(1.0- 1.4)
26-36
(1.0- 1.4)
S5 with solenoid valve 13-15-30
(0.5-0.6-1.1)
13-15-30
(0.5-0.6-1.1)
13-15-30
(0.5-0.6-1.1)
13-15-30
(0.5-0.6-1.1)
A1 with pump 13 (0.5) (0.5-0.6-1.1) 13 (0.5) 13 (0.5) 55 (2.1)
A1 with solenoid valve 19.5 (0.7) 19.5 (0.7) 19.5 (0.7) 19.5 (0.7)
A2 53 (2.0) 53 (2.0) 53 (2.0) 53 (2.0) 120 (4.7)
X 35 (1.4) 35 (1.4) 48 (1.9) 68 (2.8) 90 (3.5)
X1 90 (3.5) 90 (3.5) 90 (3.5) 90 (3.5) 210 (8.2)
Y 146 (5.7) 146 (5.7) 213 (8.4) 288 (11.3) 494 (19.4)
Y1 68 (2.8) 68 (2.8) 68 (2.8) 68 (2.8) 106 (4.1)
(1)
Maximum dimensions with cylinder
Fig. 1.a
