ec tower technical manual
11
ENG
“OEM KUE” +030222130 - rel. 1.3 - 12.03.2015
Steam distribution
9 steam outlet
10 steam distribution hose (diameter 22 mm cod. CAREL 1312360AXX,
diameter 30 mm cod. CAREL 131265AXX)
11 steam condensate hose (diameter 7 mm cod. CAREL cod. CAREL
1312353APG, diameter 10 mm cod. CAREL cod. CAREL 13123683AXX)
Water ll
12 manual valve (not supplied)
13 mechanical filter (CAREL code MCC05PP005+MCFILWAT05)
14 supply hose (not supplied)
15 connection hose CAREL (cod. FWH3415003, or cod. FWHDCV003 with
double non-return valve)
Water drain
16 drain hose with siphon (not supplied)
Kit included
17 straight connection hose ØS = 32 mm (1.2’) e 90° ØS = 32 mm (1.2’)
18 connectors for electrodes 2a e 3a
Tab. 3.b
KUE*R*/ KUE*1*:
23/30 mm (0.9/1.2’’)
KUE*2*/ KUE*3* :
30 mm (1.2’’)
ØV
or
>20°
R ≥ 300 mm
Kit incluso
ØS
32 mm (1.2 “)
>5°
D> 250mm(9.8’’)
>5°
max 4 m(13.1ft) T ≅ 100°C/212°F
min 0.5 m (1.6ft)
T ≅ 100 °C/ 212 °F
>5°
G 3/4’’ M
0,1-0,8 MPa
T max 50°C/122 °F
4
6
10
16 7 15 14 13 12
1
17
18
5
11
5a
5b
5c
or
3b
3c
3a
3
2
2a
9
8

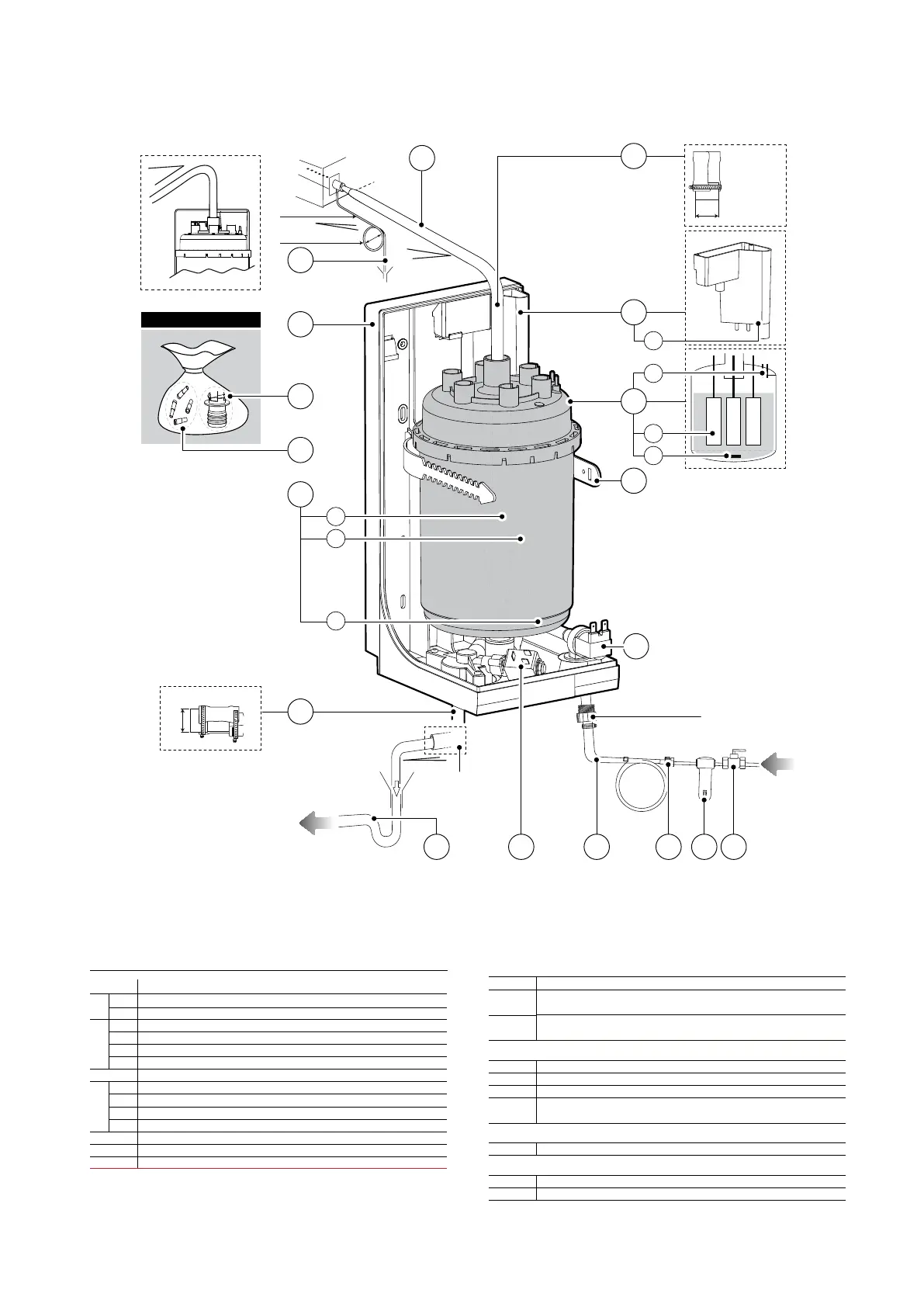

Fig. 3.b
3.2 Kit KUE with ll solenoid valve
components
1 chassis
2 fill tank
2a conductivity electrodes
3 cylinder
3a high level electrodes
3b immersed electrodes
3c filter inside the cylinder
4 cylinder fastening strap
5 hose kit
5a overflow outlet hose
5b fill cylinder hose
5c fill tank hose
6 fill solenoid valve
7 fill/drain group
8 drain connection (supplied)
2. Components of the KUE kit with blowdown valve
2.1
