9-8 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

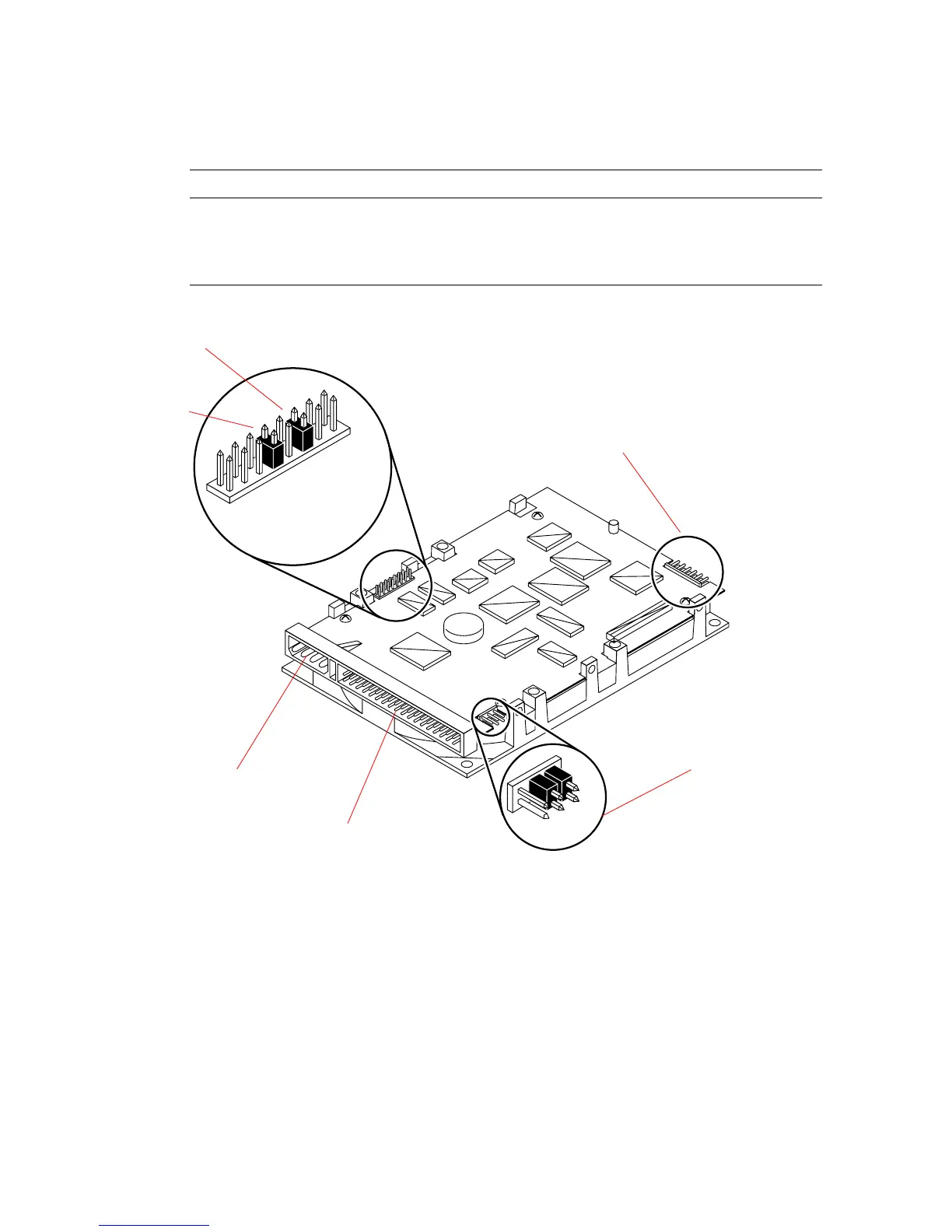

FIGURE 9-6 Jumper Settings for Seagate 535-Mbyte Drive
E4 Wait spin disabled No
E5 Disk power termination Yes
E6 SCSI bus power termination No
TABLE 9-1 535-Mbyte Conner Drive Configuration Jumpers (Continued)
Pin Pair Description Factory Set
TP
SS
PE
WP
ME
DS
RS
TP
A1
A0
A2
Power
Data connector
connector
SCSI address 3
(A0 and A1 jumpered)
Manufacturing header pins
Motor enabled
Parity disabled
(ME jumpered)
(PE jumpered)
