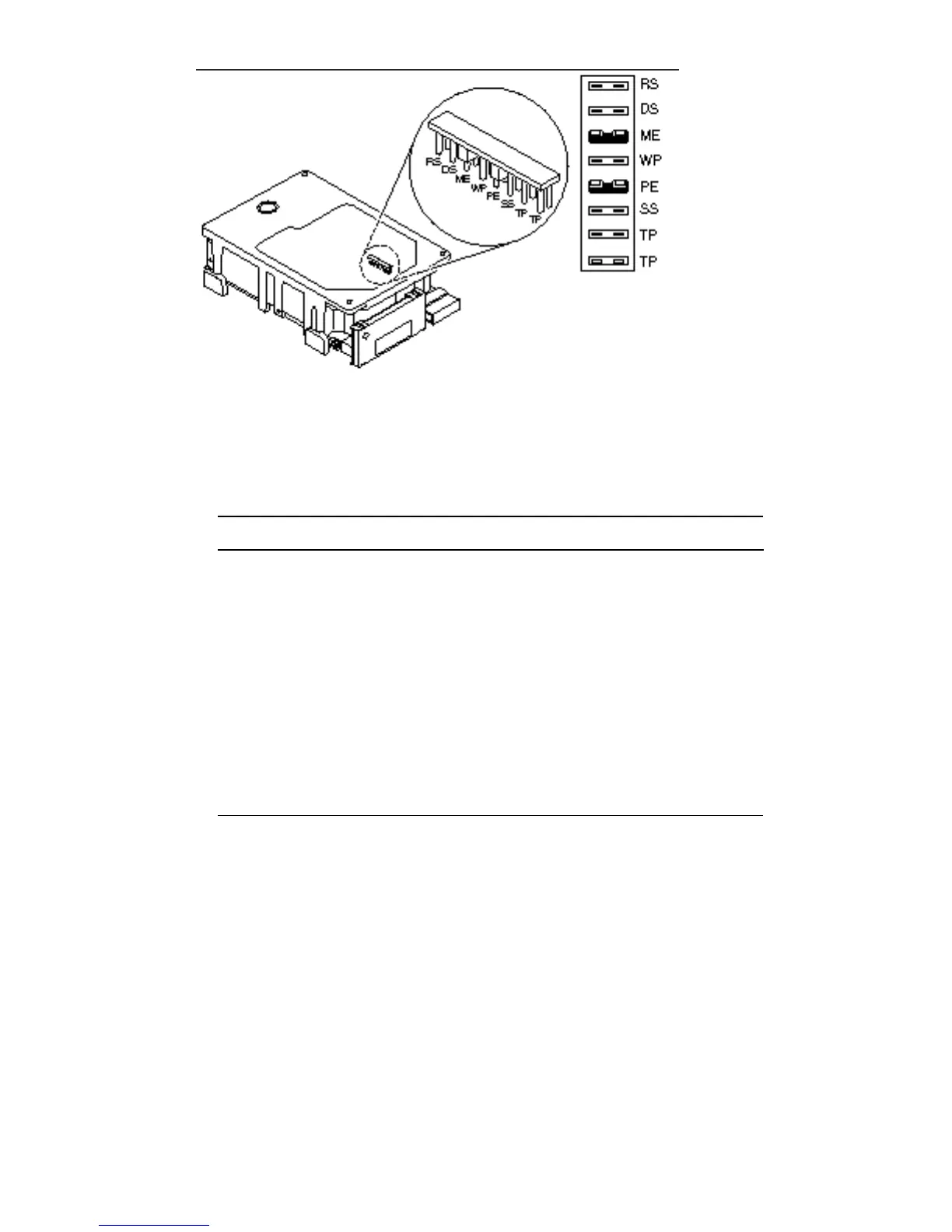

Figure 12–8 Configuration Jumper Settings for Both Disk Drives
TABLE 12–3 Configuration Jumper Acronym Definitions
Acronym Definition
RS Reserved
DS Delayed Start
ME Motor Enable (Remote Spin-up)
WP Write Protect
PE Parity Enable
SS Reserved
TP Term Power from Drive
TP Term Power to SCSI Bus
4. Remove the drive grommets from the defective drive.
128
SPARCstation 10 Service Manual ♦ Revision A, July 1993
