Sun Microsystems SPARCstation 10 - Page 149

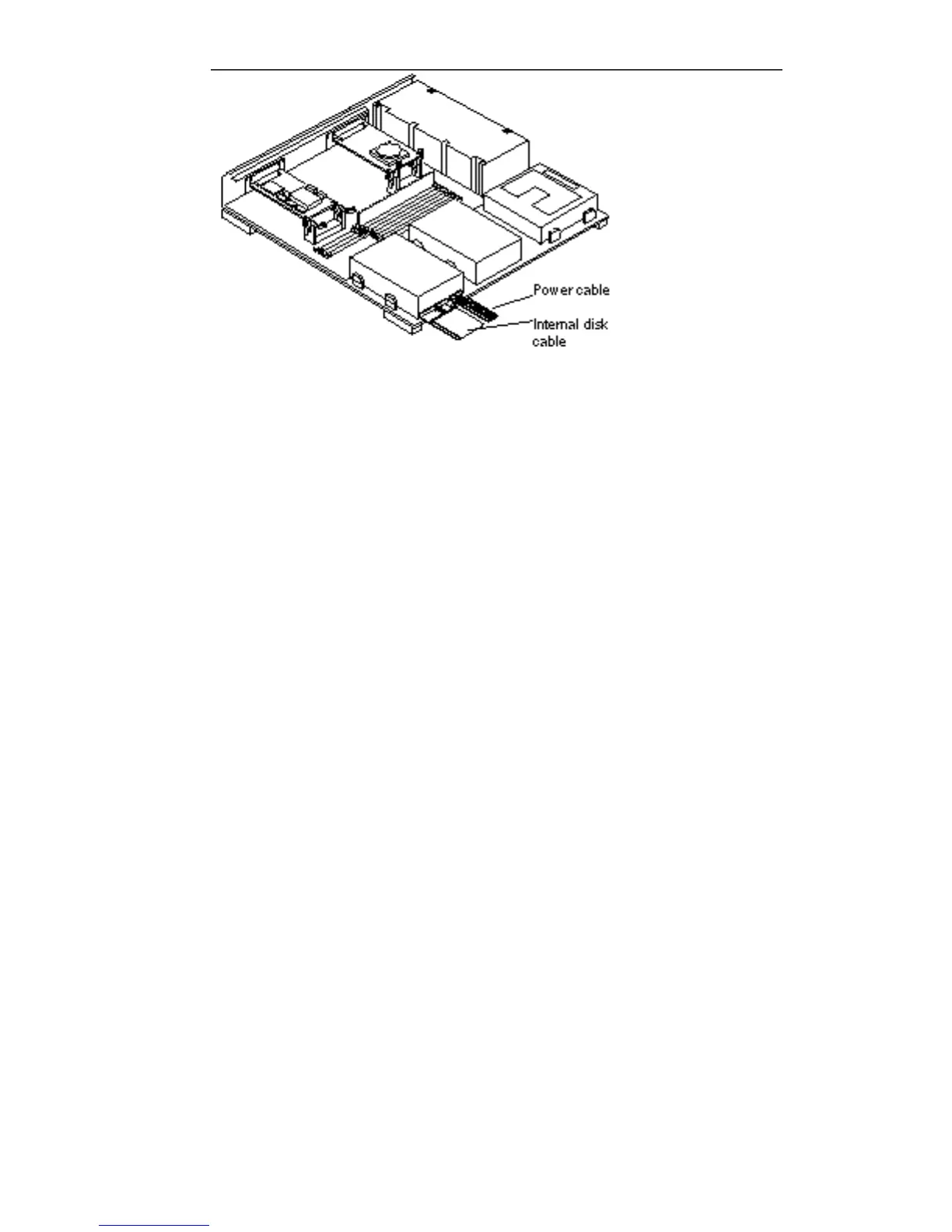

Figure 12–13 Connecting the Internal Disk and Power Cables to Drive 1
17. Lower the drive into the chassis, press the four drive grommets into the drive
mounts. Firmly seat the grommets by moving the drive forward toward the
front of the chassis until the grommets sit tightly in the drive mounts.
See Figure 12–14.
Hard Disk Drives 133
