Sun Microsystems Ultra 25 - FIGURE C-2 Sun Ultra 45 Workstation System Diagram; System Block Diagram

Appendix C Functional Description C-3
C.1.2 System Block Diagram

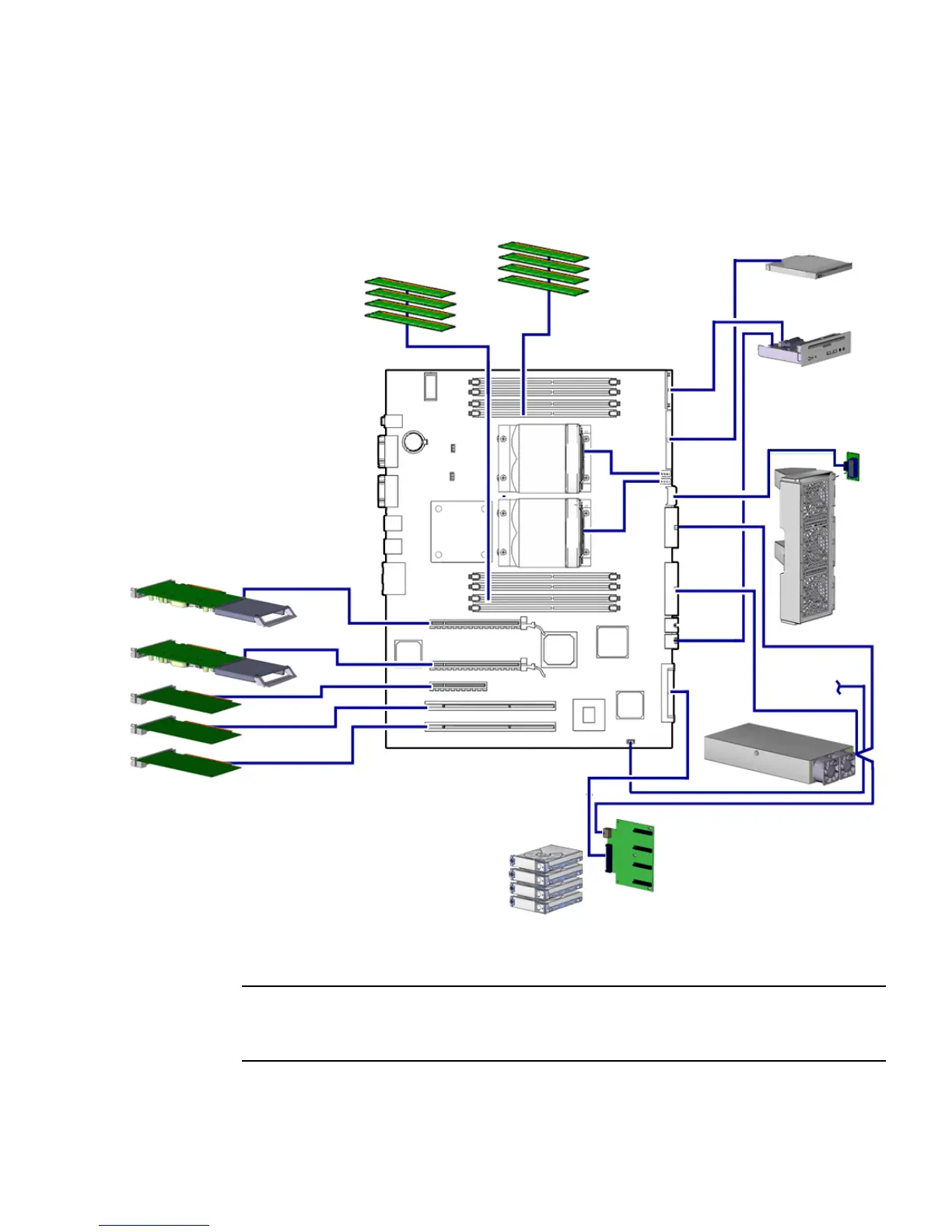

FIGURE C-2 shows the Sun Ultra 45 workstation system diagram.
FIGURE C-2 Sun Ultra 45 Workstation System Diagram
Note – The Sun Ultra 25 workstation motherboard has one CPU (CPU0) and one
bank of four DIMM slots. Other aspects of the Sun Ultra 25 are the same as the Sun
Ultra 45 workstation.
